MM-400A
11. Timing Chart
11-4

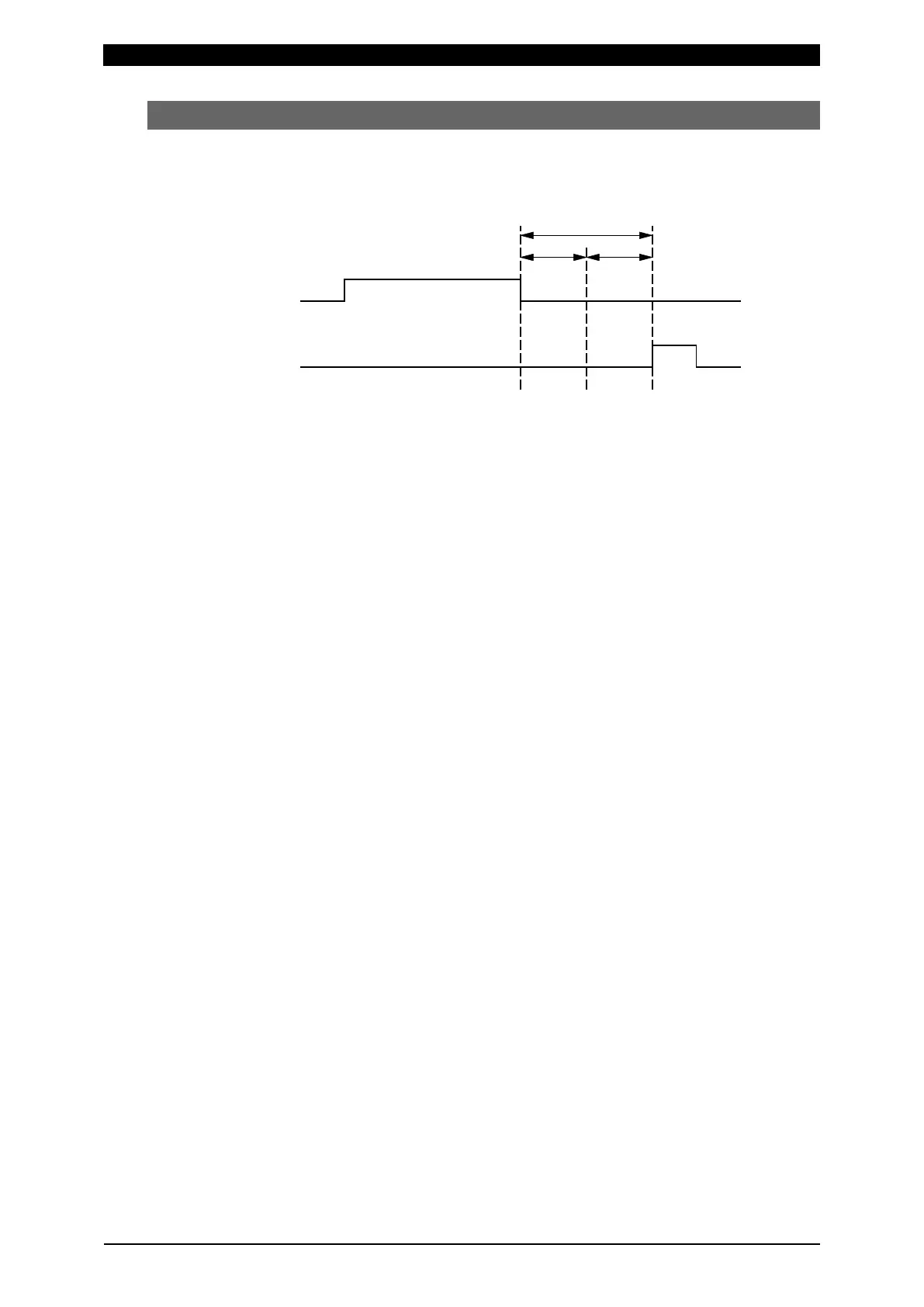

(3) Internal Processing Time
When TIME is changed from the initial setting and CYC-AC, ms-DC, CYC-DC, or
ms-AC is selected (refer to Chapter 8, “l-1. BASIC SETUP (1) Screen), the judgment
result is output after the measurement operation.
*3
*2
*1
*4
Welding current
Judgment output
*1: Internal processing time
*2: End judgment time
Time set for the cooling time (Refer to Chapter 8, “l-2. BASIC SETUP (2)
Screen.”)
*3: Calculation time
30 ms
*4: Judgment output
Output to the output terminal set for OUTPUT 1 to 12 in the EXT
INPUT/OUTPUT (2) and (3) screens. (Refer to Chapter 8, “o-2. EXT
INPUT/OUTPUT (2) (3) Screen.”)
The above example is when the judgment result is normal and GOOD is set.
To Next Page
