Amada WELD CHECKER MM-400A - (4) Judgment Output

MM-400A
11. Timing Chart
11-5

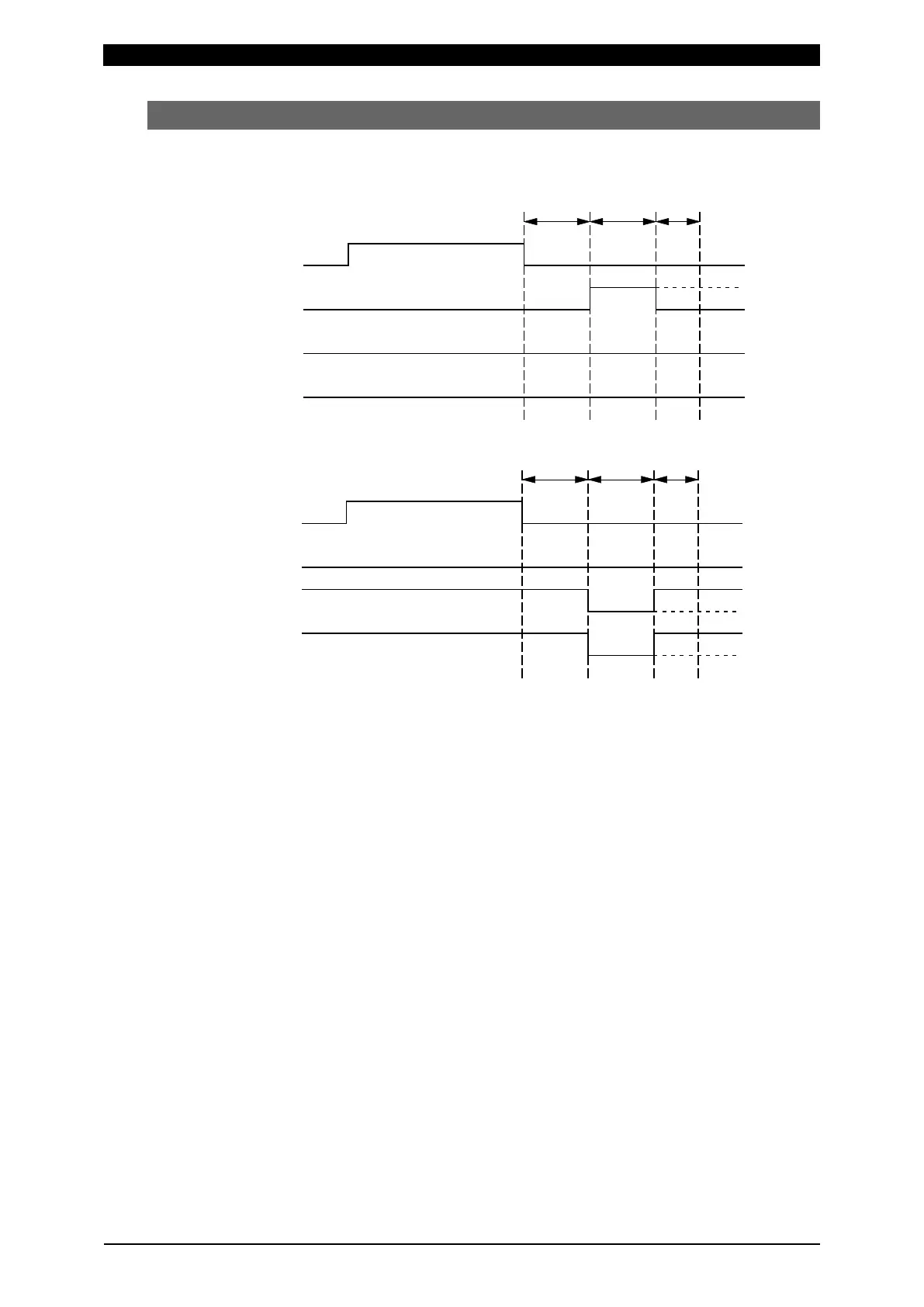

(4) Judgment Output
The judgment result is output after the measurement operation.
*
1
*
2
*
3
*4
*
4
*5
*4 *5
Within the upper/lower limit judgment
NG
GOOD
CURR NG
Measurement operation
(output)
(output)
(output)
*1 *2 *3
*4
*4 *5
*4 *5
Outside the upper/lower limit judgment
CURR NG
NG
GOOD
(output)
(output)
(output)
Measurement operation
*1: Internal processing time
(Refer to “(3) Internal Processing Time.”)
*2: Judgment output time
Output for the time set for OUTPUT TIME in the EXT INPUT/OUTPUT (4)
screen. (Refer to Chapter 8, “o-3. EXT INPUT/OUTPUT (4) Screen.”)
The output is held for 10 ms in “10ms”, 100 ms in “100ms”, and until the next
measurement is performed or until the error reset of the external input is closed
in “HOLD.”
*3: Next measurement preparation time
When “ms-***” is selected for TIME in the BASIC SETUP (1) screen, at least 2
ms required.
When “CYC-***” is selected for TIME, at least 5 ms is required.
To check that the measurement signal set as trigger is not input, the longer time
is required when it is input.
*4: judgment item
Output to the output terminal set for OUTPUT 1 to 12 in the EXT
INPUT/OUTPUT (2) and (3) screens. (Refer to Chapter 8, “o-2. EXT
INPUT/OUTPUT (2) (3) Screen.”)
The above example is when GOOD, CURR NG and NG are set.
*5: Judgment output
Output with the setting for NG OUTPUT MODE in the EXT INPUT/OUTPUT (4)
screen. (Refer to Chapter 8, “o-3. EXT INPUT/OUTPUT (4) Screen.”)
Open at output in NORMALLY CLOSED, and closed at output in NORMALLY
OPEN.
The above example is when NORMALLY CLOSED is set.
