MM-400A

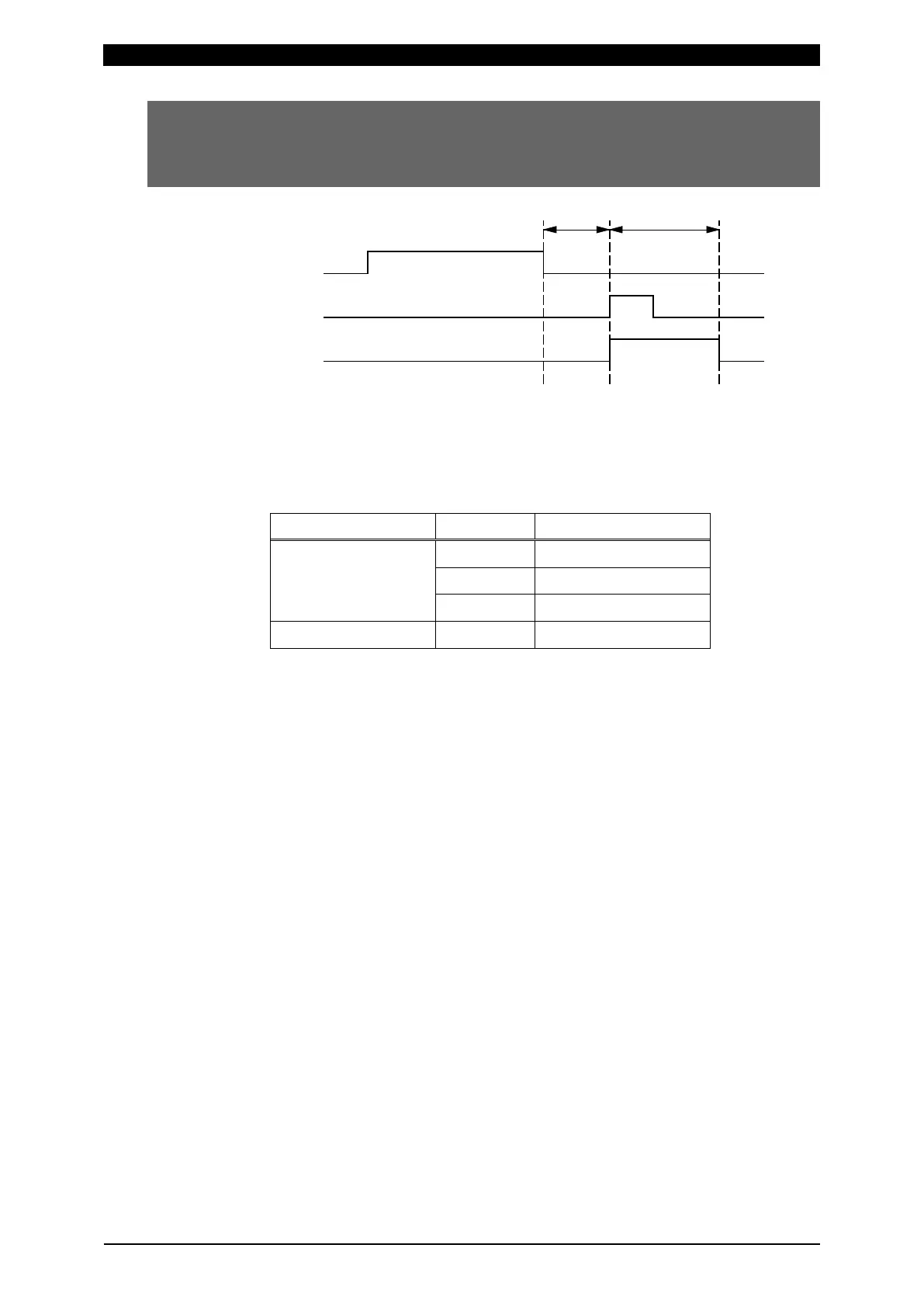

11. Timing Chart
11-6
(5) Single-Directional Communication,
Single-Directional Communication Time of
Measured Value
*1
*2
*3
Measurement operation
Judgment output
Communication output
*1: Internal processing time
(Refer to “(3) Internal Processing Time.”)
*2: Communication time
When MEASUREMENT is selected for ITEM (Refer to Chapter 8, “p-1.
Communication (1) Screen.”)
MODE SPEED Communication time
RS-232C or RS-485
ONE WAY
9600 bps 229 ms
19200 bps 130 ms
38400 bps 81 ms
ETHERNET - 56 ms
(Refer to Chapter 8, “c. VIEW Screen” for MEASUREMENT in the VIEW screen
and “p-2. Communication (2) Screen” for MODE and SPEED.)
*3: Judgment output
Output to the output terminal set for OUTPUT 1 to 12 in the EXT
INPUT/OUTPUT (2) and (3) screens. (Refer to Chapter 8, “o-2. EXT
INPUT/OUTPUT (2) (3) Screen.”)
The above example is when the judgment result is normal and GOOD is set.
