n. SYSTEM SETUP Screen

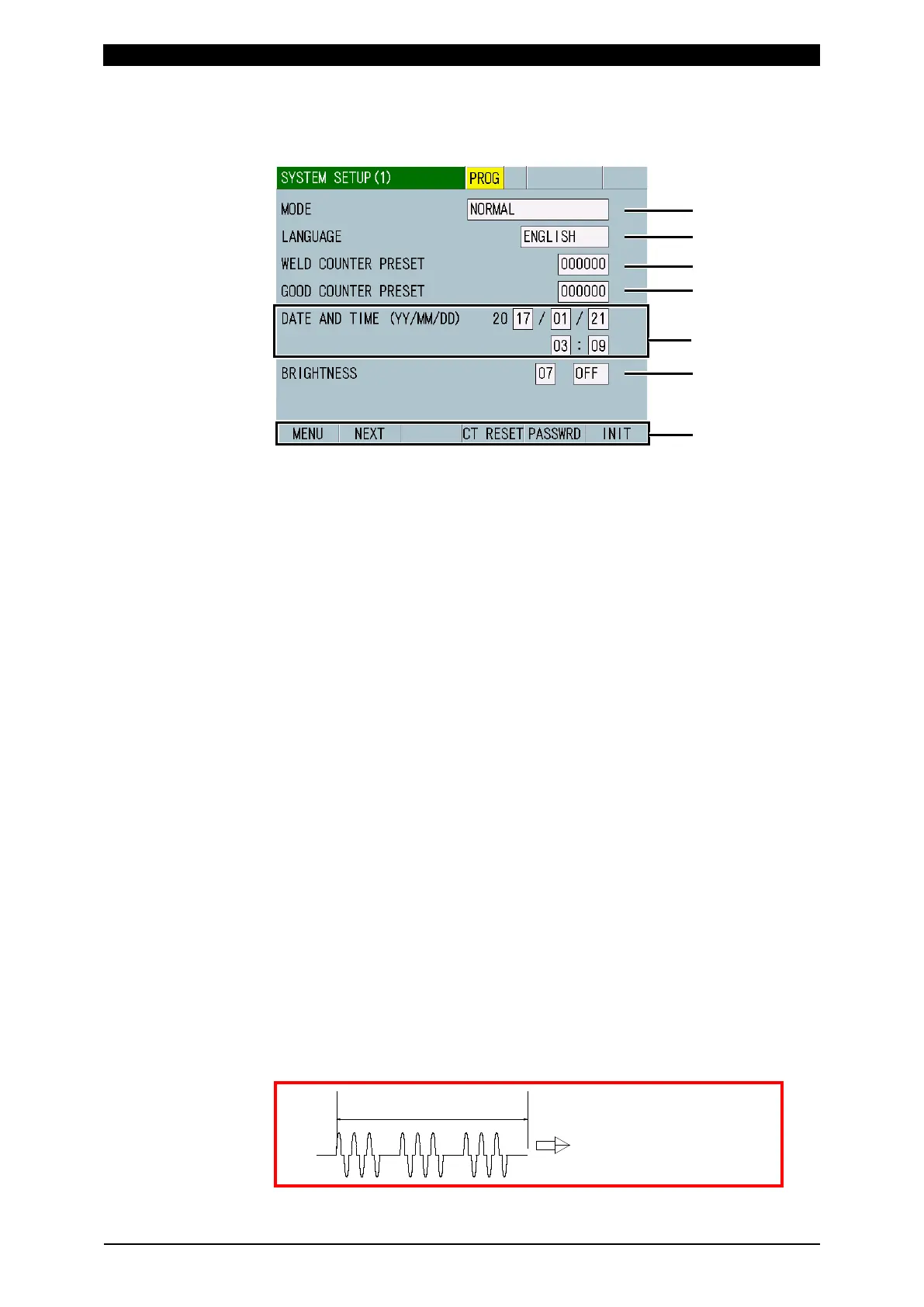

n-1. SYSTEM SETUP (1) Screen
(1) MODE
Select NORMAL, SEAM, NORMAL TRACE, or SINGLE TRACE.
• NORMAL
The instrument performs measurement each time a current signal is input,
showing the measured values and waveforms.
• SEAM
The instrument measures the seam current and voltage for five minutes
maximum.
• NORMAL TRACE
The instrument measures the maximum measurement range of current upon
input of a current signal. After displaying the data on screen, the instrument
goes into wait state until the next current signal is input. The instrument
shows “-” in the measured value field without showing the measured value
and making any OK/NG judgment on the value.
1) Current normal trace mode
The instrument measures the maximum measurement range of current upon
input of a current signal. After displaying the data on screen, the instrument
goes into wait state until the next current signal is input. The instrument shows
“-” in the measured value field without showing the measured value and
making any OK/NG judgment on the value. Only waveforms and all cycles are
measured.
The maximum current measurement range varies as follows depending on the
TIME setting in the BASIC SETUP (1) screen:
CYC-AC: 5,000 ms
CYC***Hz-AC: 4000 ms
ms-AC: 2000 ms
CYC-LONG: 1,000 ms (current only)
CYC-DC: 2,000 ms
ms-DC: 2,000 ms
SHORT ms-DC: 100 ms (current only)
(7)
(6)
(5)
(4)
(3)
(2)
(1)
NORMAL
TRACE
Max. measurement range of current
Wait state until the next
force signal is input after
displaying data on screen
