MM-400A
8. Operation Screens
8-104
2) Force normal trace mode
The instrument measures the maximum force measurement time upon input of
a force signal. After displaying the data on screen, the instrument goes into
wait state until the next force signal is input. The instrument shows “-” in the
measured value field without showing the measured value and making any
OK/NG judgment on the value. Only waveforms and all cycles are measured.
The maximum force measurement range is 10000 ms.
• SINGLE TRACE
The instrument measures the maximum measurement range of current upon
input of a current signal, after which it enters the program mode (PROG).
The instrument shows “-” in the measured value field without showing the
measured value and making any OK/NG judgment on the value.
1) Current single-trace mode
The instrument measures the maximum measurement range of current upon
input of a current signal, after which it enters program mode (PROG). The
instrument shows “-” in the measured value field without showing the
measured value and making any OK/NG judgment on the value. Only
waveforms and all cycles are measured. The maximum force measurement
range is the same as that of normal trace mode.
2) Force single-trace mode
The instrument measures the maximum measurement range of current upon
input of a current signal, after which it enters program mode (PROG). The
maximum force measurement range is 10000 ms.
(2) LANGUAGE
Select a language for on-screen display from among Japanese, English,
Chinese, Korean, French, German and Spanish.

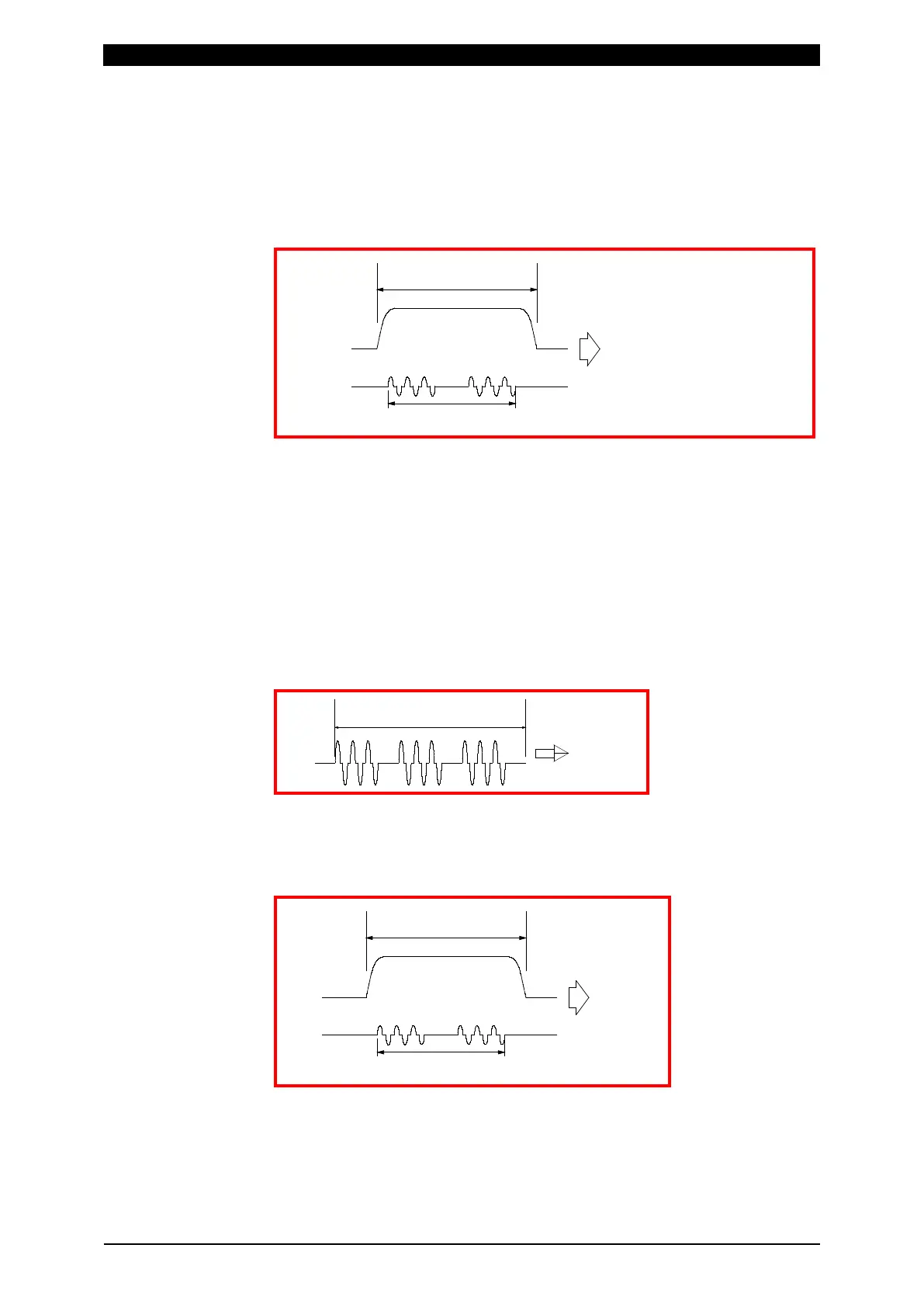

N
ORMAL
TRACE
Force
Current
Max. measurement range of current
Max. measurement range of force
Wait state until the next
force signal is input after
displaying the data on screen
SINGLE
TRACE
PROG mode
Max. measurement range of current
SINGLE
TRACE
PROG mode
Max. measurement range of current
Max. measurement range of force
Force
Current
