p. COMMUNICATION Screen

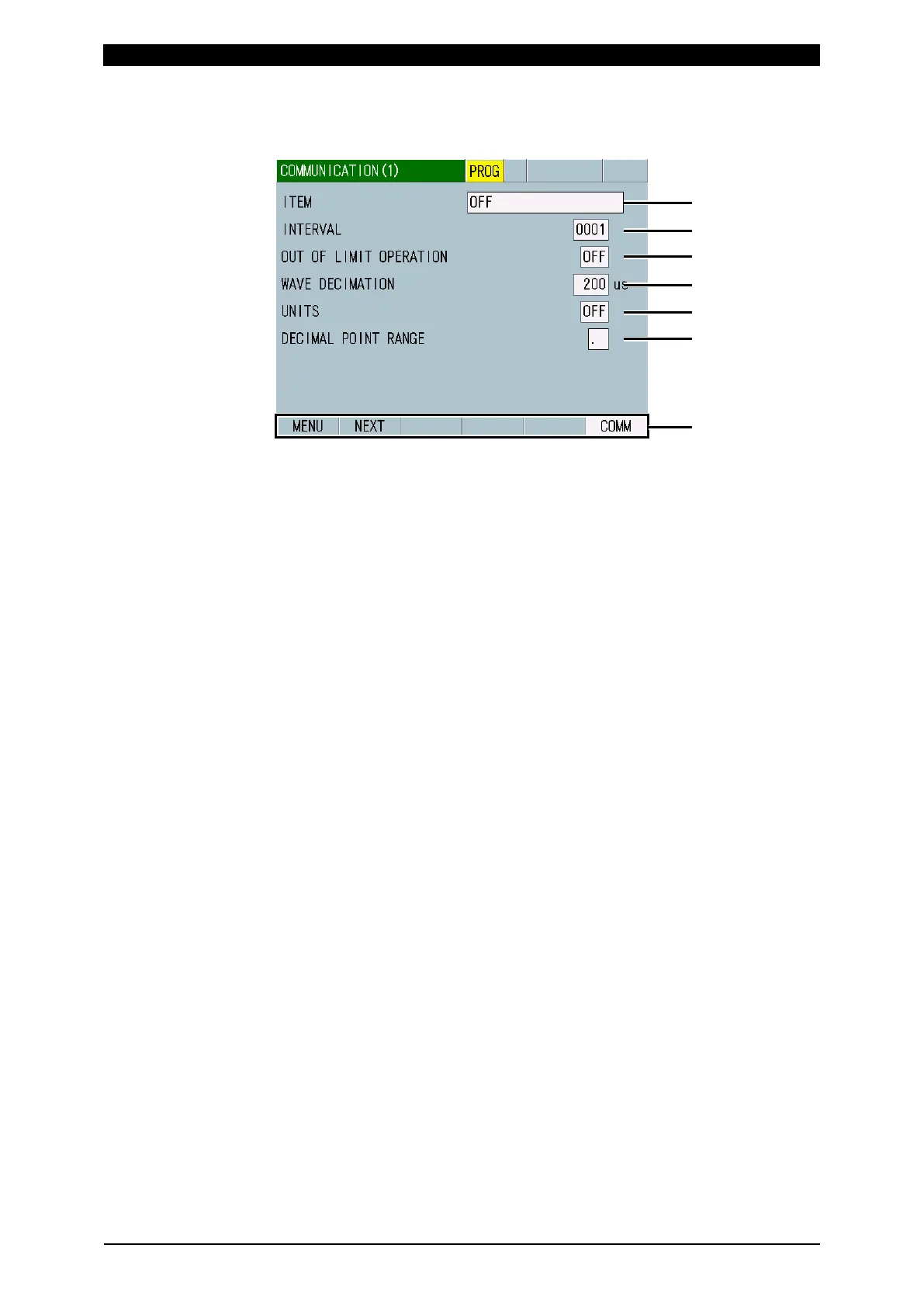

p-1. COMMUNICATION (1) Screen
(1) ITEM
Select an item to output from the following:
• OFF
No communication
• MEASUREMENT
Outputs the measured values of ten items selected in the VIEW screen.
Outputs after the end of measurement or when COMM is touched.
When SEAM is selected for MODE in the SYSTEM SETUP (1) screen, no
communication is made.
• WAVEFORM
Outputs the waveforms of four items selected in the VIEW screen. You can
set waveform decimation for output interval of the waveform sample value.
Note that if you set an interval smaller than the data sampling interval stored
in the instrument, the data will be output at the internally stored interval. You
can select the waveforms to output with waveform ON/OFF in the VIEW
screen. Outputs after the end of measurement or when COMM is touched.
When SEAM is selected for MODE in the SYSTEM SETUP (1) screen, no
communication is made.
• CURR ALL CYCLE
Outputs current all cycles. Outputs after the end of measurement or when
COMM is touched.
When SEAM is selected for MODE in the SYSTEM SETUP (1) screen or
ISO17657 is selected for CALCULATION in the BASIC SETUP (3) screen,
no communication is made.
• FORCE ALL CYCLE
Outputs force all cycles. Outputs after the end of measurement or when
COMM is touched. Available only for the force/displacement-equipped
specification.
When SEAM is selected for MODE in the SYSTEM SETUP (1) screen, no
communication is made.
• HISTORY
Outputs history selected in HISTORY AREA (20**/**/** to 20**/**/**) among
measured values saved in the HISTORY screen. To output, first select this
item, and then touch COMM.
When SEAM is selected for MODE in the SYSTEM SETUP (1) screen, no
communication is made.
