MM-400A
8. Operation Screens
8-56

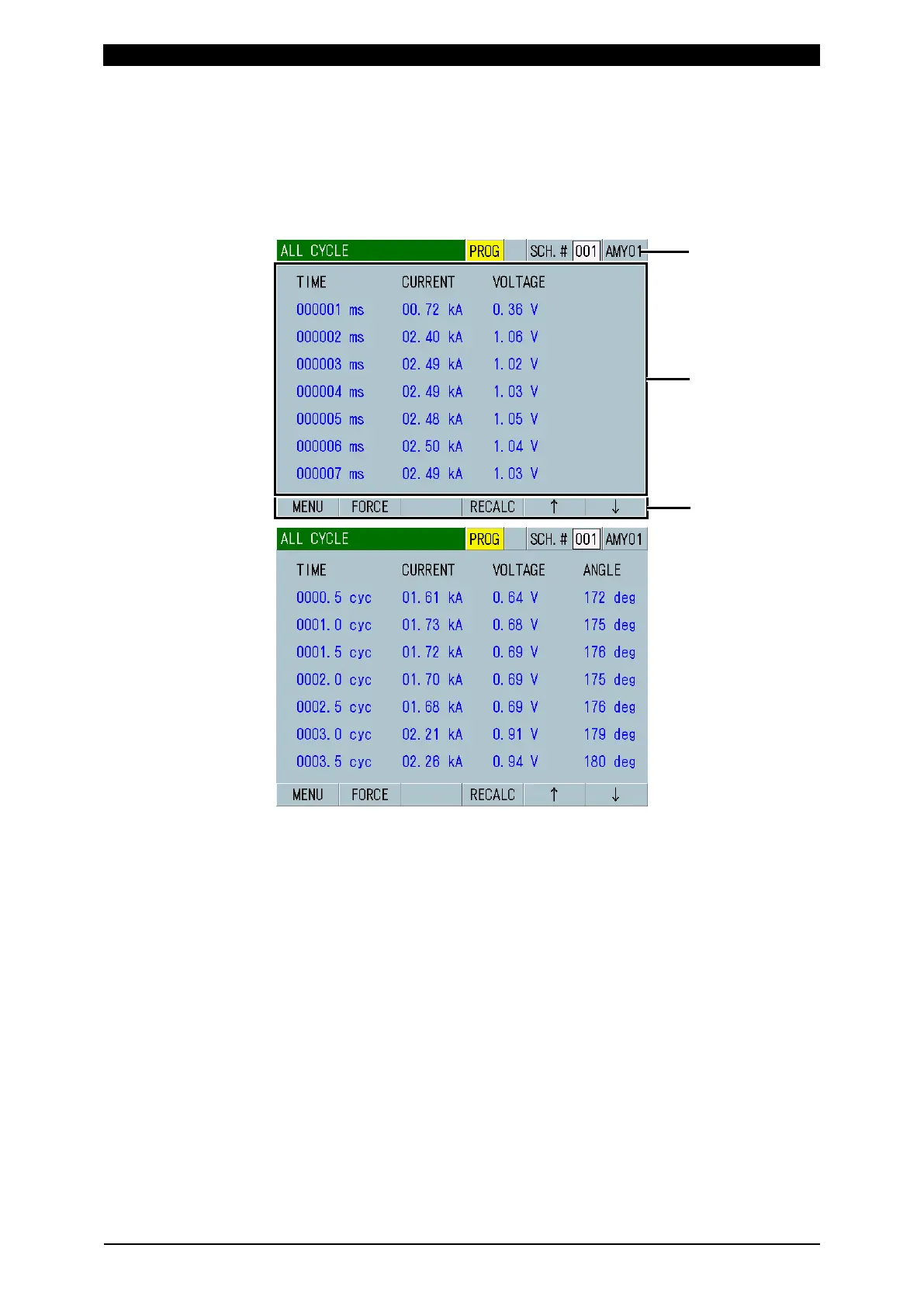

j. ALL CYCLE Screen
Can not be used in the ISO17657 mode, but in the original mode.
With this function, current flow result after measurement every half cycle or 1 ms
and measurement result of force/external input every 10 ms can be analyzed in
detail.
j-1. ALL CYCLE Screen (Current)
(1) SCH.#
Shows the measurement schedule number used (1 to 127). On the other hand,
you can change schedules by selecting this field and inputting a value.
(2) Schedule name
Shows the name of SCH.#. This can be set in the BASIC SETUP (1) screen.
(3) RMS per cycle
*2
Shows the RMS current, voltage and conduction angle
*1
every half cycle in AC
mode and every 1 ms in DC mode. The area with values shown in blue
represents the calculation interval.
To Next Page
