MM-400A
6. Installation and Connections
6-12
e. When Using an External 4 to 20 mA Current Input (Force/displacement-
equipped specification)
1) The MM-400A allows for measurement connecting a commercial 4 to 20 mA
output sensor connected to the external current input. Input it in a range of 4 to
20 mA.

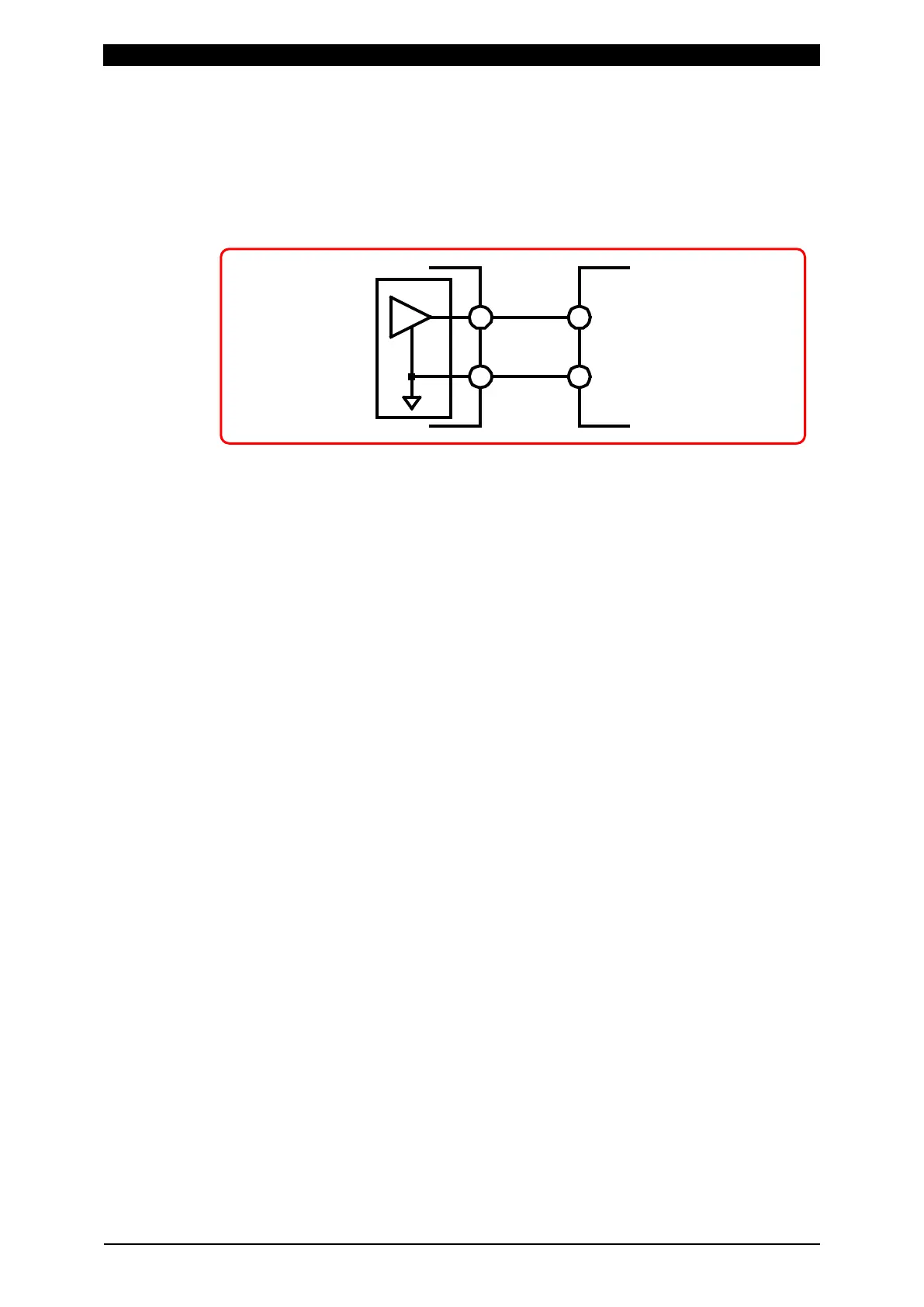

External 4 to 20 mA Current Input Connection Diagram
The 16-pin female multiconnector is optional.
(Multiconnector SRCN6A21-16P: Japan Aviation Electronics Industry)
multiconnector
External 4 to 20 mA
current input
instrument having
4 to 20 mA output
