MM-400A
11. Timing Chart
11-7

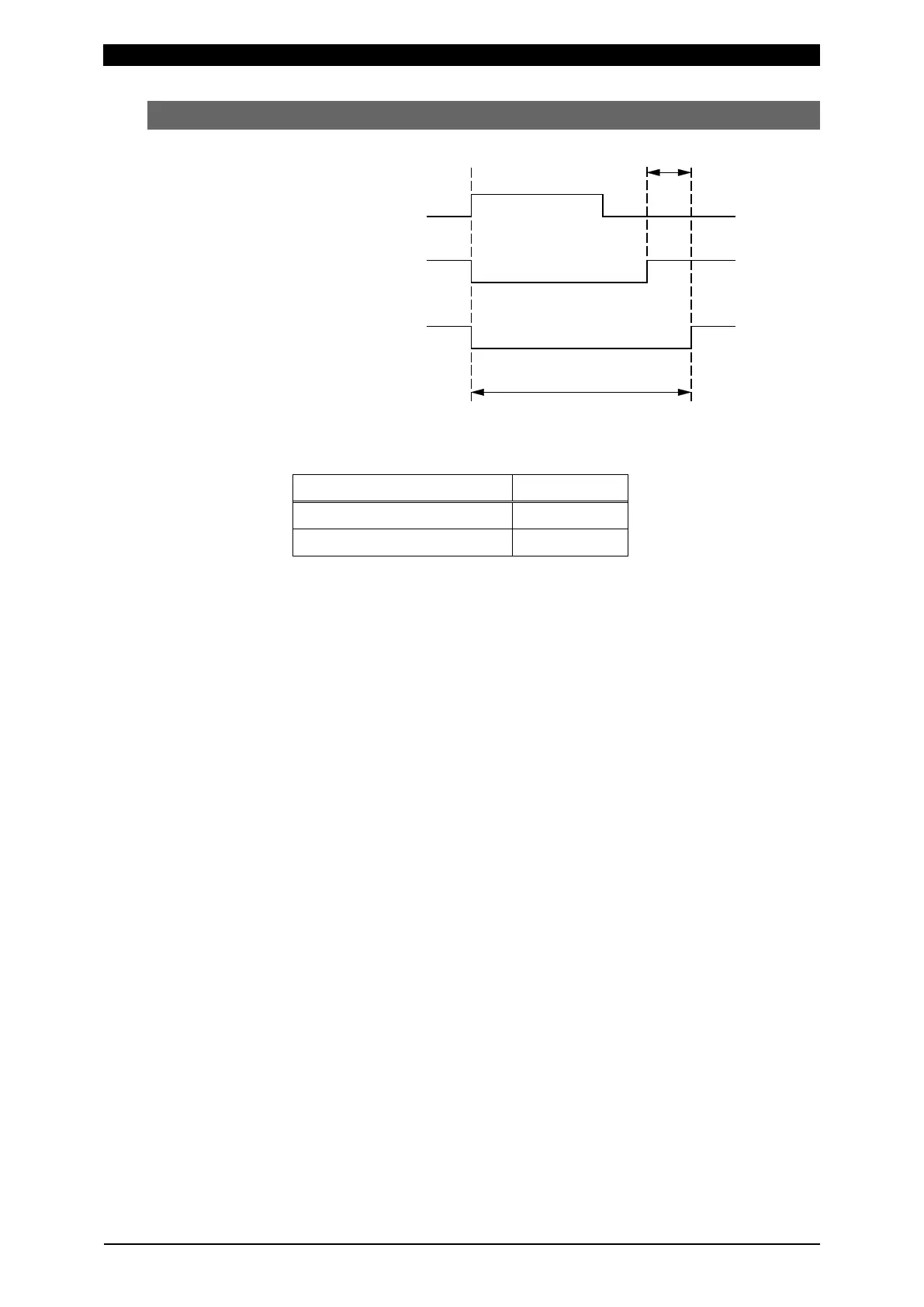

(6) Bi-Directional Communication after Measurement
*1
READY
Mea
su
rement operation
(output)
(bi-directional communication)
Response possible
Response impossible range
*1: Screen rewrite time
• MEASUREMENT screen
Display screen Rewrite time
MEASUREMENT 5 screen 109 ms
MEASUREMENT 10 screen 77 ms
The bi-directional communication. The range from the start of
measurement to the end of the screen rewriting (response impossible
range). Start the bi-directional communication after the screen rewriting
is completed.
• WAVEFORM screen, ALL CYCLE screen and ENVELOPE screen
Since the rewrite time changes depending on the selected screen and
measurement result, start the bi-directional communication after the
screen rewriting is completed.
