MM-400A
9. Measurement
9-16
(4) Measuring Current/Voltage after FORCE INITIAL
1) Connect the MM-400A to a power supply and the external I/O connector, and
connect the pressure follow-up mechanism element P unit to the toroidal coil
and the voltage detection cable. (Refer to (2) a 1) and 2) in Chapter 6 for the
toroidal coil and the voltage detection cable, (2) c 1) and 2) in Chapter 6 for the
force sensor, and (3) in Chapter 10 for the external I/O connector.)
2) Set the main power switch on the rear panel to the ON position (– side) to start
the MM-400A.

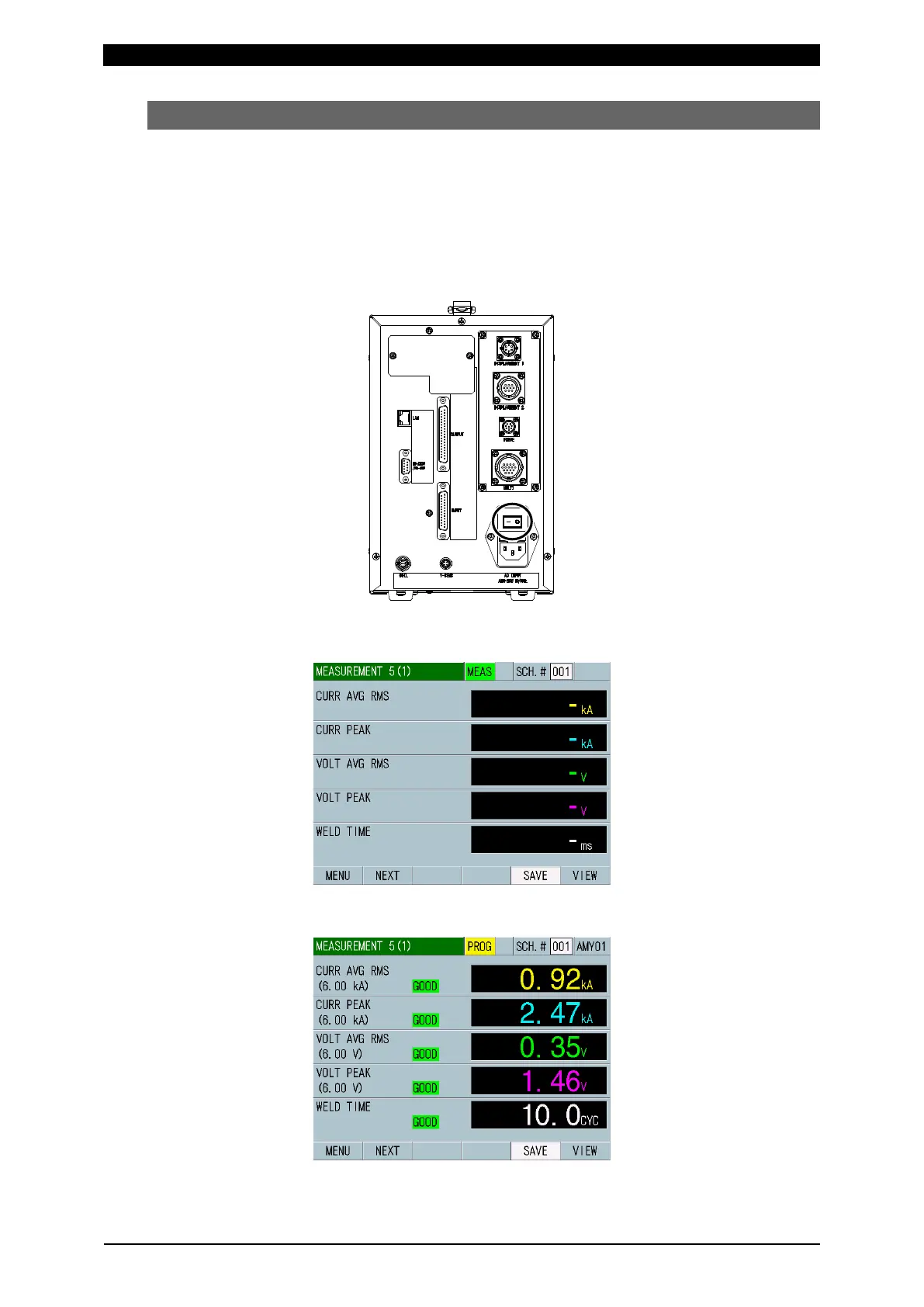

3) The MEASUREMENT 5(1) or MEASUREMENT 10 screen appears on the
display after a while.
To change or check the setting, touch MEAS to change it to PROG.
(Alternately switched by touching.)
To Next Page
