MU Series (Windows)
User’s Manual
Layer Menu Funcons

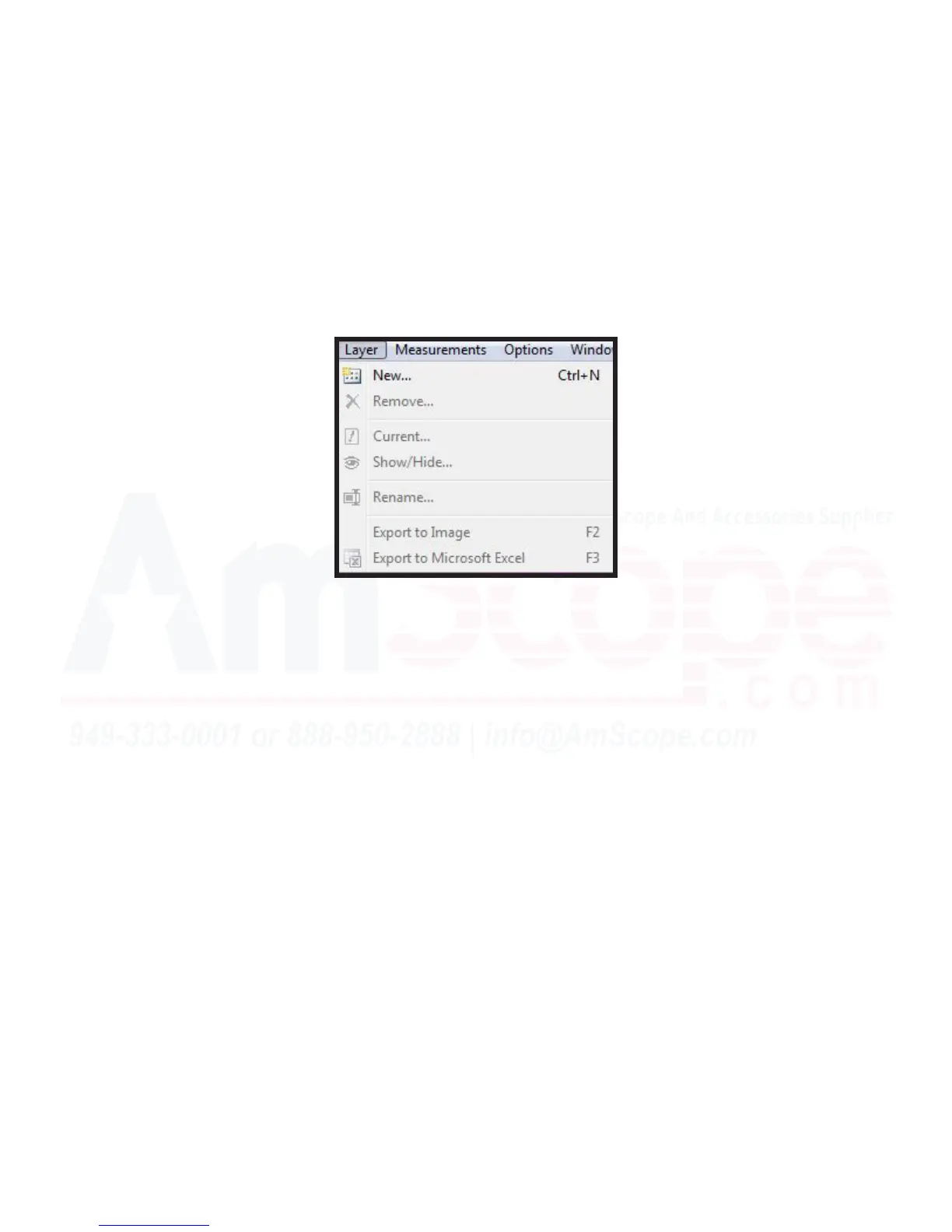

Layer Menu
The “Layer” menu is used to manipulate the various measurement and annotaon layers available for use with
a captured image. Layers allow a user to non-destrucvely create overlays, measurements, and annotaons on
an image, with the ability to hide them if desired, and recall them later. Without using layers, anything placed
directly on the image would become a permanent xture of the image, and thus, one would have to start over
if needing to make modicaons. Note that a visual representaon of the layers in an image can be found at
the boom of the le navigaon bar, in a tab named “Layer”.
New... - The “New...” funcon creates a new layer in the image and allows the user to input a name for it.
Remove... - This menu funcon will delete the currently visible layer.
Current... - The “Current...” funcon brings up a drop down menu allowing the user to select which layer they
wish to have acve.
Show/Hide... - This allows a user to make a layer appear or disappear in the total image view, without deleng
it.
Rename... - Allows a user to modify the layer name of a previously created layer.
Export to Image - Exports the current layer to a new image of its own, useful for later recall if needed.
Export to Microso Excel - Exports the current layer’s data to a Microso Excel sheet.
