89
MU Series (Windows)
User’s Manual
Process Menu Tools
Segmentaon & Count
OTSU Bright... - The bright variant of OTSU is used to segment bright targets from dark backgrounds, such as in
darkeld. Otherwise, it behaves the same as “OTSU Dark.”

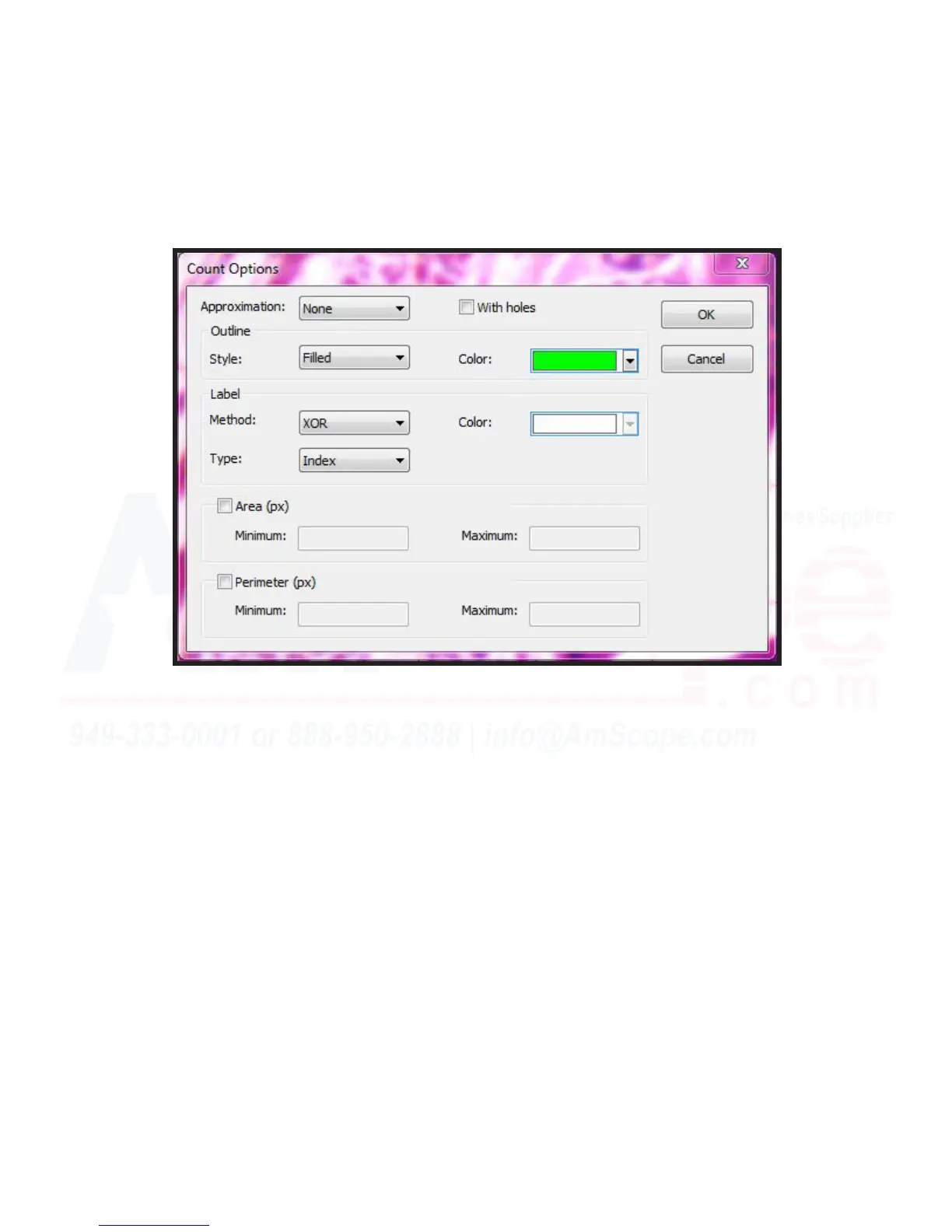

Approximaon - Assigns whether the segments will be esmated as circles, ellipses, or none (the actual shape
and size of the segment).
With Holes - This ck box enables the segmentaon method to create holes within a segment for areas that do
not t the segment.
Outline Style - Assigns whether the segments will be colored in, outlined, or none (simply numbered).
Outline Color - Assigns which color the segments or outlines will be colored in.
Label Method - Assigns how the segments will be labeled. XOR contrasts the numbers against the background,
true allows a color to be selected for all, and false eliminates numbering the secons enrely.
Label Color - When true is selected as the “Label Method,” will allow selecon of the color to use for the num-
bering.
Label Type - When true is selected as the “Label Method,” allows selecon between displaying counted seg-
ments, the area of each segment, or the perimeter of each segment.
Area (px) (Minimum & Maximum) - Allows the user to create an upper and lower limit for what the soware
considers a segment. Anything below the minimum or above the maximum value in area will be excluded from
being a segment (in pixels).
