3.2 Basic Operation
3-17
3
Measurement
3.2.2.3 RX mode screen
This section explains the main function menu on the RX mode screen
under the following conditions.
●
The Analog Signal Generator (MS2830A-088/188, MS2840A-088/188)
or the Analog Function Extension Option for Vector Signal Generator
(MS2830A-029/129, MS2840A-029/129) is installed.
●
The MS2830A-018/118 Audio Analyzer is not installed or MS2840A.
F1
F2
F3
F4
F5
F6
F7
F8

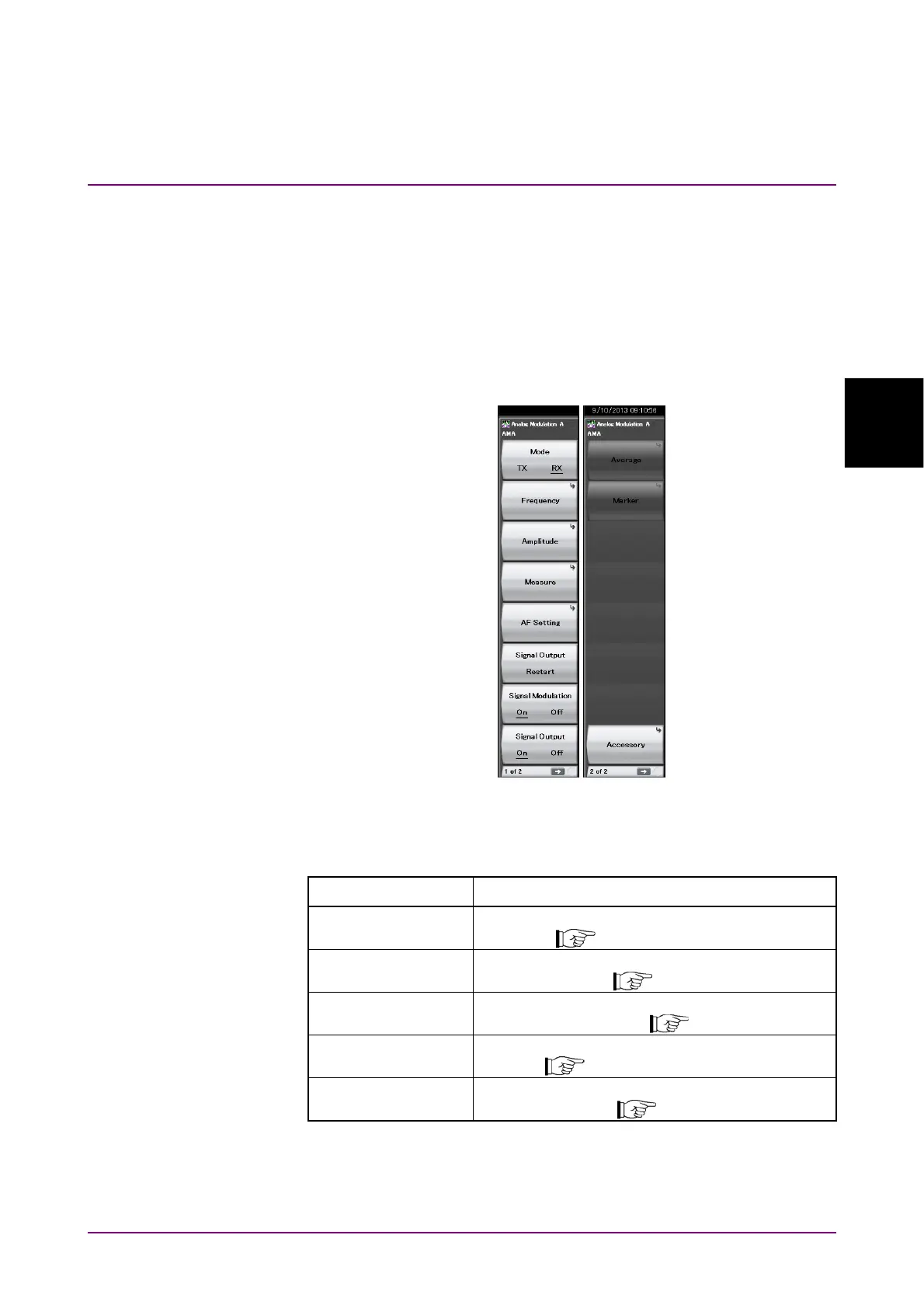

Figure 3.2.2.3-1 Main Function Menu (RX Mode)
Table 3.2.2.3-1 Main Function Menu (RX Mode) Explanation
Menu Display Function
Mode
Sets continuous or single measurement mode.
3.3 “Setting Measurement Mode”
Frequency
Sets a frequency.
3.7.1 “Setting frequency”
Amplitude
Sets a level.
3.7.2 “Setting level”
Measure
Sets measurement items.
3.7.3 “Setting measurement items”
AF Setting
Sets AF signal.
3.7.4 “Setting AF signal”
