Help for the Menu shortcut screen is available by pressing the Help icon in the lower-right
corner of the display, as shown in Figure 2-4 on page 2-6.
Esc Key
Press this key to cancel any setting that is currently being made.
Enter Key
Press this key to finalize data input or to select a highlighted item from a list.
Arrow Keys
The four arrow keys (around the Enter key) are used to scroll up, down, left. The arrow keys
can often be used to change a value or to change a selection from a list. The Left/Right arrow
keys sometimes change values or move through selections in different increments than the
Up/Down arrow keys. The arrow keys are also used to move markers.
Shift Key
Pressing the Shift key followed by pressing a number key executes the function that is
indicated in blue text above the number key. When the Shift key is active, its icon is displayed
at the top-right of the measurement display area near the battery charge indicator.

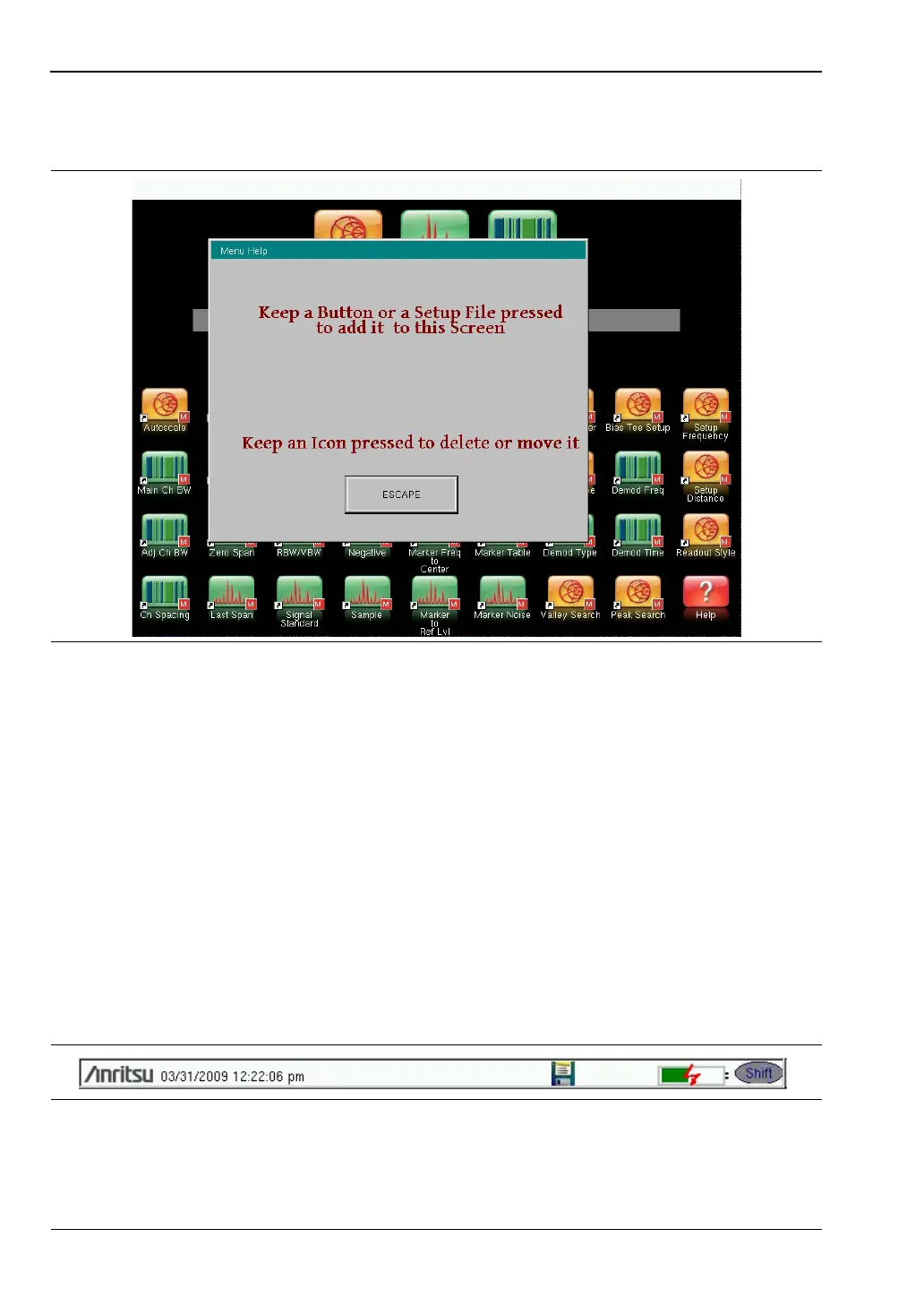

Figure 2-4. Menu Help
Figure 2-5. Shift Key Icon
