1-4 Identifying the Connections General Information
1-4 PN: 10580-00305 Rev. L MS20xxC UG
1-4 Identifying the Connections
The VNA Master MS2026C, MS2027C, and MS2028C have the connectors shown in
Figure 1-1.For details, refer to Figure 2-13 on page 2-20.
The VNA Master MS2036C, MS2037C, and MS2038C have the connectors shown in
Figure 1-2.For details, refer to Figure 2-14 on page 2-21
1-5 Soft Carrying Case and Tilt Bail
The soft carrying cases for the MS202xC and the MS203xC accommodate the different
instrument sizes. The part numbers are in the Technical Data Sheet. The tilt bail is
factory-installed on the VNA Master for use with or without the soft carrying case.
VNA Master Soft Carrying Case
The MS20xxC can be operated while in the soft carrying case. On the back of the case is a
large storage pouch for accessories and supplies.
To install the MS20xxC into the soft carrying case, perform the following:
1. The front panel of the case is secured with hook and loop fasteners. Fully open the front
panel of the case.

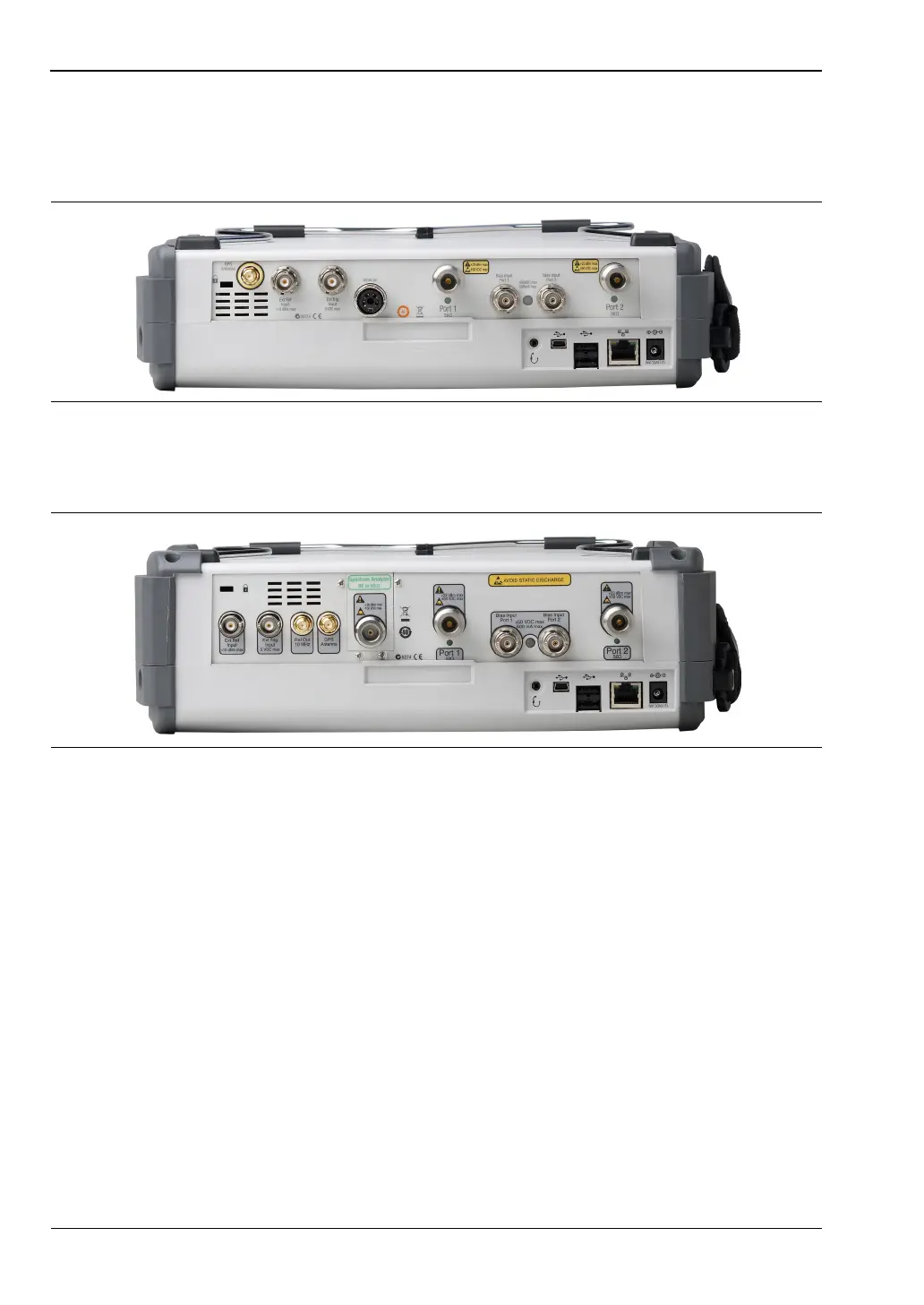

Figure 1-1. MS202xC Connectors
Figure 1-2. MS203xC Connectors
