Anritsu VNA Master MS2026C User Manual

Quick Start Guide 2-4 Typical Vector Network Analyzer Display
MS20xxC UG PN: 10580-00305 Rev. L 2-9
Instrument Settings Summary
The instrument settings that apply to all traces are summarized in the top two rows of the
measurement display screen (refer to item 2 in Figure 2-6). The summary includes the
Number of Points, the IF Bandwidth, the Averaging count, the Port Power level, and the
Bias Tee status, all of which apply to both ports. The summary also includes the Reference
Plane Extension values, which differ for each port.
1 Instrument Settings Summary (unique to each trace)
2 Instrument Settings Summary (applies to all traces)

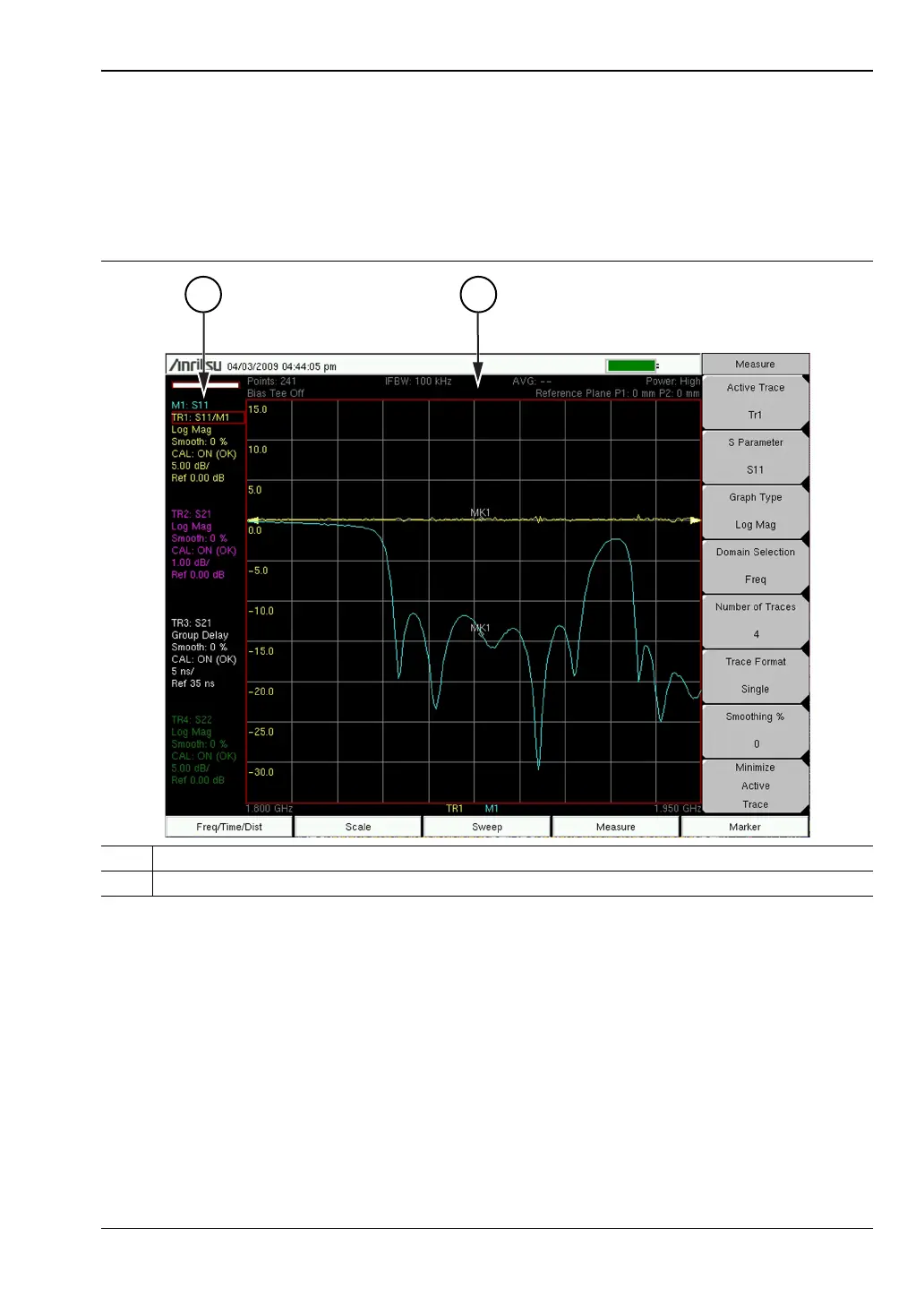

Figure 2-6. Instrument Settings Summary on Measurement Display Screen
1 2
