Quick Start Guide 2-5 Typical Spectrum Analyzer Display
MS20xxC UG PN: 10580-00305 Rev. L 2-11
2-5 Typical Spectrum Analyzer Display

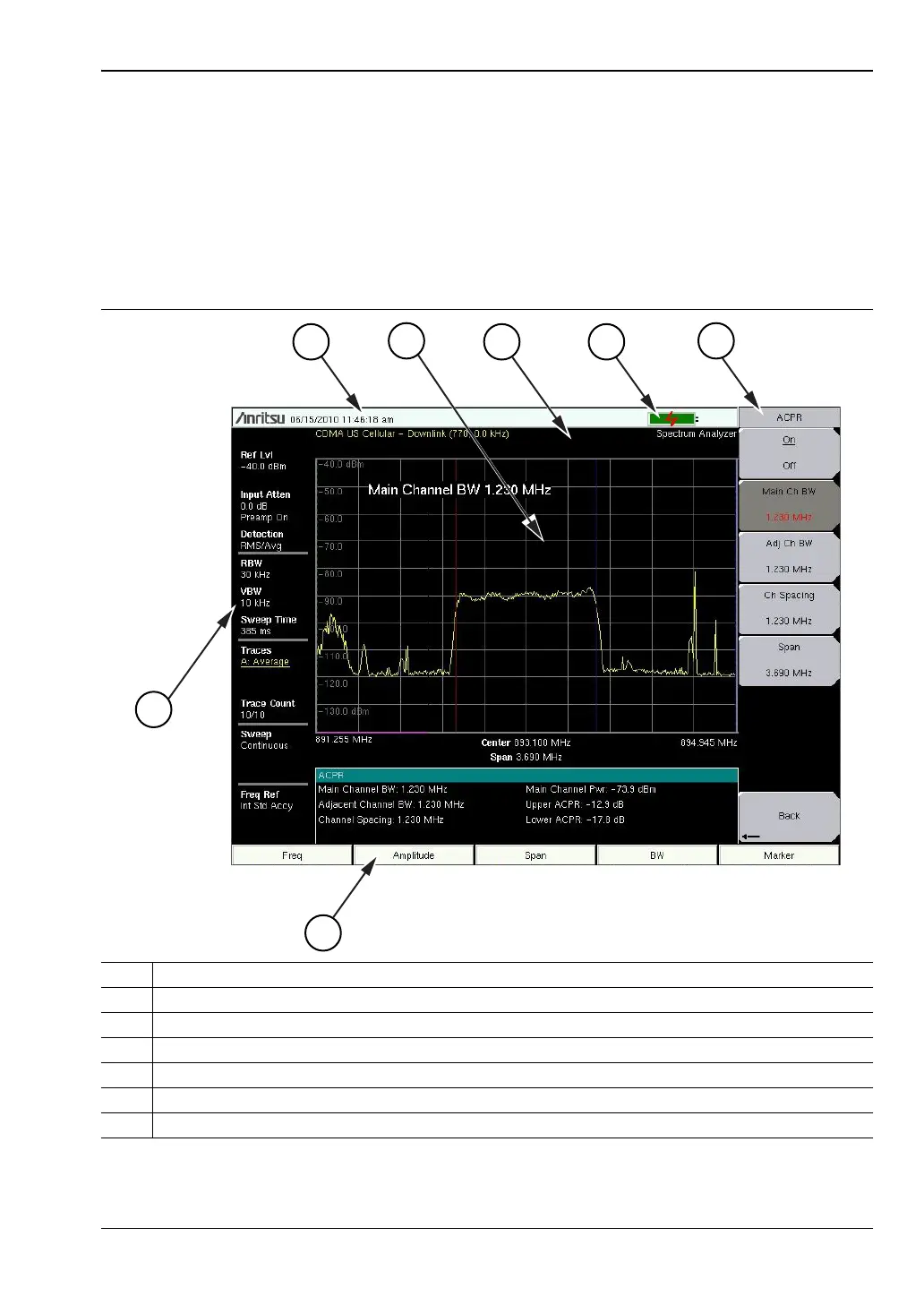

Figure 2-7 illustrates some of the key information areas of the spectrum analyzer display
screen on the VNA Master MS20xxC. The measurement and the display type that are
illustrated here may not be the same as currently shown on your instrument. The purpose of
the figure is to show the general areas of the display, which are labeled in the figure. Refer to
the Spectrum Analyzer Measurement Guide for more detailed soft key descriptions.
Measurement Guide part numbers are listed in Table A-1, “Measurement Guides”
on page A-1
1 Instrument Settings Summary (unique to each trace)
2 Real Time Clock
3 Measurement Display Area (or Sweep Window)
4 Instrument Settings Summary (applies to all traces)
5 Battery Charge Indicator
6 Soft Key Labels (or Active Function Block)
7 Function Hard Key Labels (specific to instrument Mode settings)
Figure 2-7. Typical Spectrum Analyzer Display Screen
