Quick Start Guide 2-14 Symbols and Indicators
MS20xxC UG PN: 10580-00305 Rev. L 2-29
2-14 Symbols and Indicators
The following symbols, icons, and indicators convey the instrument status or condition on the
display. The colors shown here are in the standard or default display mode.
Symbols and Icons on the Title Bar
The instrument title bar displays the system date and time. When GPS is on and is tracking
satellites, its icon is followed by latitude and longitude coordinates.
The battery symbol indicates the charge remaining in the battery. The colored section inside
the symbol changes size and color with the charge level. When external power is applied, and
no battery is installed, the red plug body is displayed as a substitute for the battery symbol.

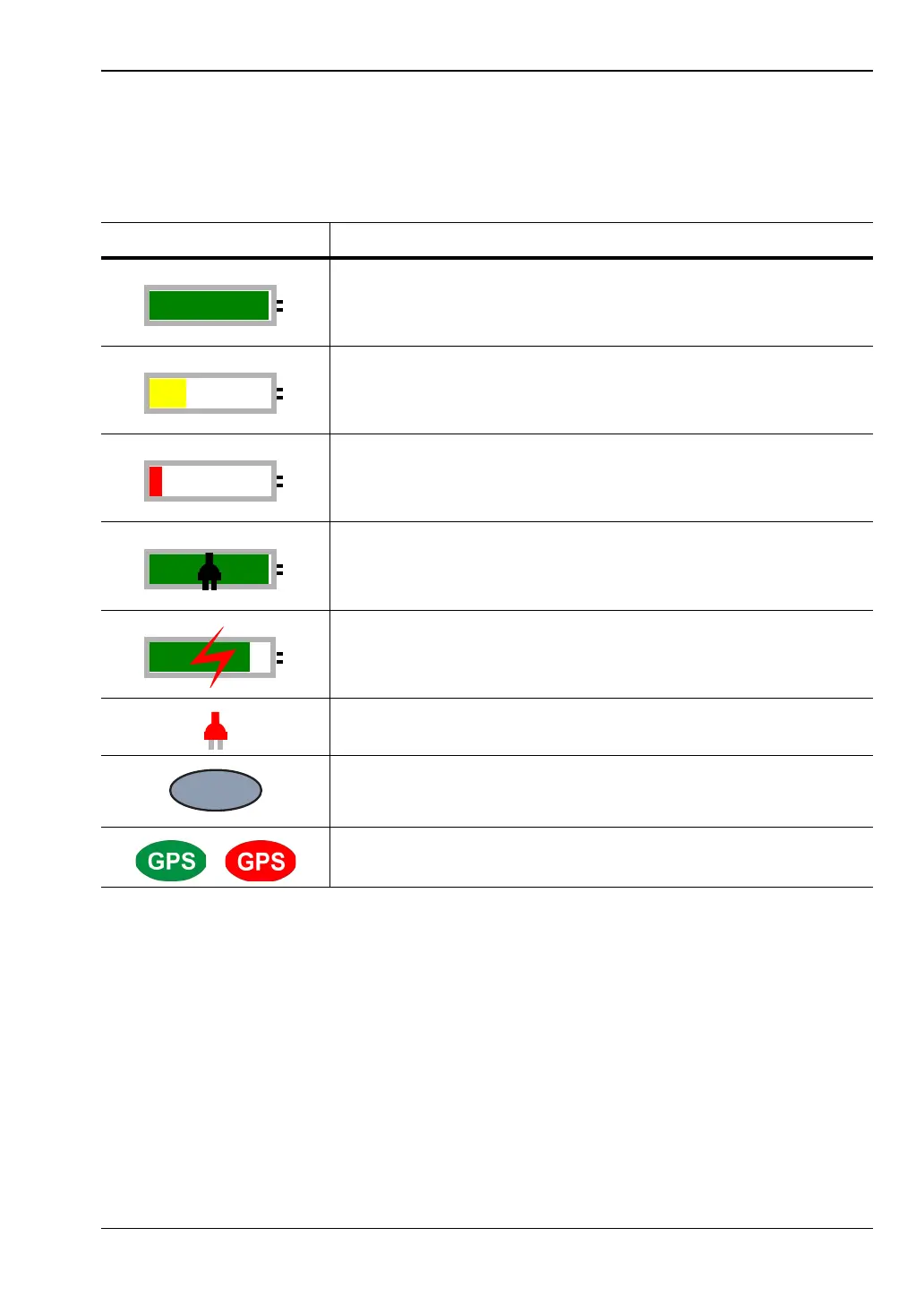

Table 2-1. Symbols and Icons
Symbol Description
Green: Battery is 30 % to 100 % charged
Yellow: Battery is 10 % to 30 % charged
Red: Battery 0 % to 10 % charged
Green with Black Plug body: Battery is fully charged, and
external power is applied.
Lightning Bolt: Battery is being charged (any color symbol).
Red Plug body: External power is applied, and no battery is
installed, or battery has lost communications with the instrument.
Shift Key Icon: This icon is displayed between the battery symbol
and the Soft Key Menu after the Shift key has been pressed, and
until another key is pressed.
GPS Icon: When GPS is available, this icon is displayed right after
the date and time. Refer to the GPS chapter for details.
