Recall Files
The recall menu enables you to view all of the Measurement and Setup files in the internal
memory and in an external USB flash drive. The files that are displayed during Recall File
operation will vary depending on the instrument mode. For example, spectrum analyzer files
(*.spa) do not appear in this menu when the instrument is in VNA Mode.
You can sort the recall menu by name, date, or type. You can also choose to view only
measurement files or setup files by pressing File Type on the Recall dialog box and then by
selecting the file type that you want to view.
Recall a Measurement
From the File menu, press the Recall Measurement submenu key, select the measurement
with the rotary knob or the Up/Down arrow keys, and then press Enter.
Recall a Setup
Press the Recall submenu key. Confirm that the file type is Setup or All. Select the setup file
(.stp) with the rotary knob or the Up/Down arrow keys, and then press Enter.
Recall Dialog Box
The Recall dialog box (Figure 5-2) opens previously saved measurements and setups. Refer
to the “Recall Menu” on page 5-13 for additional information.

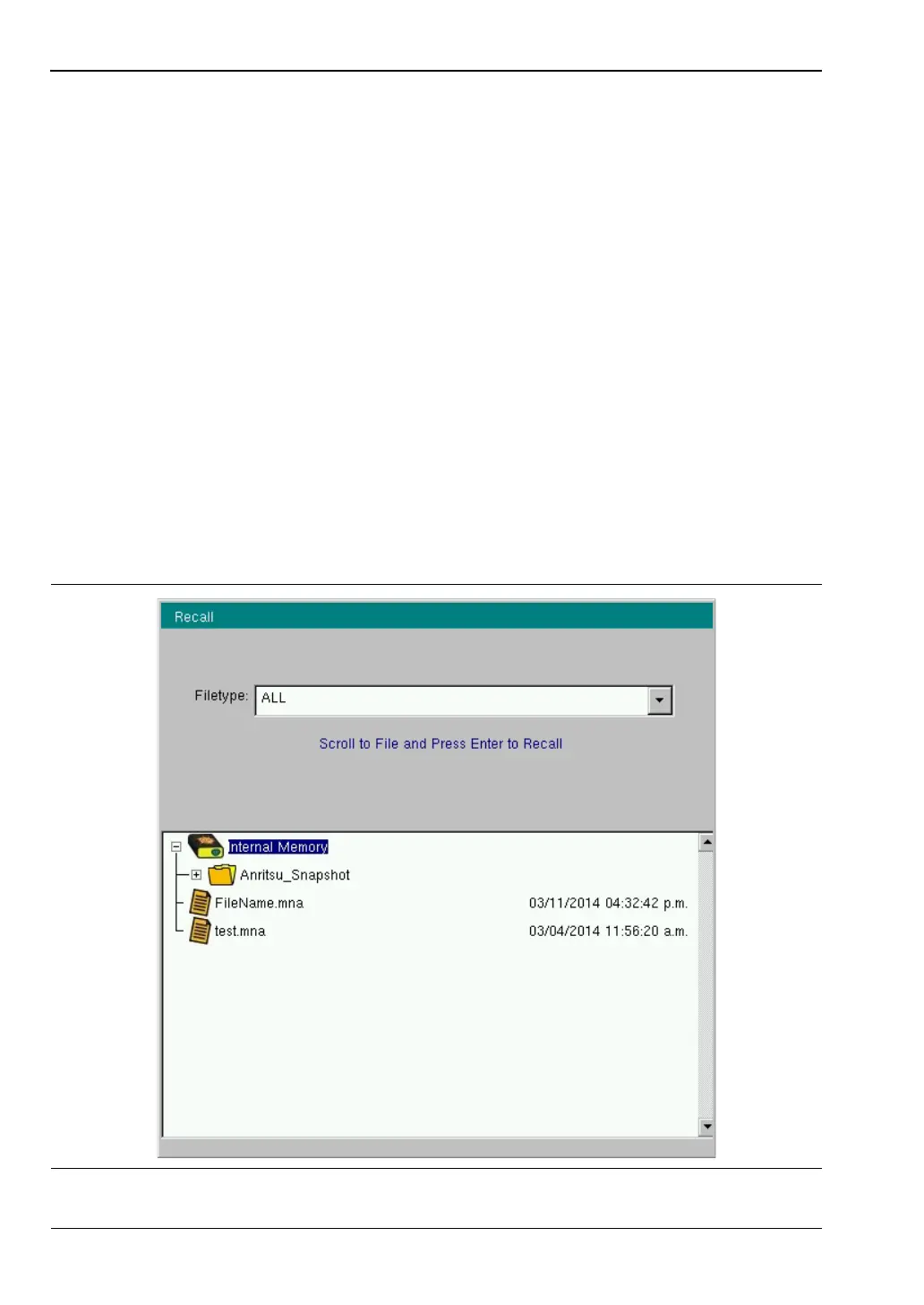

Figure 5-2. Recall Dialog Box
