Anritsu VNA Master MS2026C User Manual

2-4 Typical Vector Network Analyzer Display Quick Start Guide
2-6 PN: 10580-00305 Rev. L MS20xxC UG
2-4 Typical Vector Network Analyzer Display

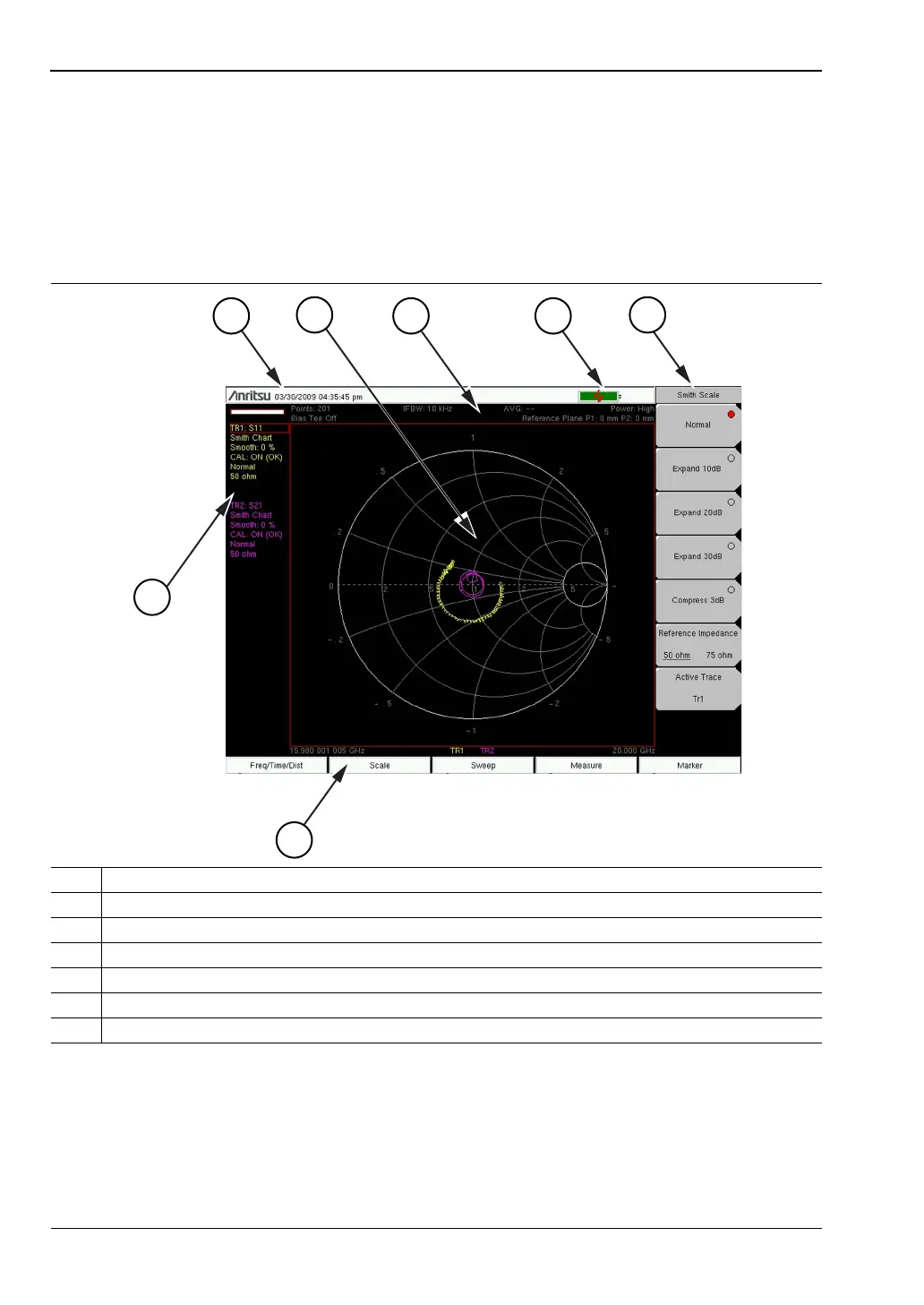

Figure 2-3 illustrates some of the key information areas of the vector network analyzer
display screen on the VNA Master MS20xxC. The measurement and the display type that are
illustrated here may not be the same as currently shown on your instrument. The purpose of
the figure is to show the general areas of the display, which are labeled in the figure. Refer to
the VNA Measurement Guide, Chapter 6, “VNA Menus” for more detailed soft key
descriptions (refer to Appendix A for document part numbers).
1 Instrument Settings Summary (unique to each trace)
2 Real Time Clock
3 Measurement Display Area (or Sweep Window)
4 Instrument Settings Summary (applies to all traces)
5 Battery Charge Indicator
6 Soft Key Labels (or Active Function Block)
7 Function Hard Key Labels
Figure 2-3. Vector Network Analyzer Smith Chart Display
1
2
3
4 5
6
7
