3 CCU (Camera Control Unit)
The CCU connects to the camera head. It performs signal processing, provides interfaces to the
OCP, RCP and other external equipment and supplies power to the camera. The CCU also offers
HDSDI outputs for live streams and slow-motion clips.

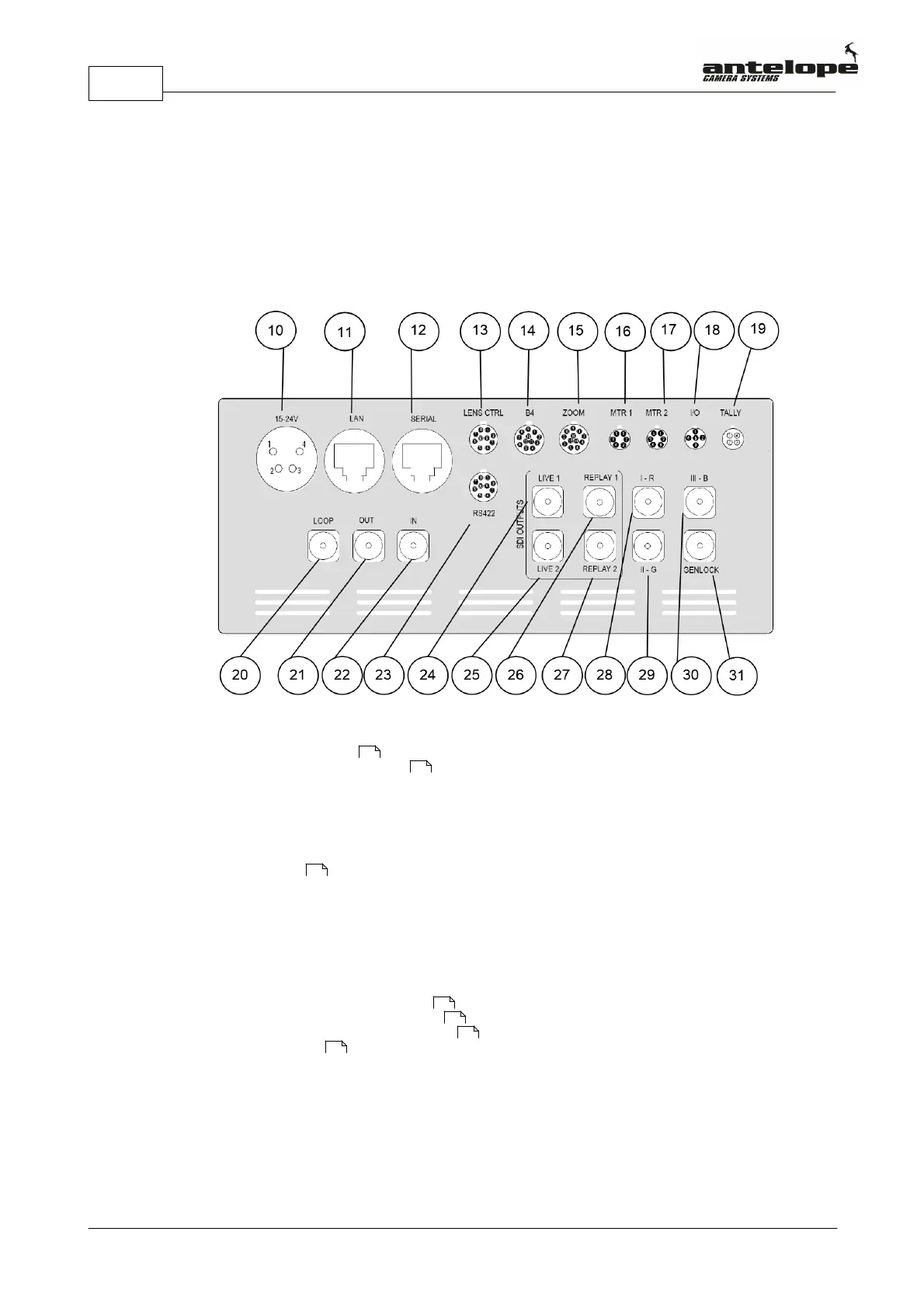

3.1 Front - CCU Interfaces
10. Power In Connector (15-24V)
11. Data LAN Remote Control Port
12. RS-422 Remote Control Port I (TO OCP)
13. Lens Remote Control Port
14. B4 Remote Control Port
15. Zoom Lens Connector
16. Motor 1 Connector
17. Motor 2 Connector
18. I/O for External Trigger
19. Tally Light Connector
20. Loop BNC SDI out 2 - Original HDSDI (same as SDI IN -22-)
21. BNC SDI out 1 - Deflickered HDSDI
22. BNC SDI IN
23. RS-422 Remote Control Port II (to Panasonic ROP)
24, HDSDI Live Signal Output 1
25. HDSDI Live Signal Output 2
26. HDSDI Slow-Motion Replay Output 1
27. HDSDI Slow-Motion Replay Output 2
28. HS-Link Connection to Camera Head I-RED
29. HS-Link Connection to Camera Head II-BLUE
30. HS-Link Connection to Camera Head III-GREEN
31. Genlock Interface Output
