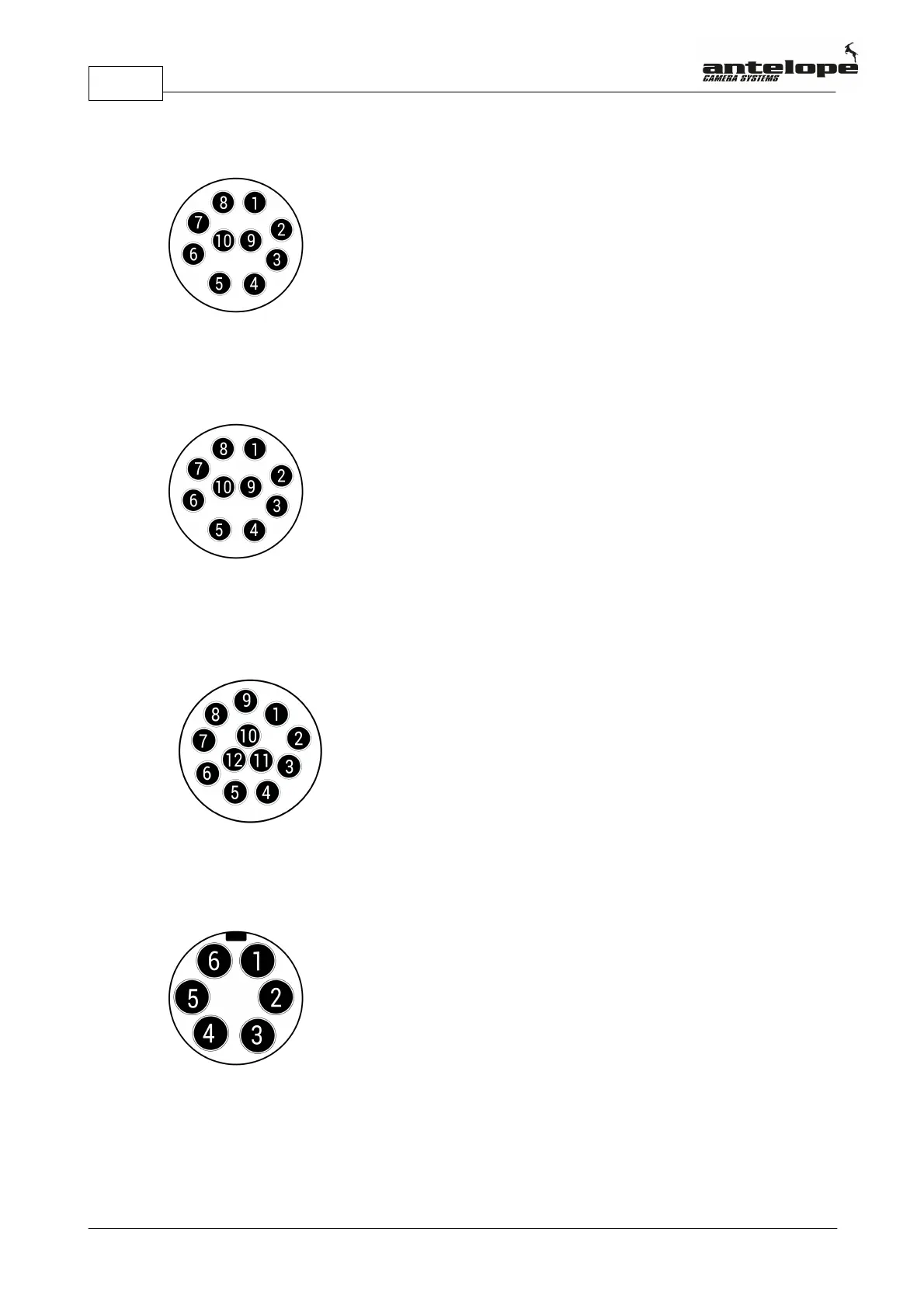

6.2.4 RS-422 Remote Control Port II - Hirose 10pin f
Pin 1: RX (+) or A
Pin 2: RX (-) or B
Pin 3: TX (+) or Y
Pin 4: TX (-) or Z
Pin 5: NC
Pin 6: NC
Pin 7: NC
Pin 8: NC
Pin 9: NC
Pin10: GND
6.2.5 Lens Remote Control Port - Hirose 10pin f
Pin 1: Middle Pot Focus
Pin 2: Middle Pot Iris
Pin 3: Middle Pot Zoom
Pin 4: NC
Pin 5: NC
Pin 6: NC
Pin 7: NC
Pin 8: NC
Pin 9: GND
Pin10: 3.3V
6.2.6 Zoom Lens Connector - Hirose 12pin f
Pin 1: + Iris
Pin 2: - Iris
Pin 3: + Focus
Pin 4: - Focus
Pin 5: + Zoom
Pin 6: - Zoom
Pin 7: Mid Pot Zoom
Pin 8: Mid Pot Iris
Pin 9: Mid Pot Focus
Pin10: NC
Pin11: GND
Pin12: 3.3V
6.2.7 Motor Connector - Hirose 6pin f
Pin 1: M -
Pin 2: M +
Pin 3: E1
Pin 4: 5V
Pin 5: GND
Pin 6: E2
