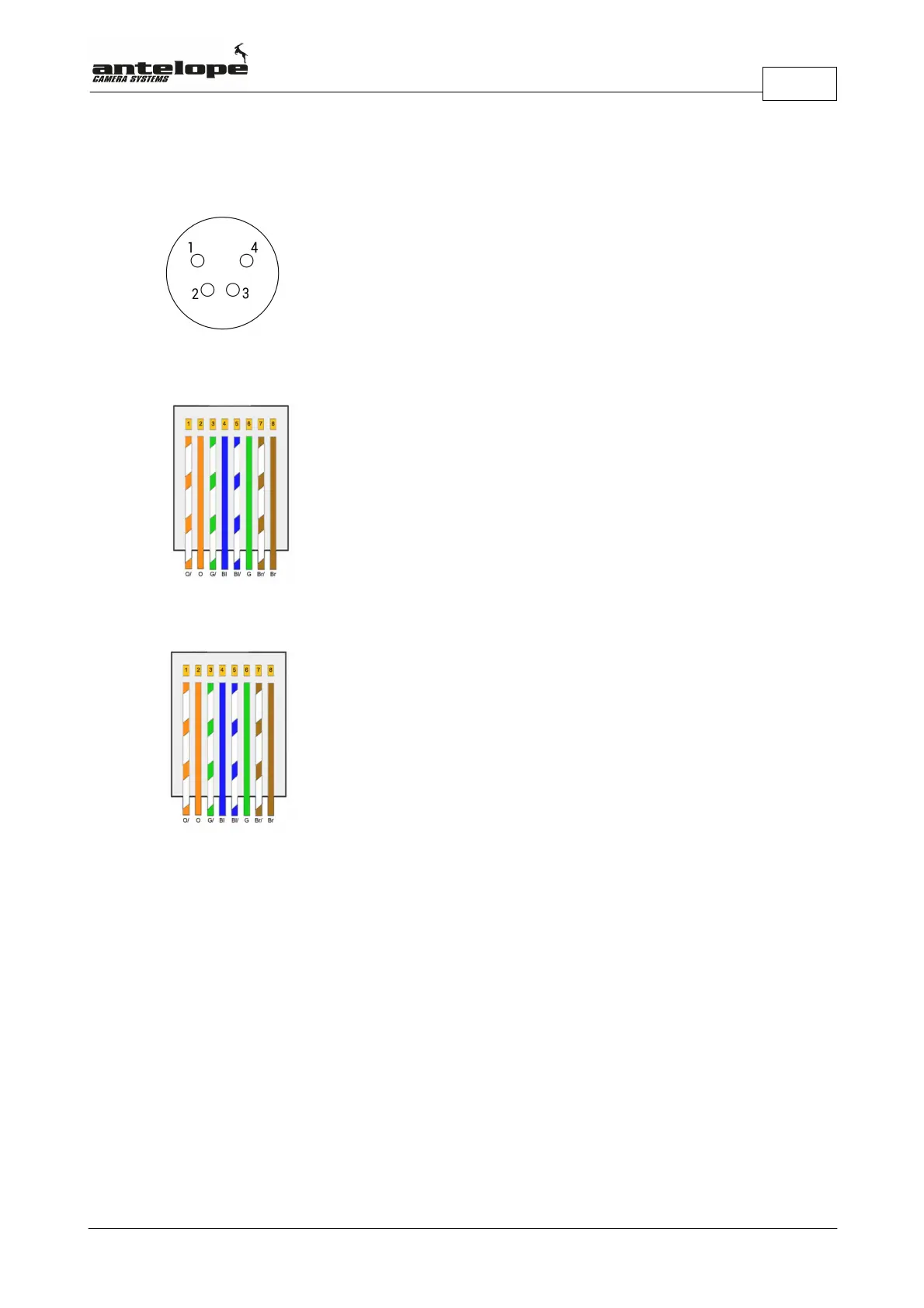

6.2 CCU Connectors
6.2.1 Power Connector - 4Pin XLR Male
Pin 1: GND
Pin 2:
Pin 3:
Pin 4: +12V DC
6.2.2 LAN Remote Control Port – CAT5 - RJ 455
Pin 1
TX(+)
white/orange
Pin 2
TX(-)
orange solid
Pin 3
RX(+)
white/green stripe
Pin 4
NC
blue solid
Pin 5
NC
white/blue stripe
Pin 6
RX(-)
green solid
Pin 7
NC
white/brown stripe
Pin 8
NC
brown solid
6.2.3 Data RS 422 – CAT5 RJ45
Pin 1
RX(+)
white/orange
Pin 2
NC
orange solid
Pin 3
NC
white/green stripe
Pin 4
RX(-)
blue solid
Pin 5
TX(+)
white/blue stripe
Pin 6
NC
green solid
Pin 7
GND
white/brown stripe
Pin 8
TX(-)
brown solid
