Antelope Pico - I;O Connector - Hirose 5 Pin F; Tally Connector; USB Firmware Update Port

Connectors
89
Antelope Camera Systems

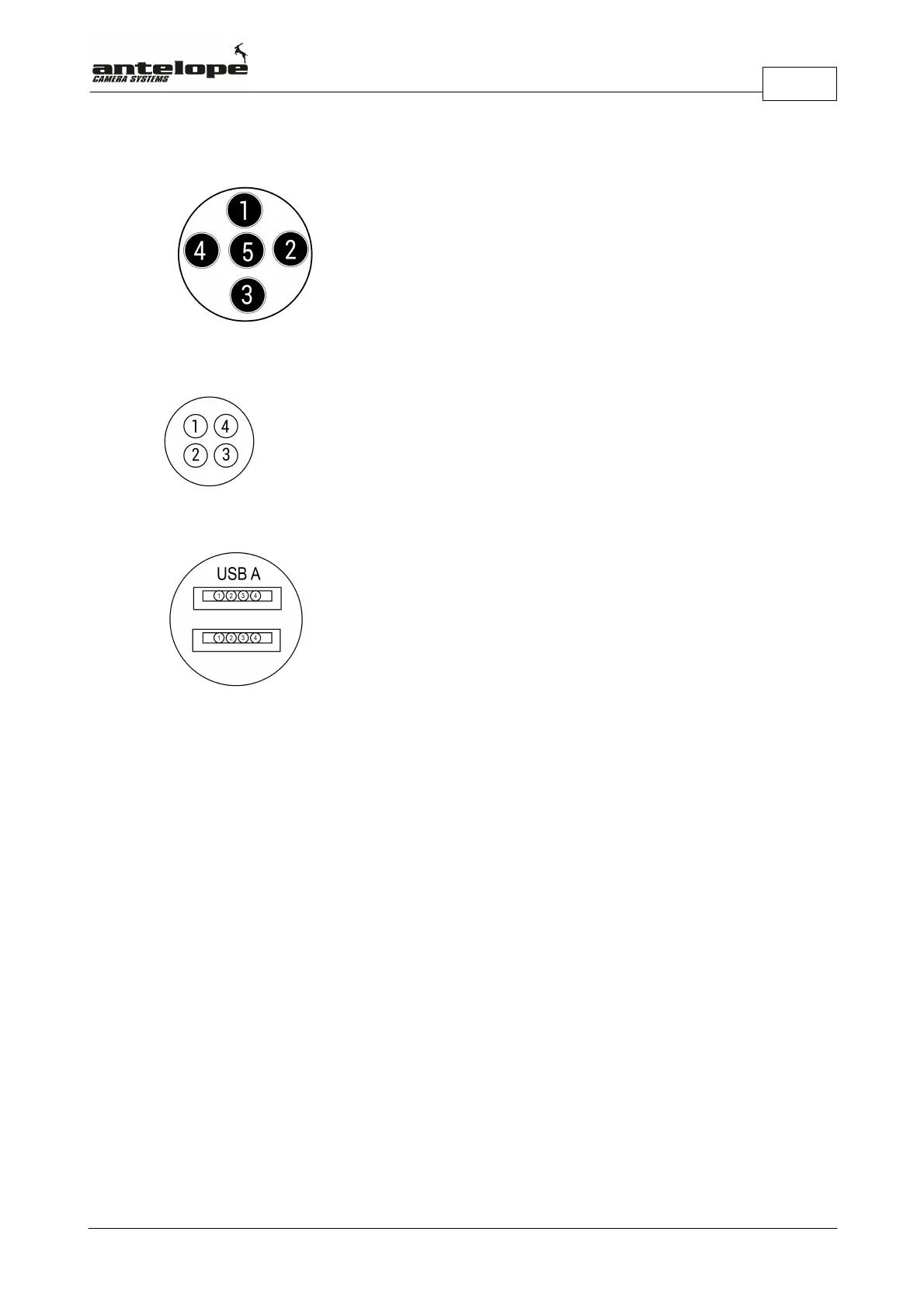

6.2.8 I/O Connector - Hirose 5pin f
Pin 1: Remote Port D
Pin 2: GND
Pin 3: Remote Port A
Pin 4: Remote Port B
Pin 5: Remote Port C
6.2.9 Tally Connector
Pin 1: NC
Pin 2: Tally IN
Pin 3: Tally OUT
Pin 4: NC
6.2.10 USB Firmware Update Port
Pin 1: Vcc
Pin 2: Data -
Pin 3: Data +
Pin 4: GND
Pin 5: Housing
Note! The USB-Port is a maintenance port only. This port is NOT used for general operation.
