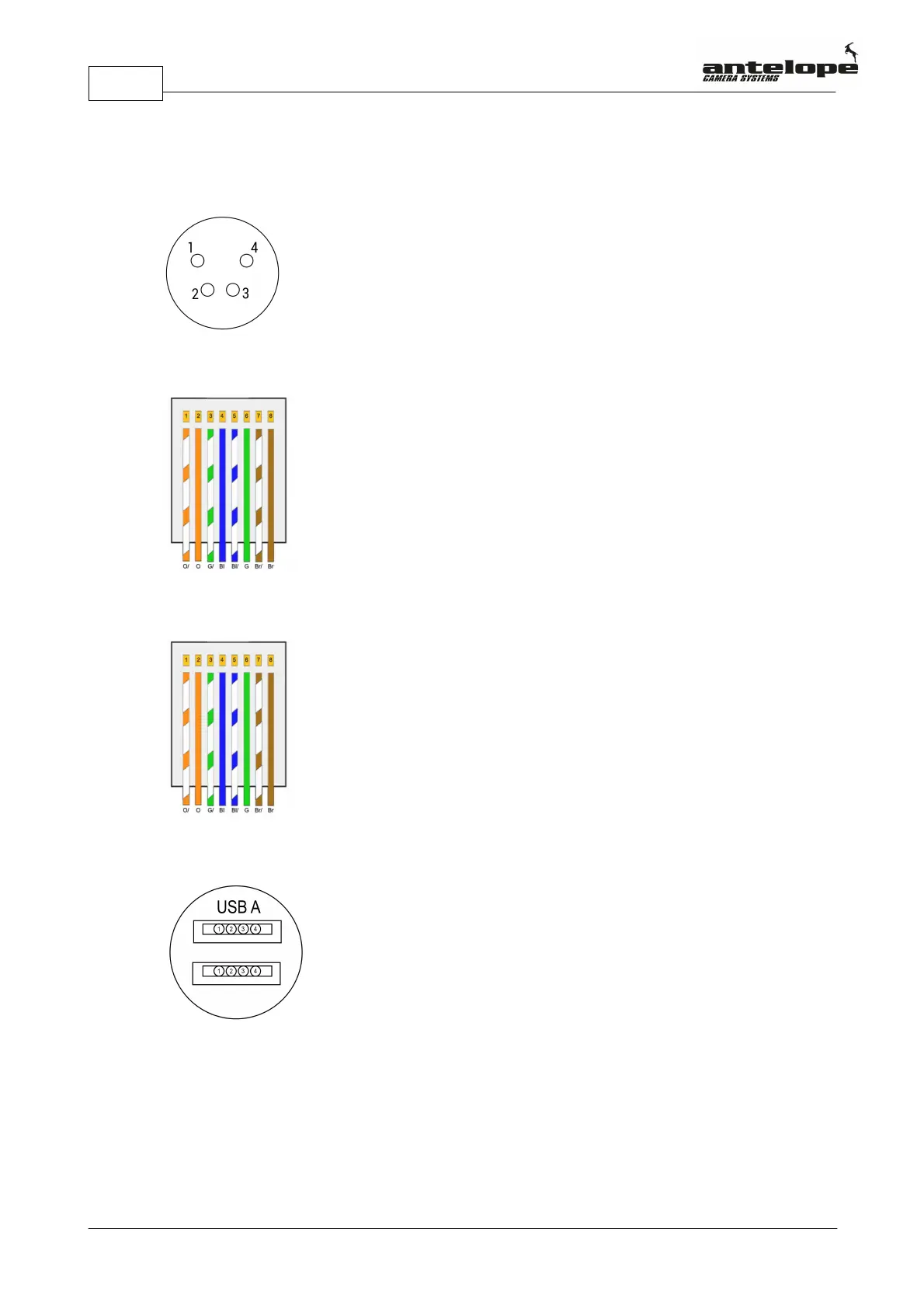

6.4 RCP Connectors
6.4.1 Power Connector 4Pin XLR Male
Pin 1: GND
Pin 2:
Pin 3:
Pin 4: +12V DC
6.4.2 LAN Remote Control Port – CAT5 - RJ45
Pin 1
TX(+)
white/orange
Pin 2
TX(-)
orange solid
Pin 3
RX(+)
white/green stripe
Pin 4
NC
blue solid
Pin 5
NC
white/blue stripe
Pin 6
RX(-)
green solid
Pin 7
NC
white/brown stripe
Pin 8
NC
brown solid
6.4.3 Data RS 422 – CAT5 RJ45
Pin 1
RX(+)
white/orange
Pin 2
NC
orange solid
Pin 3
NC
white/green stripe
Pin 4
RX(-)
blue solid
Pin 5
TX(+)
white/blue stripe
Pin 6
NC
green solid
Pin 7
NC
white/brown stripe
Pin 8
TX(-)
brown solid
6.4.4 USB Firmware Update Port
Pin 1: Vcc
Pin 2: Data -
Pin 3: Data +
Pin 4: GND
Pin 5: Housing
Note! The USB-Port is a maintenance port only. This port is NOT used for general operation.
