6 Connectors

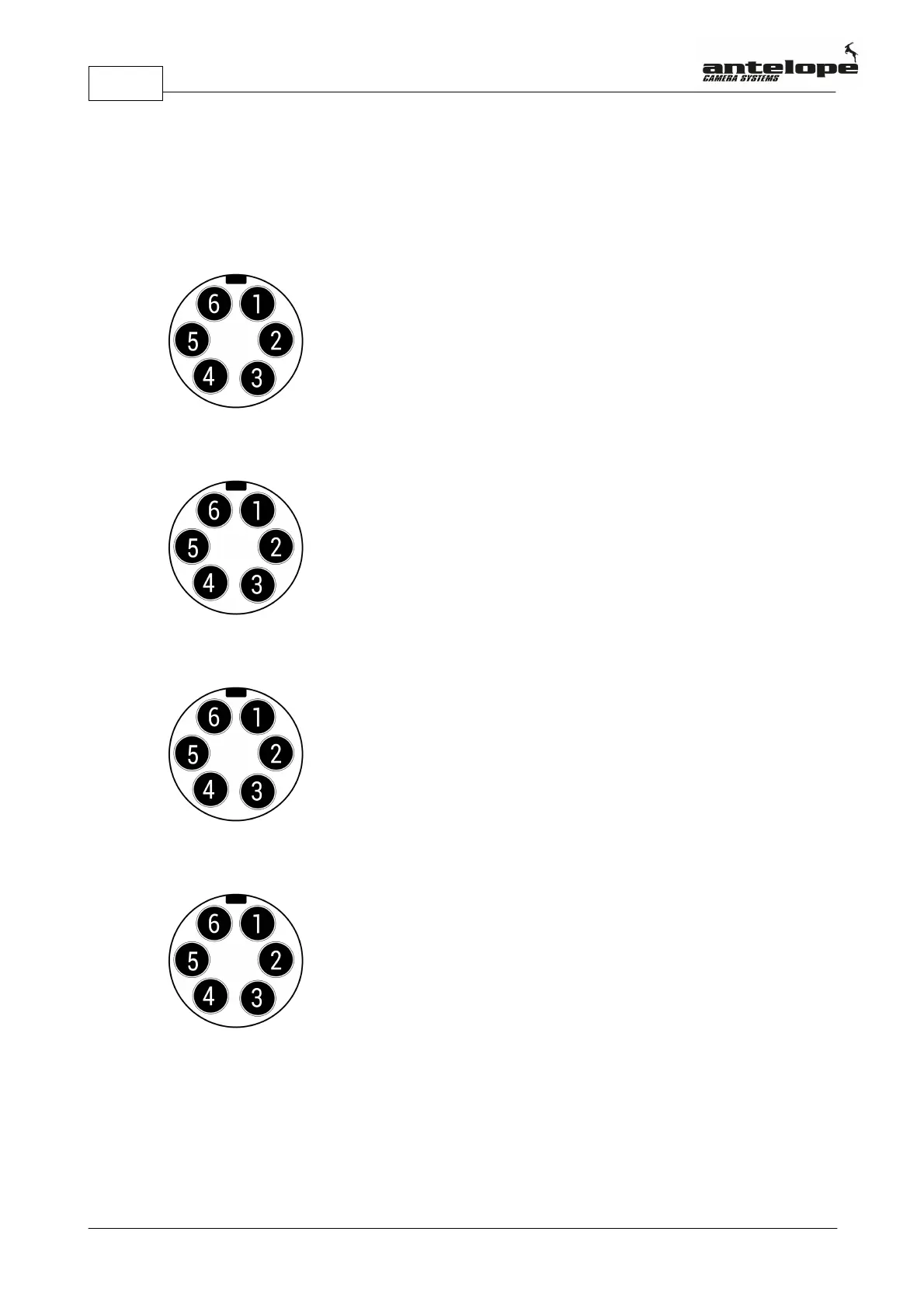

6.1 Pico Camera Head Connectors
6.1.1 Camera Iris Motor Connector - Hirose 6pin f
Pin 1: M -
Pin 2: M +
Pin 3: E1
Pin 4: 5V
Pin 5: GND
Pin 6: E2
6.1.2 Camera Focus Motor Connector - Hirose 6pin f
Pin 1: M -
Pin 2: M +
Pin 3: E1
Pin 4: 5V
Pin 5: GND
Pin 6: E2
6.1.3 Iris Motor Connector - Hirose 6pin f
Pin 1: M -
Pin 2: M +
Pin 3: E1
Pin 4: 5V
Pin 5: GND
Pin 6: E2
6.1.4 Focus Motor Connector - Hirose 6pin f
Pin 1: M -
Pin 2: M +
Pin 3: E1
Pin 4: 5V
Pin 5: GND
Pin 6: E2:
