Antelope Pico - Operational Control Panel (OCP) Introduction; OCP Back Panel Interfaces; OCP Front Panel Interfaces

Operating Guide 24
Antelope Camera Systems
4 Operational Control Panel (OCP)
The Antelope Operational Control Panel is designed to give instant access to all functions with
regards to image processing. It is compatible with the Antelope Pico and Compact cameras.

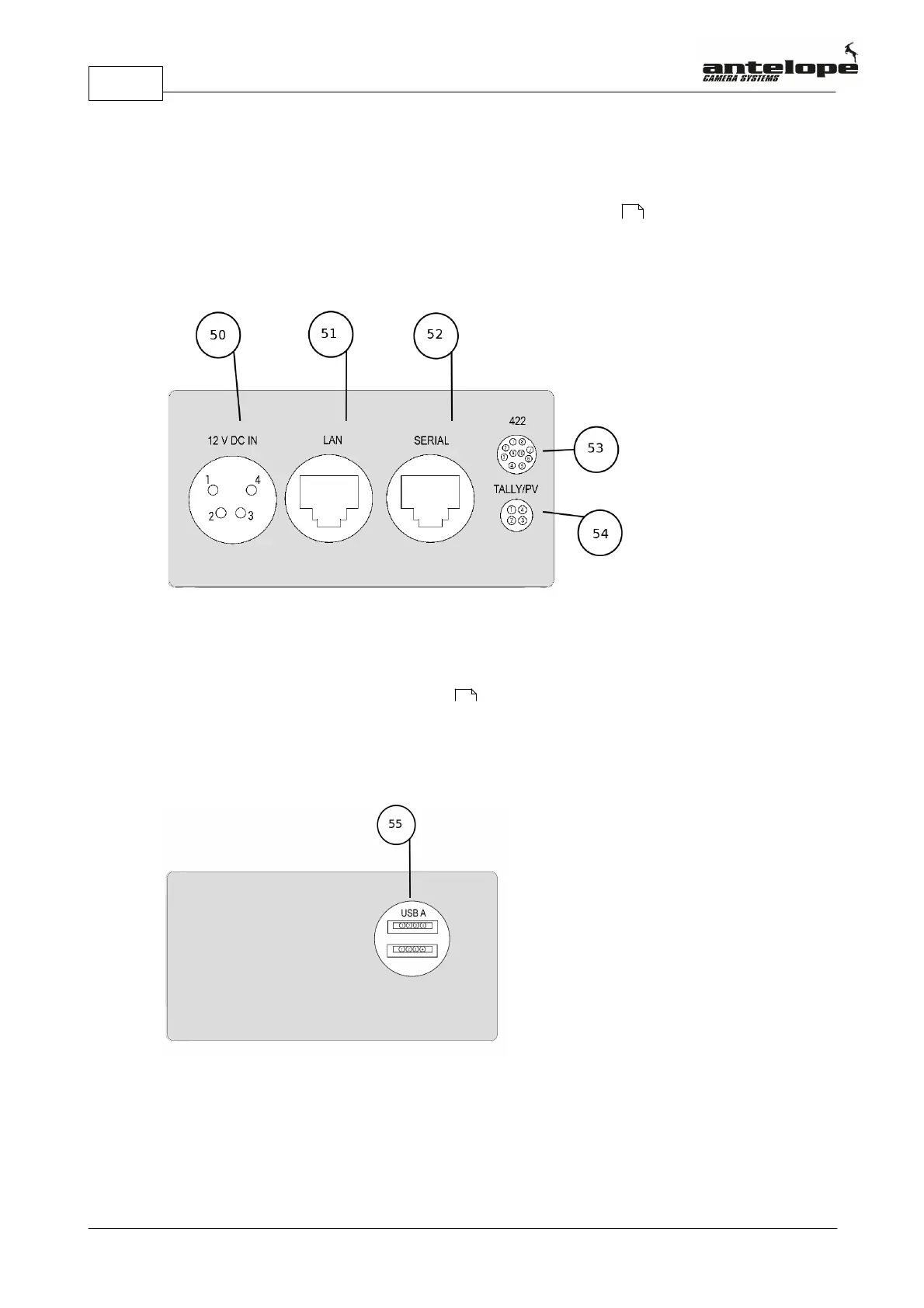

4.1 Back - OCP Interfaces
50. Power In Connector (12V)
51. LAN Remote Control Port
52. RS-422 Remote Control Port I (To CCU or RCP)
53. RS-422 Remote Control Port
54. Tally / Preview Connector
4.2 Front - OCP Interfaces
55. USB Firmware Update Port (upper USB Port)
