Antelope Pico - OCP Connector Pinouts

Operating Guide 90
Antelope Camera Systems

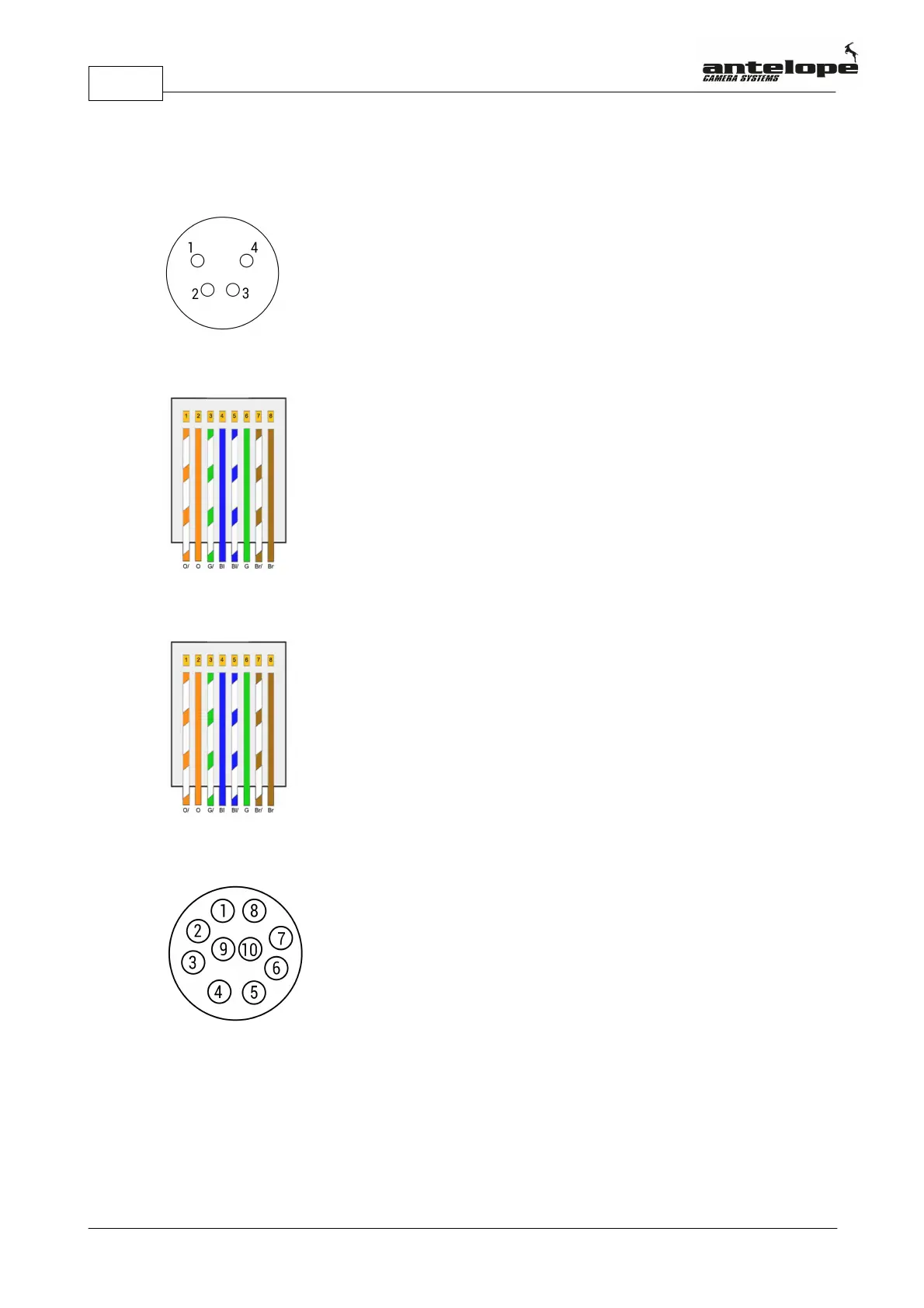

6.3 OCP Connectors
6.3.1 Power Connector 4 Pin XLR Male
Pin 1: GND
Pin 2:
Pin 3:
Pin 4: +12V DC
6.3.2 LAN Remote Control Port – CAT5 - RJ 455
Pin 1
TX(+)
white/orange
Pin 2
TX(-)
orange solid
Pin 3
RX(+)
white/green stripe
Pin 4
NC
blue solid
Pin 5
NC
white/blue stripe
Pin 6
RX(-)
green solid
Pin 7
NC
white/brown stripe
Pin 8
NC
brown solid
6.3.3 Data RS 422 – CAT5 RJ45
Pin 1
TX(+)
white/orange
Pin 2
NC
orange solid
Pin 3
NC
white/green stripe
Pin 4
TX(-)
blue solid
Pin 5
RX(+)
white/blue stripe
Pin 6
NC
green solid
Pin 7
NC
white/brown stripe
Pin 8
RX(-)
brown solid
6.3.4 Data RS422 – Hirose 10 Pin m
Pin 1: RX (+) or A
Pin 2: RX (-) or B
Pin 3: TX (+) or Y
Pin 4: TX (-) or Z
Pin 5: NC
Pin 6: NC
Pin 7: NC
Pin 8: NC
Pin 9: NC
Pin10: NC
