iHP Manual 98 | P a g e

iHP Owners Manual

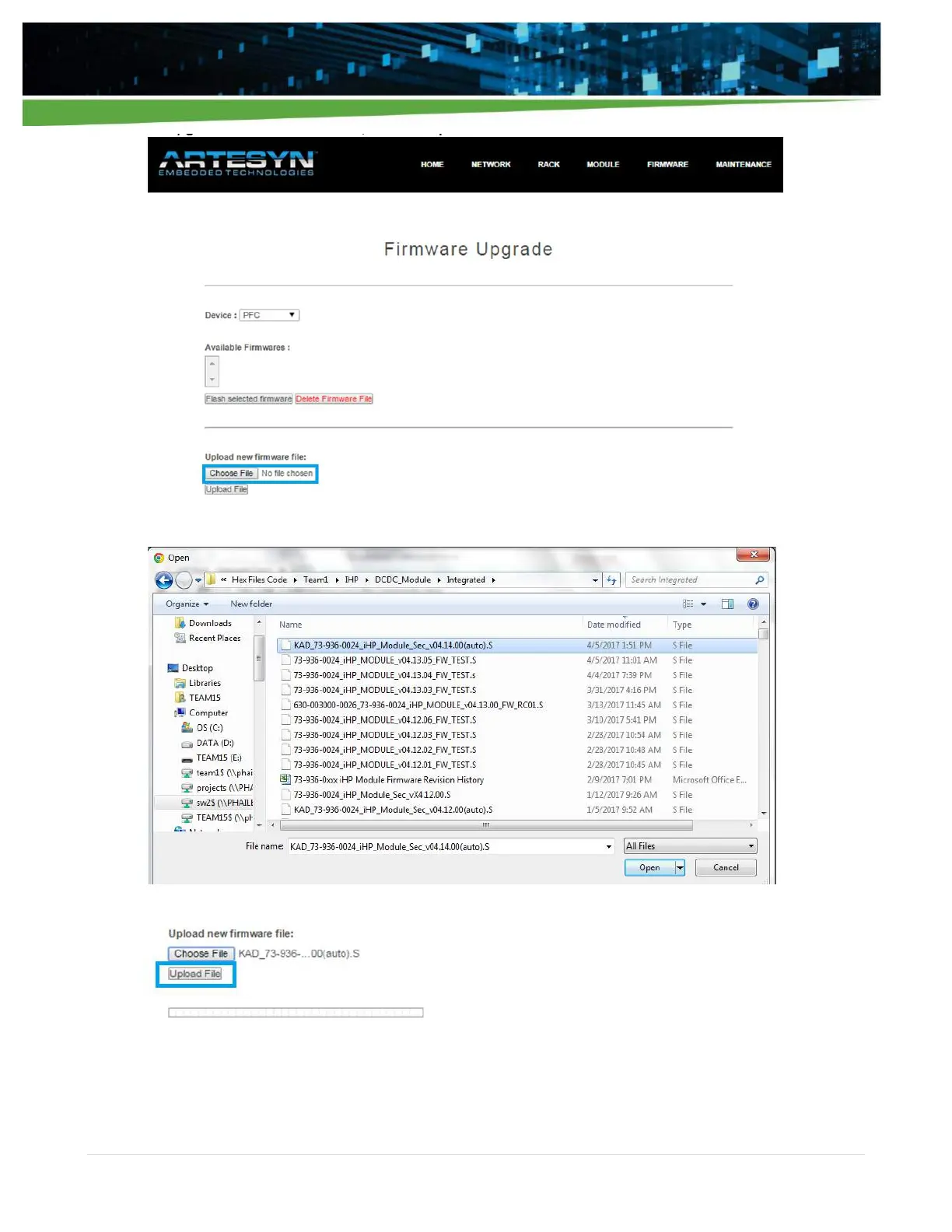

4. Select firmware file then click “Open”. Firmware file extension name is “.S”

5. Click “Upload File”
