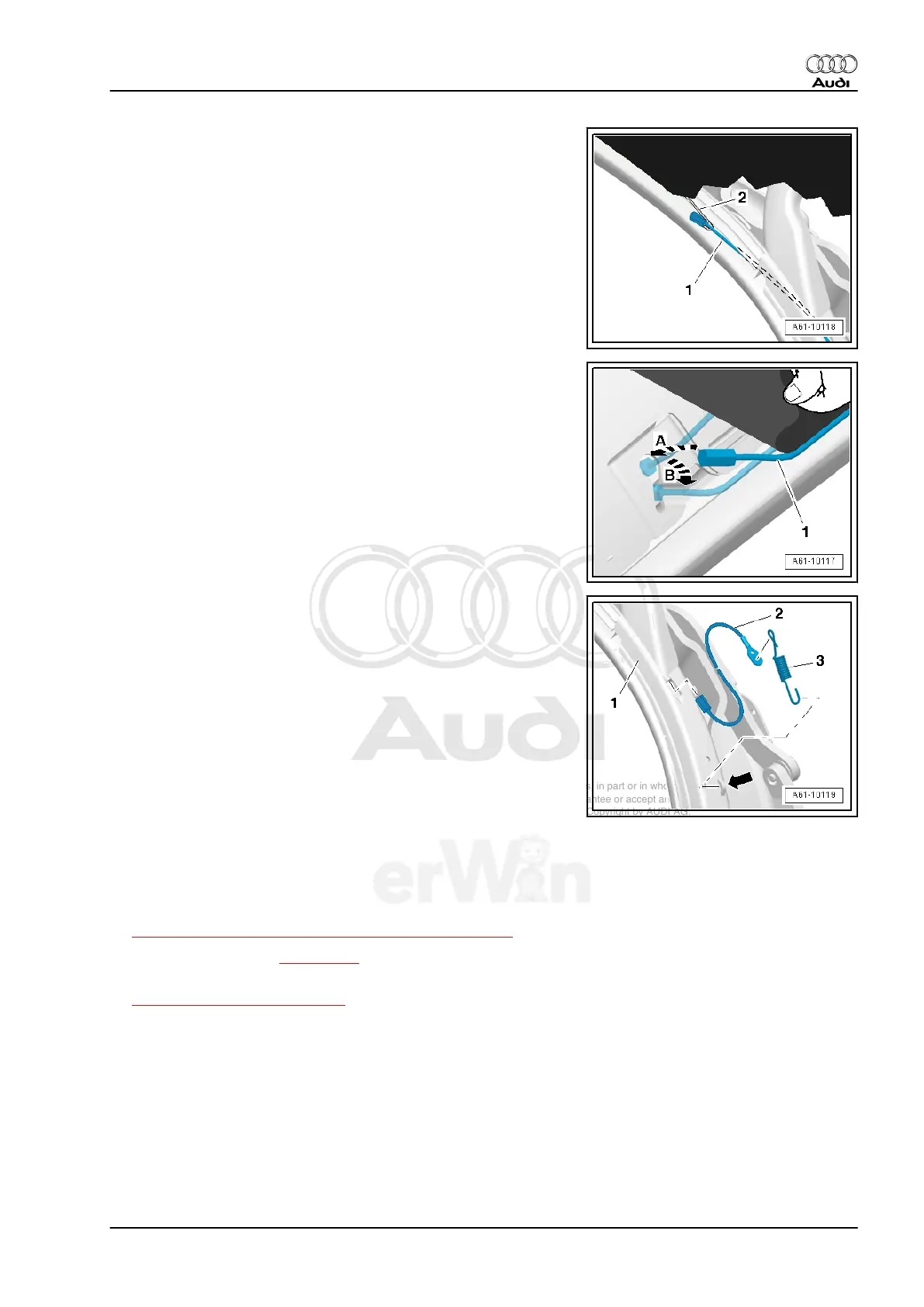

– Engage the tension cable in the hook as shown and pull for‐
ward.
– Engage tension cable nipple -1- in front rail
– Engage spring -3- in eyes -arrow- on main guide -1- and rear
tension cable -2-.
2.1.16 Convertible Top Cover
Removing
– Convertible top compartment cover trim disengaged from
bracket. Refer to
⇒ “2.1.8 Convertible Top Compartment Trim“, page 127
– Front cover removed ⇒ page 128
– Convertible top headliner removed
⇒ “2.1.20 Headliner“, page 136
Audi TT 2007 ➤
Body Exterior - Edition 11.2010
2. Removal and Installation 133
