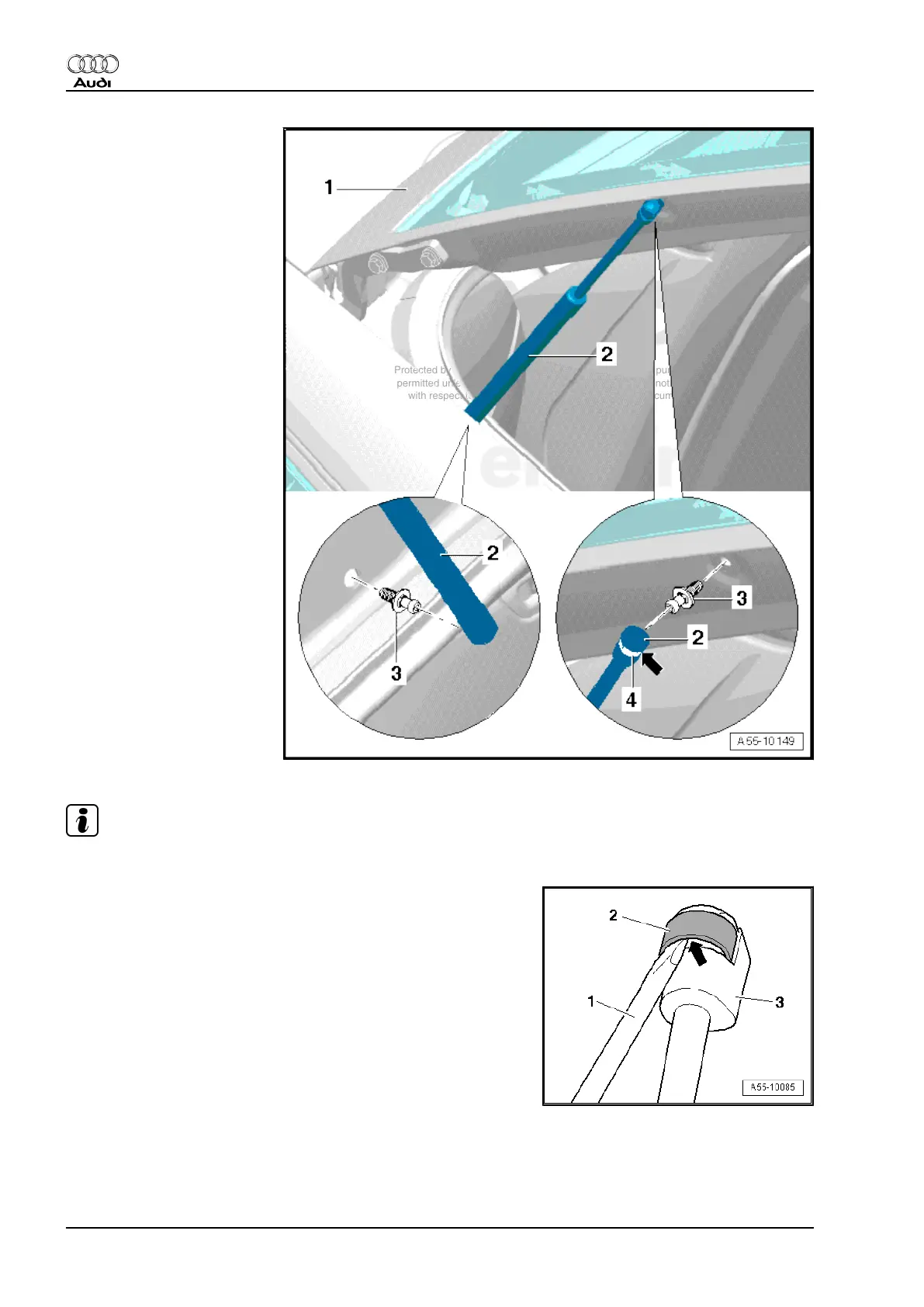

1 - Hood
2 - Gas strut
❑ Note the installation lo‐
cation and attach the
gas-filled strut tube on
the body side.
❑ Note different versions.
3 - Ball stud
❑ 21 Nm
4 - Retaining clip
❑ To release, raise slightly
with a small screwdriv‐
er.
❑ Note different versions.
Note
Different gas-filled struts are installed and their removal varies.
Removing the gas-filled strut with the steel spring
– Detach the gas-filled strut for the rear lid by lifting retaining
spring -2- using a small screwdriver -1- -arrow-. Now remove
gas-filled strut -3- from the ball stud.
Audi TT 2007 ➤
Body Exterior - Edition 11.2010
54 Rep. Gr.55 - Hood, Lids
