8.8 Clear CMOS and Recovery Jumper
There are two jumpers available on the module:
Clear Backup EEPROM: By shorting the pins of this jumper during boot, the values of the Backup EEPROM and the values of the NV-ROM are
invalidated, thus forcing the board to start up with default values.
BIOS Recovery: By shorting the pins of this jumper during boot the system is forced into crisis recovery mode. For more information see chapter 8.6.

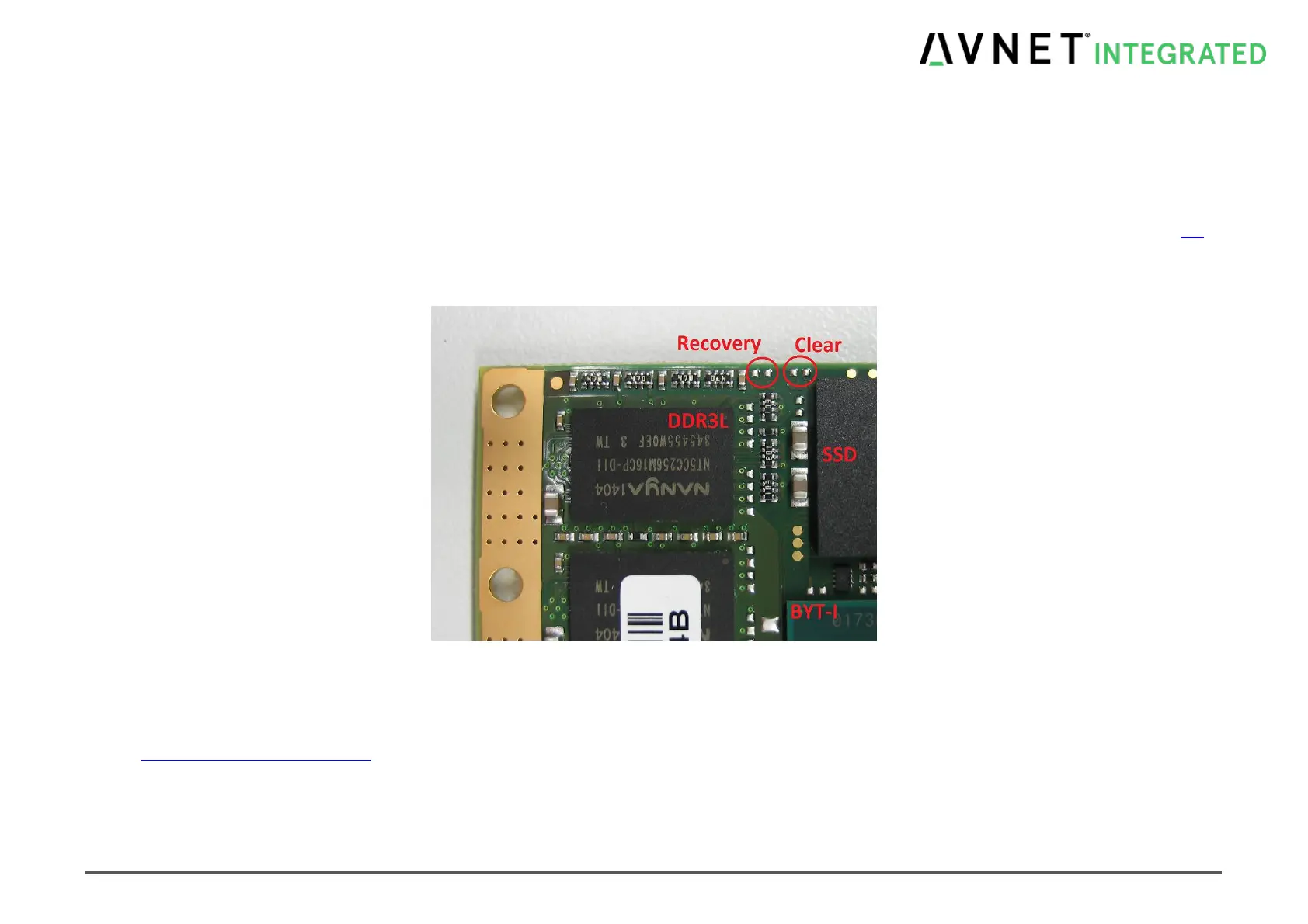

These jumpers are located on the top side of the board.
8.9 Post Codes
For Post Code information please look on the MSC Technologies Support Website or contact MSC Technical Support:
Email: support@msc-technologies.eu
Phone: +49 8165 906-200
