8. Input
8.2.4 SDI input
About SDI input
The Dual SD/HD/3G-SDI Input can accept standard-definition (SD), high-definition (HD) and 3 Gigabit-definition serial-digital-inter-
face (SDI) signals .
How to select
Select SDI (SD / HD / 3G / Dual) and press ENTER to open the selections

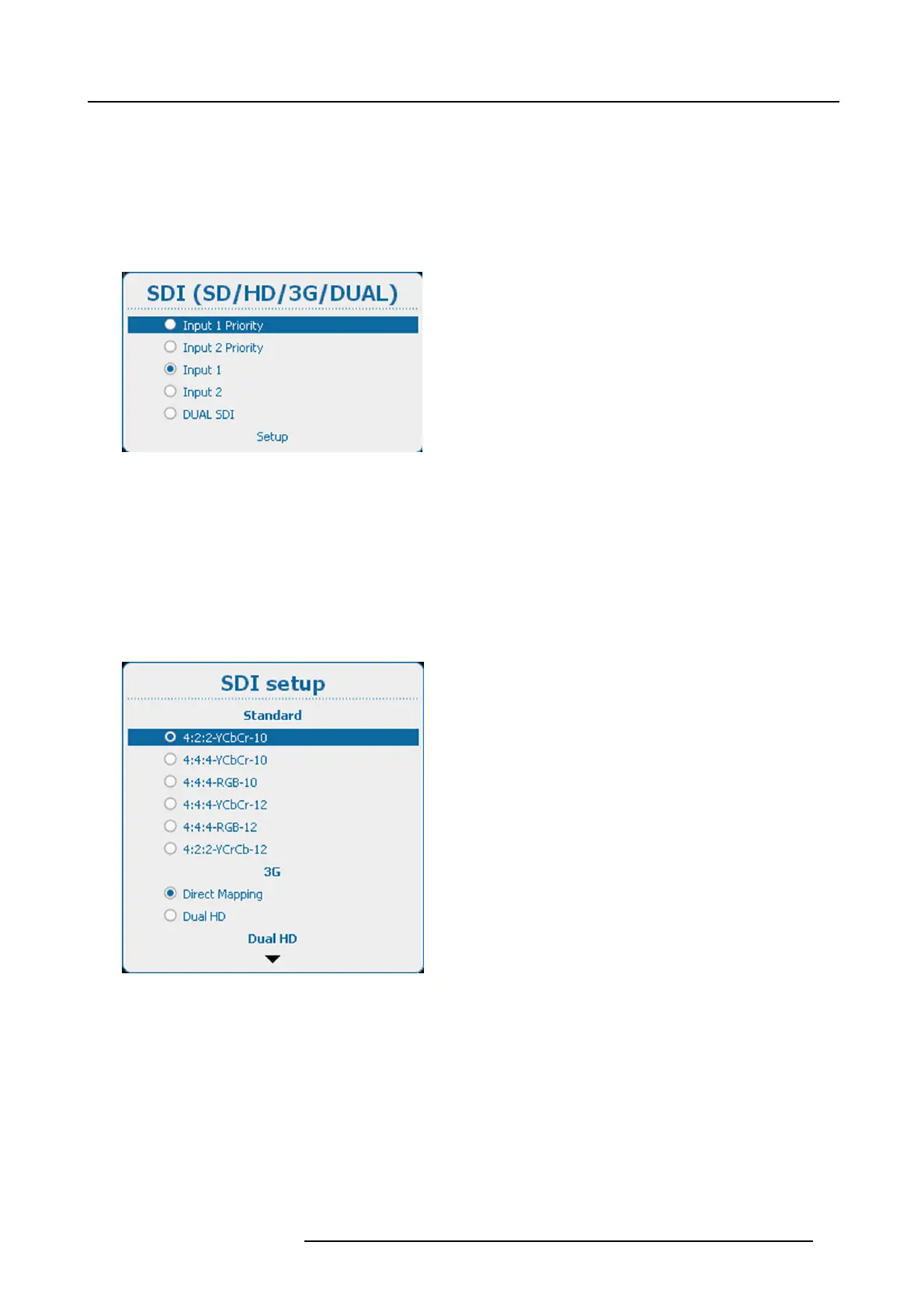

Image 8-5
SDI, input type selection
The following selections are possible:
• Input 1 Priority
• Input 2 Priority
• Input 1
• Input 2
• Dual SDI
SDI setup
To set up the SDI input, select Setup and press ENTER.
Image 8-6
SDI set up
First, select the standard. Use the ▲ or
▼ key to select and press ENTER to accept.
Standard :
• 4:2:2 - YCbCr-10
• 4:4:4 - YCbCr-10
•4:4:4-RGB-10
• 4:4:4 - YCbCr-12
•4:4:4-RGB-12
• 4:2:2 - YCrCb-12
Then, select the 3G setting. Use the ▲ or ▼ key to select and press ENTER to accept.
