12. Alignment
12.14.1 Introduction
Why ScenergiX ?
When working in a multichannel setup the HDX and its Soft Edge possibilities enable an image blending that gives the appearance
of a single view, thus achieving realistic immersion for the majority of wide screen applications.
ScenergiX is limited to half the resolution of the projector.

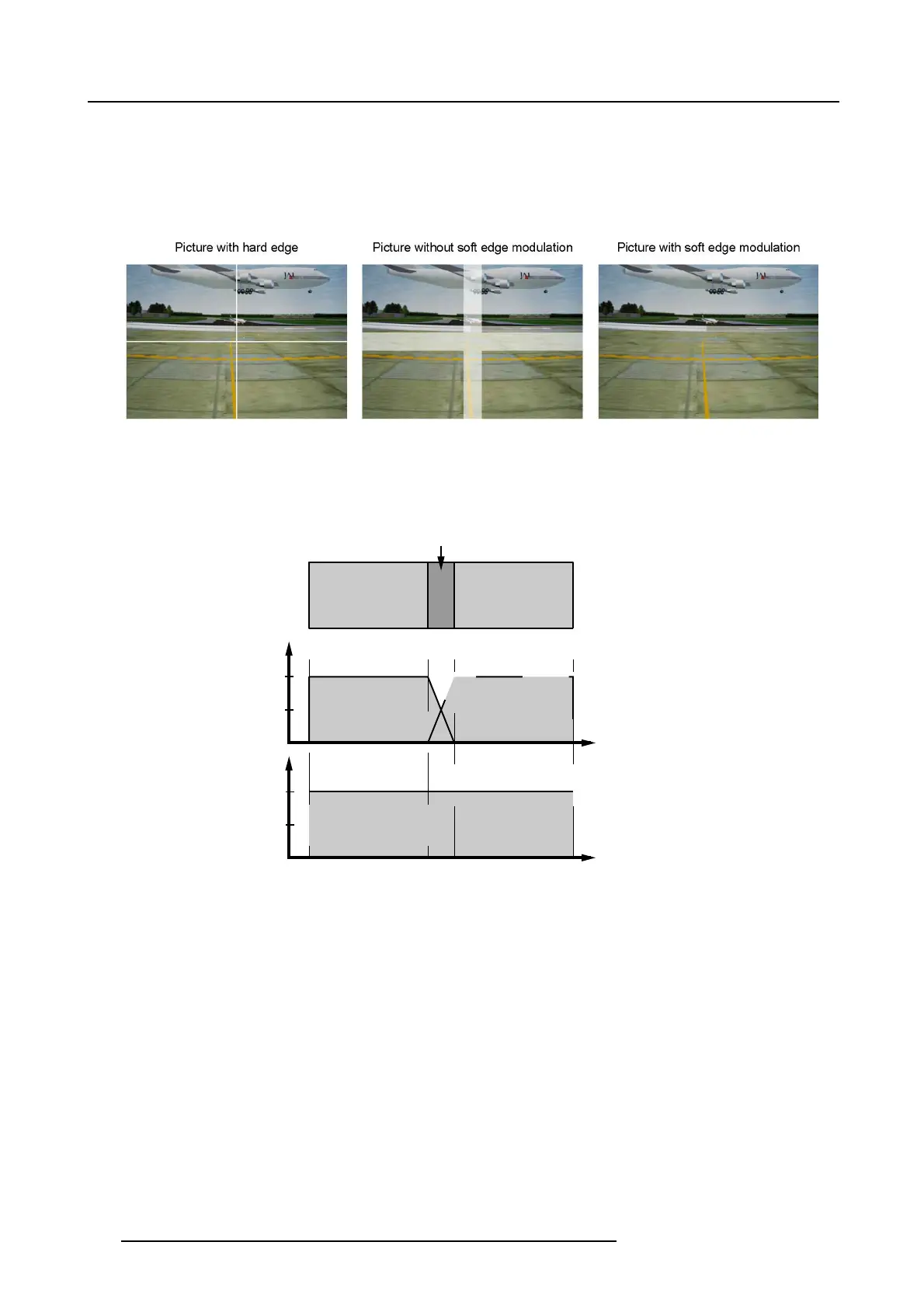

Image 12-68
Why Soft Edge?
What is the Basic Principal of ScenergiX ?
The principle of edge blending is achieved by linear modulation of the light output in the overlap zone so that the light output in that
zone equals the light output of the rest of the image.
Adjustable overlapping area
50%
100%
50%
100%
image 2image 1
image 2image 1
Light output per image
Total composite light output
Image 12-69
ScenergiX Basic Principle
