12. Alignment
12.8.5 Pin-Barrel correction
What can be done ?
Barrel and pincushion distortions can be adjusted.

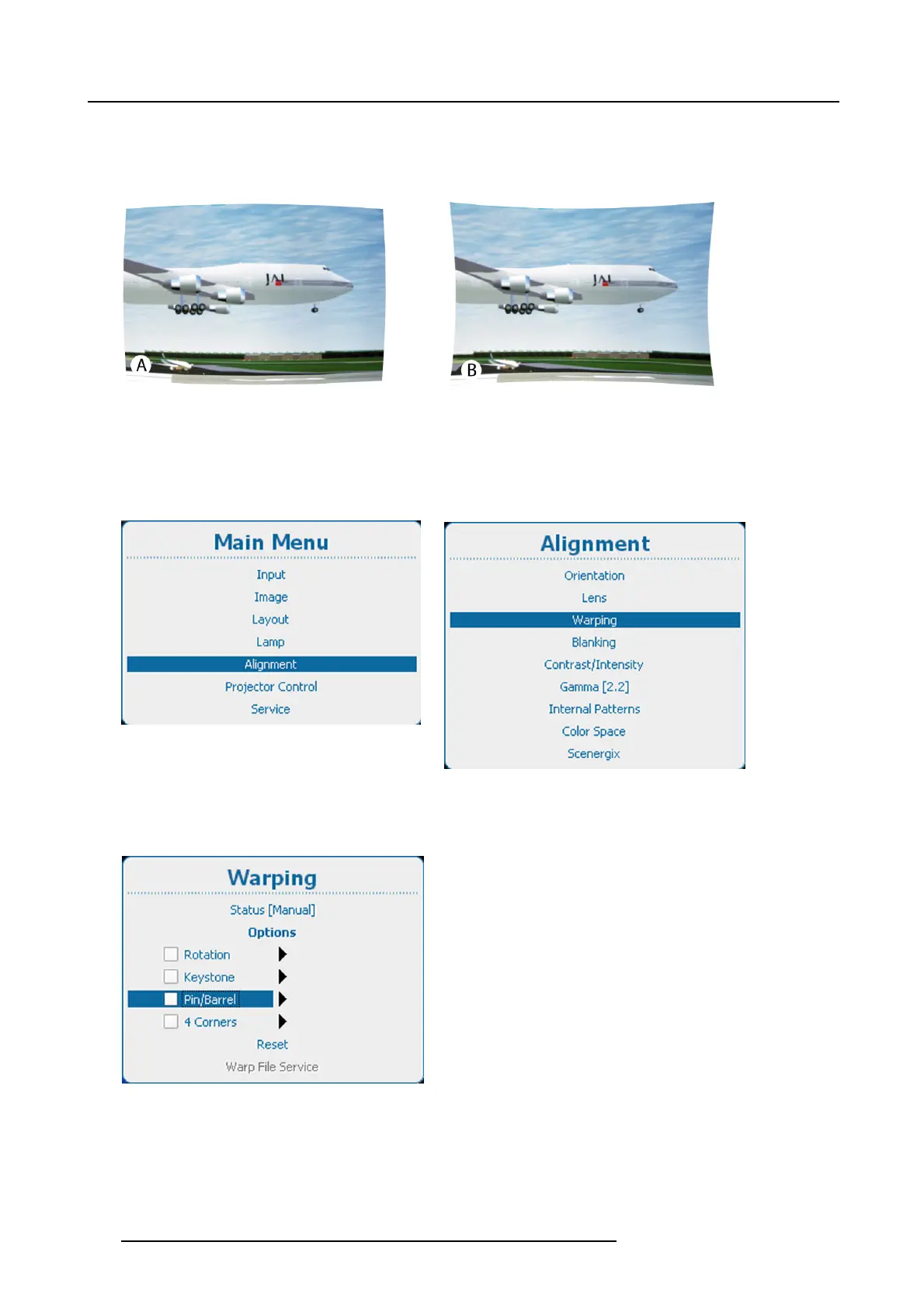

Image 12-37
Barrel and pincushion correction
A Barrel
B Pincushion
How to adjust
1. Press Menu to activate the menus and select Alignment → Warping .
Image 12-38
Main menu, alignment
Image 12-39
Alignment, warping
2. Press ENTER to open the Warping menu.
3. Use the ▲ or ▼ key to select Pin/Barre l.
Image 12-40
Warping, Pin/Barrel
4. Press ENTER to check the Pin/Barrel check box.
5. Use the ► key to open the keystone adjustments.
200
R5905032 HDX SERIES 01/06/2011
