2. General
2.5 Projector configurations
The different configurations
Depending on the installation the projector can be mounted in different ways, the different configurations are:
1. Front / Table (F/T)
2. Front / Ceiling (F/C) (upside down)
3. Front / Ceiling (F/C) (table position)
4. Rear / Table (R/T)
5. Rear / Ceiling (R/C) (upside down)
6. Rear / Ceiling (R/C) (table position)
Front projection
The projector is installed, either in a table mount or ceiling mount configuration, at the same side of the screen as the audience.
F/C
AUDIENCE
F/T
FLOOR
SCREEN

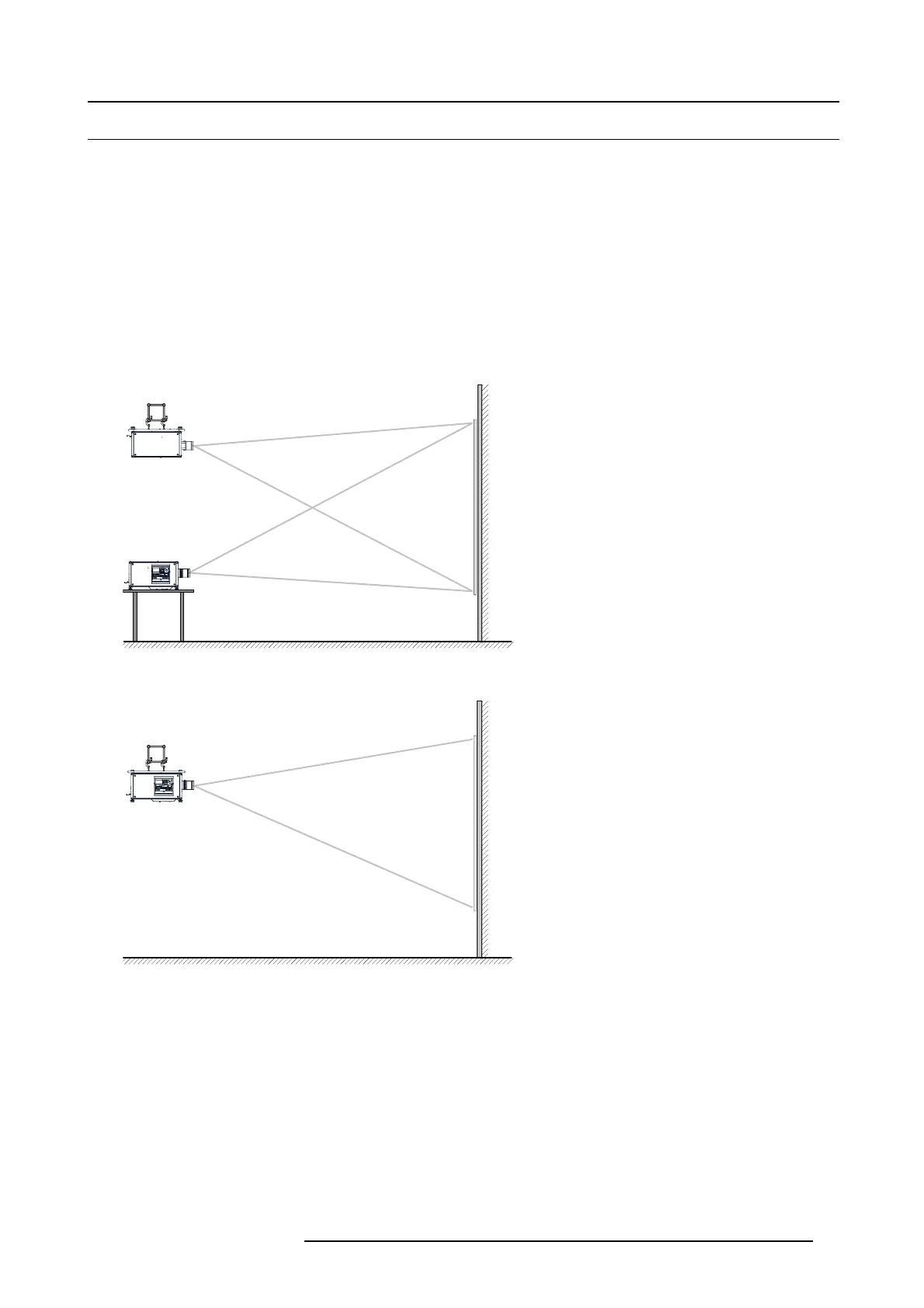

Image 2-4
Front projection
F/C
AUDIENCE
FLOOR
SCREEN
Image 2-5
Front projection, Ceiling mounted, in table position
Rear projection
The projector is installed, either in a table mount or ceiling mount configuration, at the other side of the screen opposite the audience.
R5905032 HDX SERIES 01/06/2011
17
