Barco HDX series User Manual

6. Quick set up adjustment
6.3 Direct Lens Adjustment (RCU)
Lens adjustment buttons on the Remote Control
On the Remote Control four buttons with double action are provided, allowing direct alignment for lens ZOOM, FOCUS, HORIZON-
TALSHIFTandVERTICALSHIFT.
1. Press LENS ZOOM button [-] or [+] (A) for correct image size on the screen.
CONTR
1
2
LENS
ZOOM
LENS
SHIFT
LENS
FOCUS
LENS
SHIFT
A
C
B
D

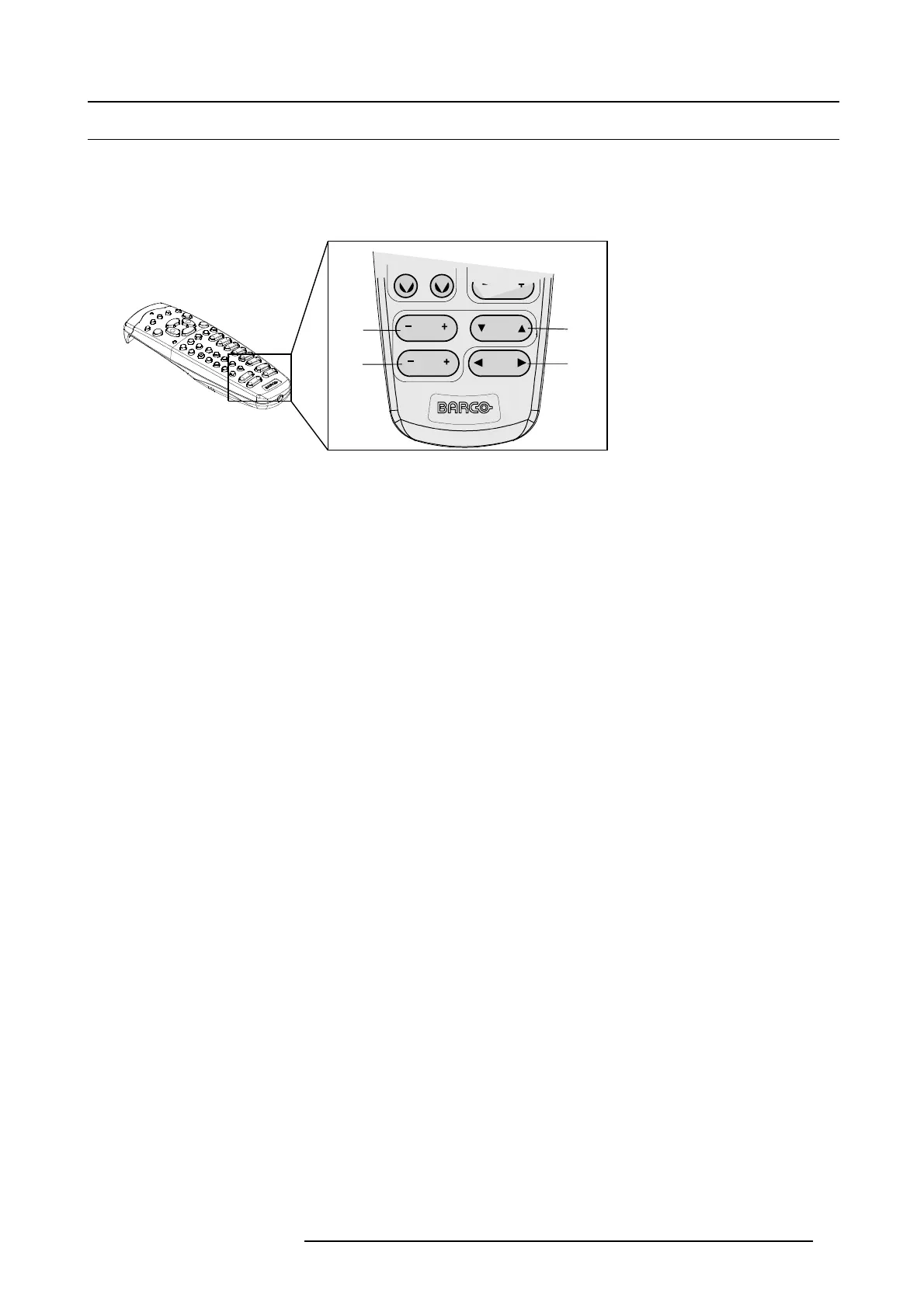

Image 6-4
Direct lens adjustment keys
AZoom
B Vertical shift
CFocus
D Horizontal shift
2. Press LENS FOCUS button [-] or [+] (C) for an overall focus of the image.
3. Press ▲ LENS SHIFT ▼ button for correct vertical position of t
he image on the screen.
4. Press ◄ LENS SHIFT ► button for correct horizontal position of the image on the screen.
R5905032 HDX SERIES 01/06/2011
81
