Barco HDX series User Manual

10. Layout
10.4.5 PiP window, position
What can be done?
The picture in picture window can be positioned on any place on the display just by changing its start coordinates. The reference is
the upper left corner of the window.
How to position

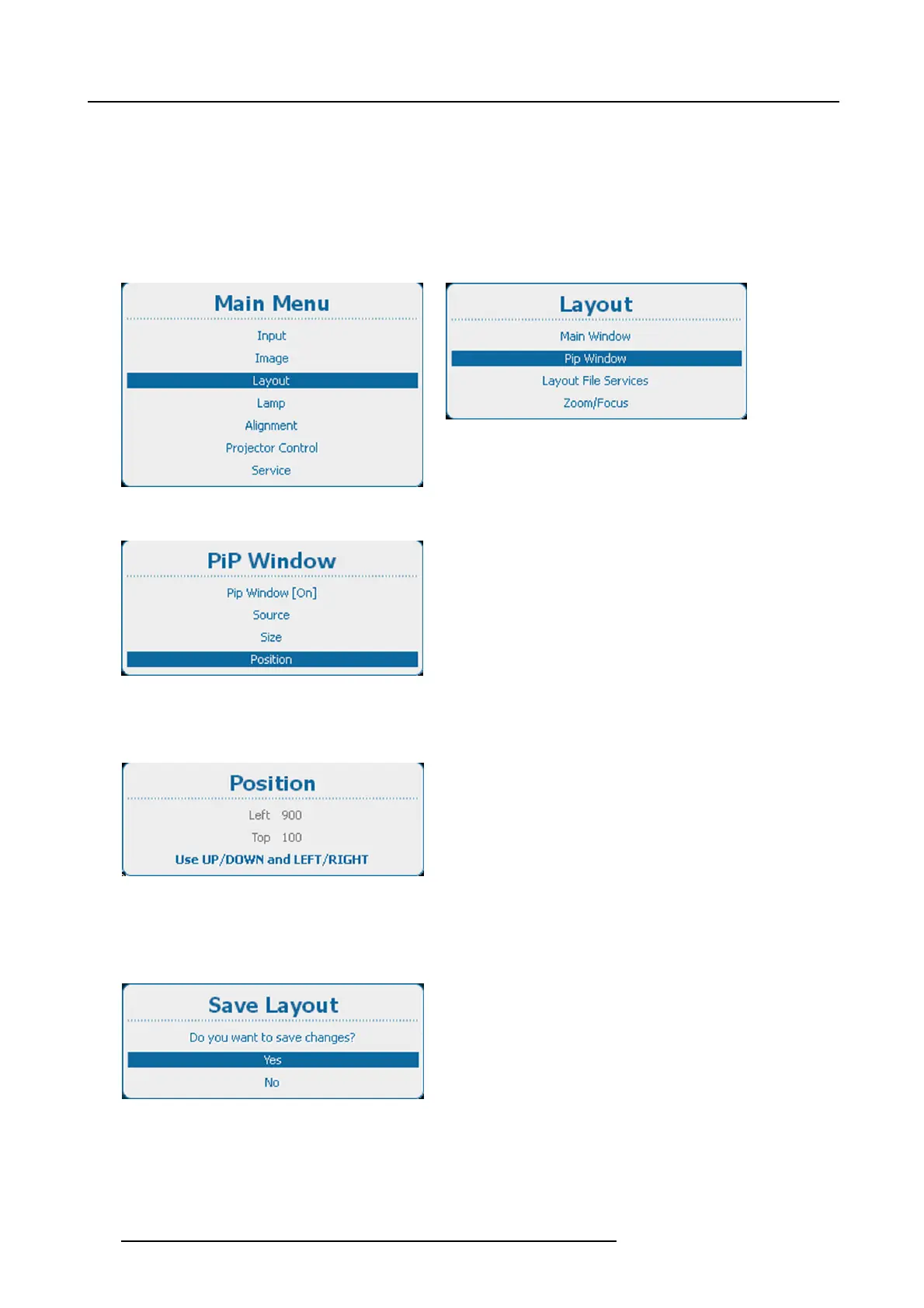

1. Press Menu to activate the menus and select Lay out → PiP window → Position.
Image 10-32
Main menu, layout
Image 10-33
Layout, PiP window
Image 10-34
PiP window, position
2. Press ENTER to select.
The Position window opens.
Image 10-35
Position window
3. Use the ▲ or ▼ key to change the Top position and the ◄ or ► key to change the Left position.
4. When desired position is reached, press EXIT.
A Sa ve Layo ut window opens.
Image 10-36
Save layout
5. Use the ▲ or ▼ key to select Yes and press ENTER to save.
Select No if you want to quit without saving the current position.
166
R5905032 HDX SERIES 01/06/2011
