Barco HDX series User Manual

14. Service
14.4 Internal Service Patterns
How to select
1. Press Menu to activate the menus and select Service → Internal S ervice Patterns.

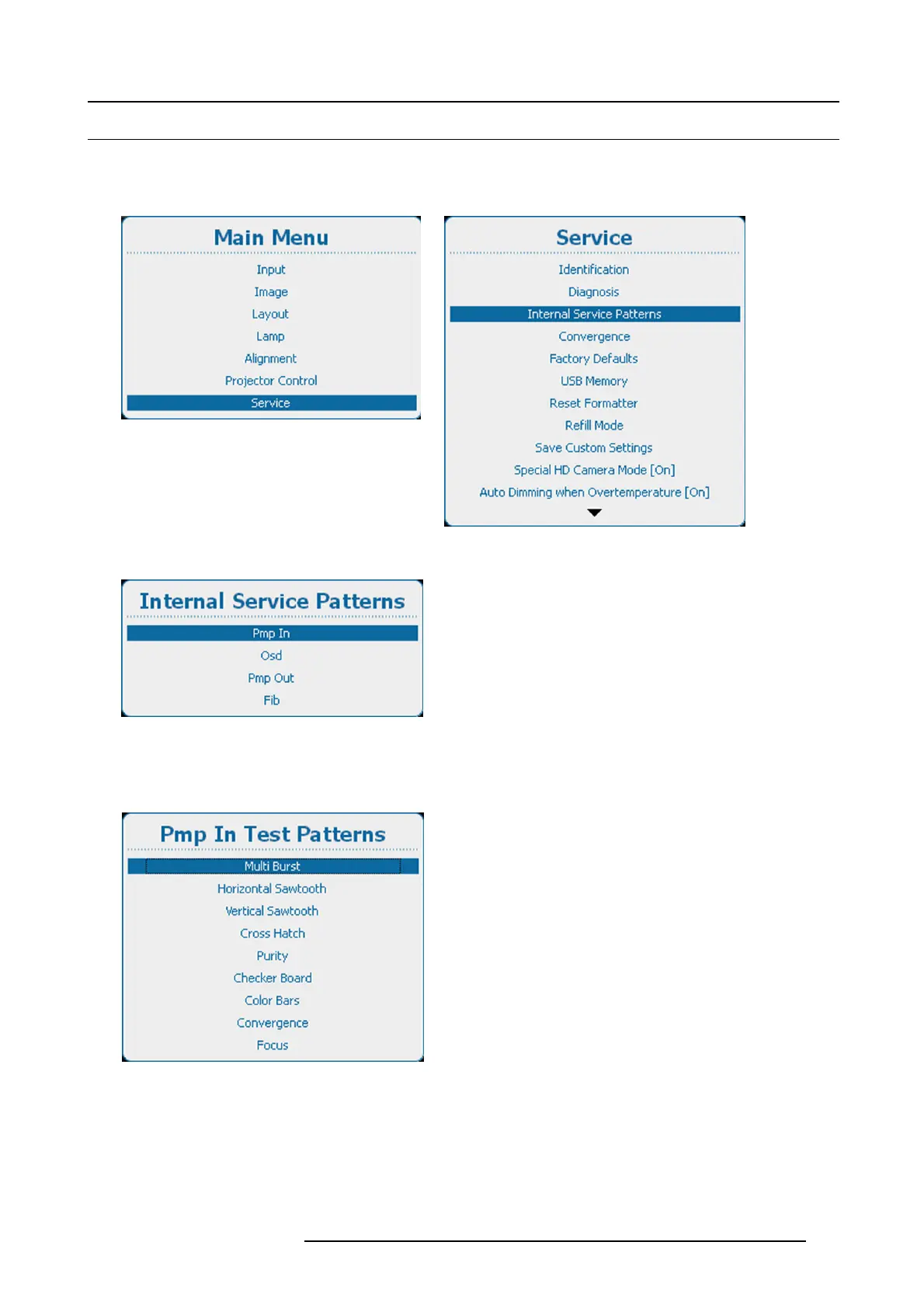

Image 14-33
Main menu, service
Image 14-34
Service, Internal service patterns
Image 14-35
Internal service patterns, Pmp In
2. Use the ▲ or ▼ key to select the desired internal service pattern and press ENTER to open a selection menu.
PmpInpatterns
Image 14-36
Pmp In test patterns
To change the options for the selected pattern, use he ► key to open these options. The number of options can change for the
different patterns.
R5905032 HDX SERIES 01/06/2011 277
