3. Physical installation
3.4 Alignment of a table mounted projector
How to align
1. Place the projector in the desired location. Take into account the zoom range of the used lens and the size of the screen.
2. Project one of the internal hatch patterns on the screen.

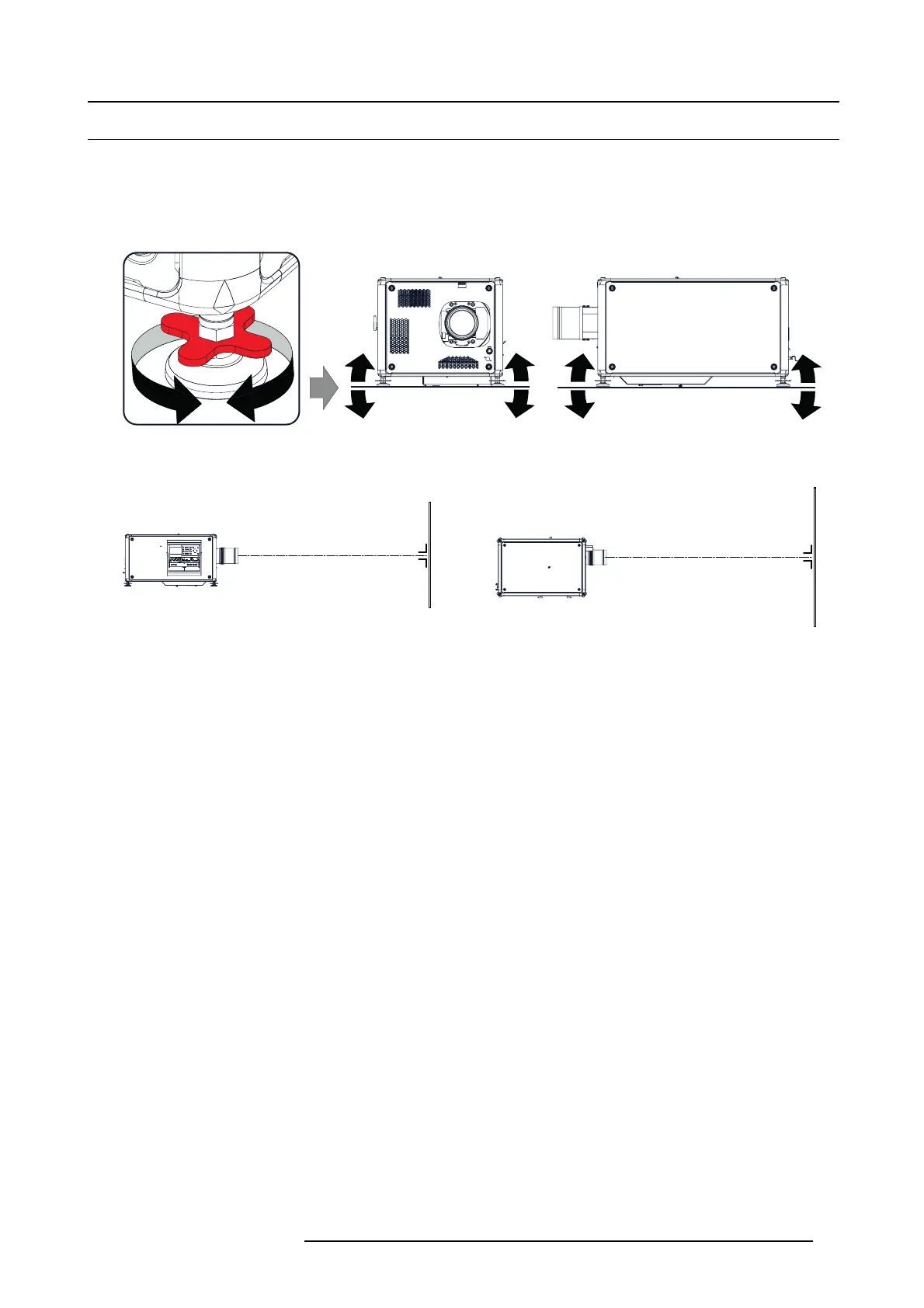

3. Turn the adjustable feet in or out until the projected hatch pattern has a perfect rectangle shape and is leveled.
Image 3-40
Level alignment
When this is achieved, the projector is set horizontal and vertical at right angles to the screen.
SCREEN
SCREEN
Image 3-41
Angle adjustment
R5905032 HDX SERIES 01/06/2011 45
