Safety
7990044_030_10 – 2078511 – 2023-01-19 19

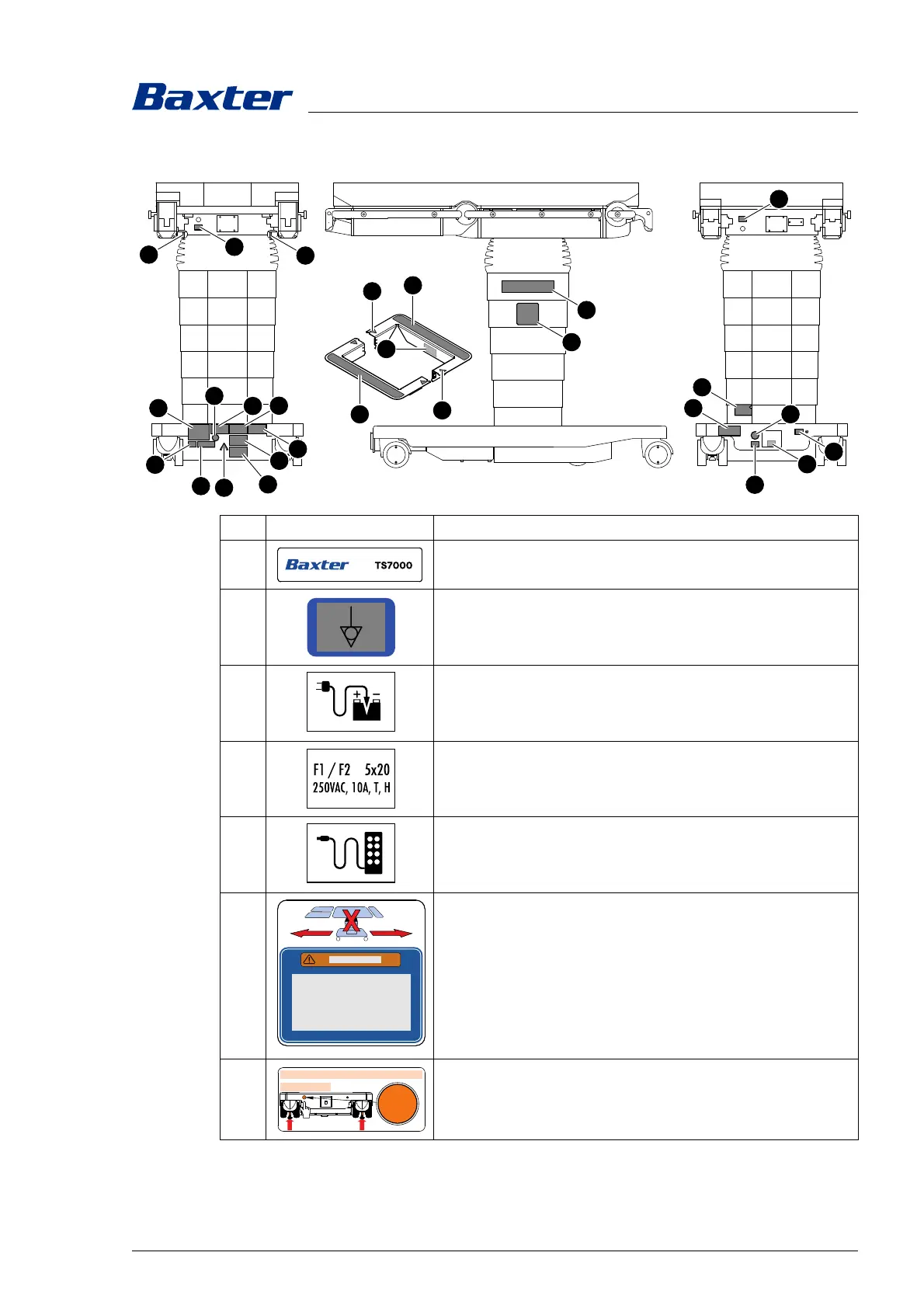

2.8.2 Position and meaning
A
F
I
J
L
U
P
H
O
Q
Q
K
K
T
M
B
D
C
G
E
E
N
N
R
S
K
T
No. Information notice Meaning
[A] Operating table name
[B] Connector pin for equipotential bonding cable
[C] Connector socket for the mains power cable
[D] 2x 10 AT fuses
[E] Connector socket for cable remote control
[F] Before retracting the floor jacks, lower the operating table
until the pictogram is covered.
[G] Emergency release button
