Use
7990044_030_10 – 2078511 – 2023-01-19 67

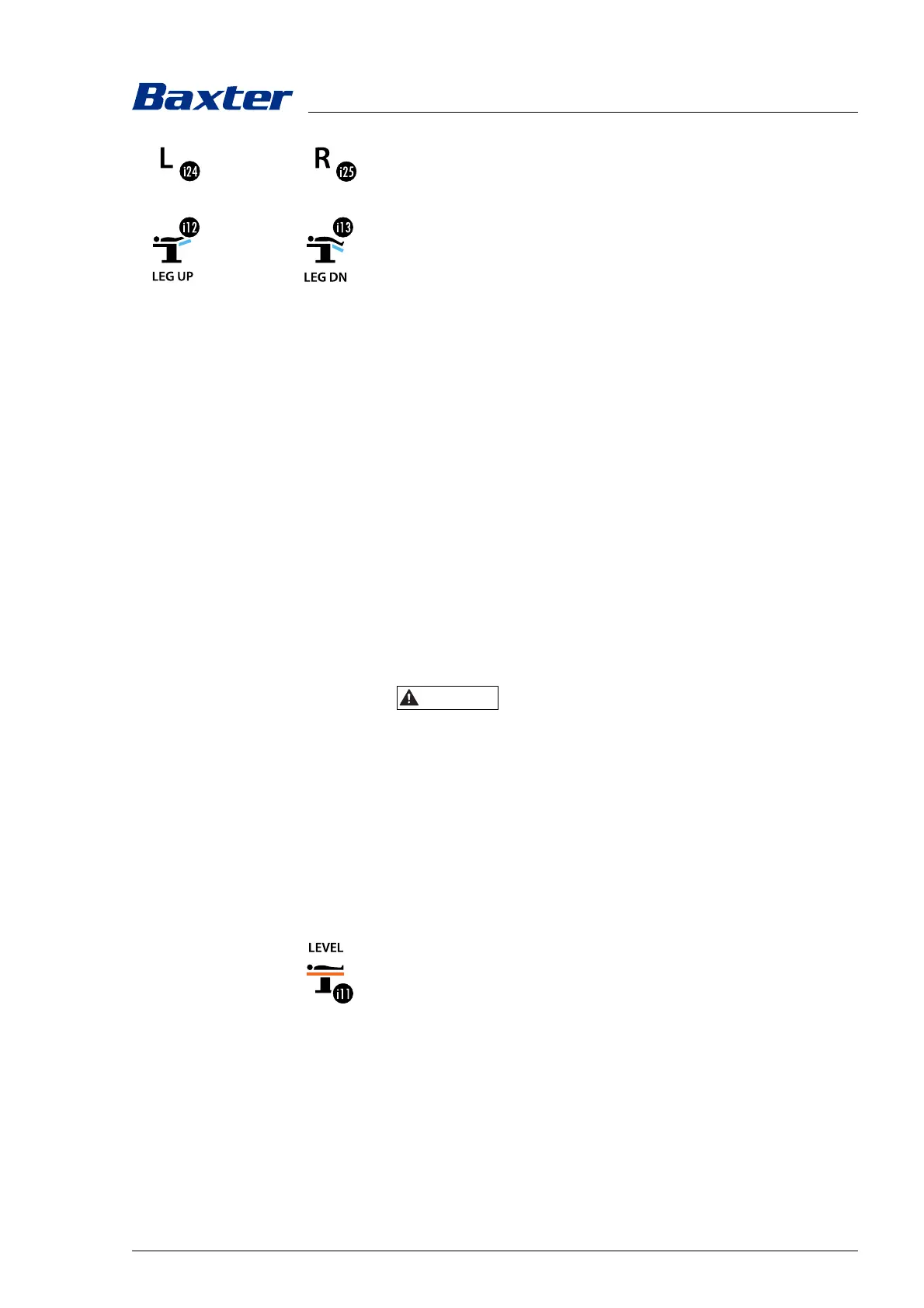

3. Select the joint on the remote control. To do this, press the
[i24] key for the left joint or the [i25] key for the right joint.
Only the display of the selected leg section lights up.
4. Move the joint upward using the [i12] key or downward using
the [i13] key.
A warning tone sounds (high-pitched single tone) as soon as
the joints are approaching one another
After a few seconds without pressing any key, it will automatically
switch back to the collective adjustment of the joints. The
indicators for the [i24] and [i25] keys are lit.
Restrictions:
The setting range of the joints is automatically restricted or
blocked in the following situations.
1. The joints cannot be adjusted individually if a closed tabletop
section is attached. The closed tabletop section is
automatically recognized by the operating table and the
functions of the individual joints are locked. The joints can
only be adjusted together.
2. Depending on the longitudinal travel, the downwards setting
range of the joints may be restricted. If a larger setting range
is required, the longitudinal travel needs to be changed.
3. The setting ranges for the normal and inverted patient
positions are different (see Chapter 10).
4. The leg section joints are locked once the extension adapter
is hooked onto the operating tabletop.
4.10.9 Level position
Risk to the patient due to the tilted position
• When approaching the level position, patient positions may
become more skewed than they were in the initial position.
Monitor the patient's position and stop the function before a
dangerous situation arises.
1. Adjust the spreadable leg sections so that they are not on top
of one another.
2. Arrange the accessory on the operating table in such a
manner that it does not collide with another accessories,
tabletop sections or the operating table during positioning.
3. Press the [i11] key. You will hear an audible signal when the
final level position has been reached. Indicator [i11] on the
column keypad lights up. A status message appears in the
remote control display.
A warning tone sounds (high-pitched single tone) as soon as
the leg section joints are approaching one another.
4. Manually place the mechanical joints of the tabletop sections
in the (horizontal) level position (aligning the gear markings).
