Description
7990044_030_10 – 2078511 – 2023-01-19 29
The handling behavior cannot be controlled with the TruSystem
7500 remote control.
3.4 Hook couplings

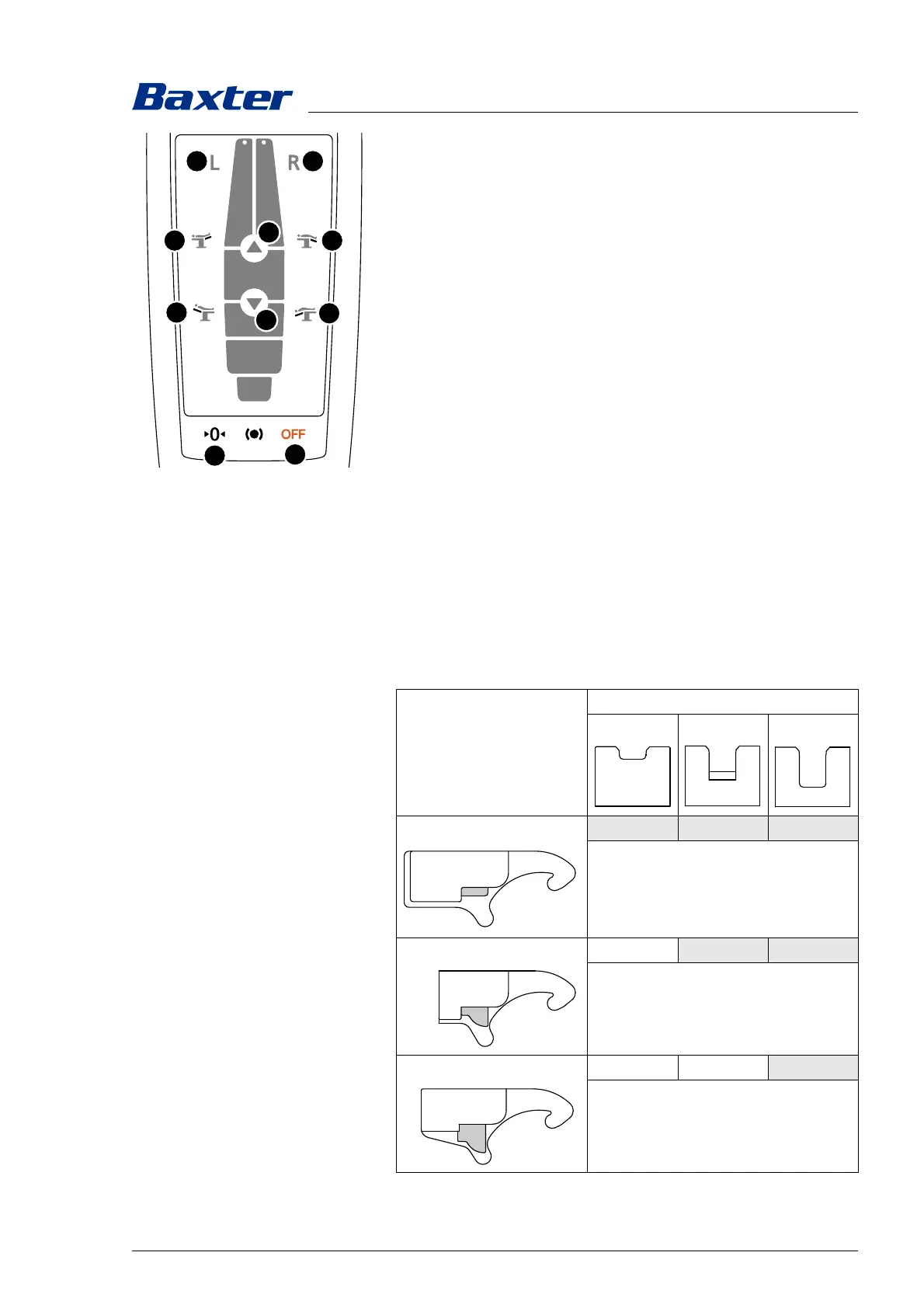

The hook coupling is a separable connecting point between the
operating tabletop and the tabletop sections. Each hook coupling
is made up of a fixing point or hook. The design of the fixing point
determines which hook can be attached. The hook couplings are
designed so that only certain combinations are possible, and the
configuration of the operating tabletop is always mechanically
secure. There are 3 different fixing points and hooks, which can be
combined as follows:
i2
i14
i15
i12
i13
i17
i16
i11
i24 i25
[i2] Switching off the operating table
[i11] Level position
[i12] Raise leg section joints
[i13] Lower leg section joints
[i14] Raise back section joints
[i15] Lower back section joints
[i16] Longitudinal travel toward head end
[i17] Longitudinal travel toward foot end
[i24] Select left joint
[i25] Select right joint
Hook coupling
Mount
SML
Hook with S encoding
x x x
Hook with M encoding
x x
Hook with L encoding
x
