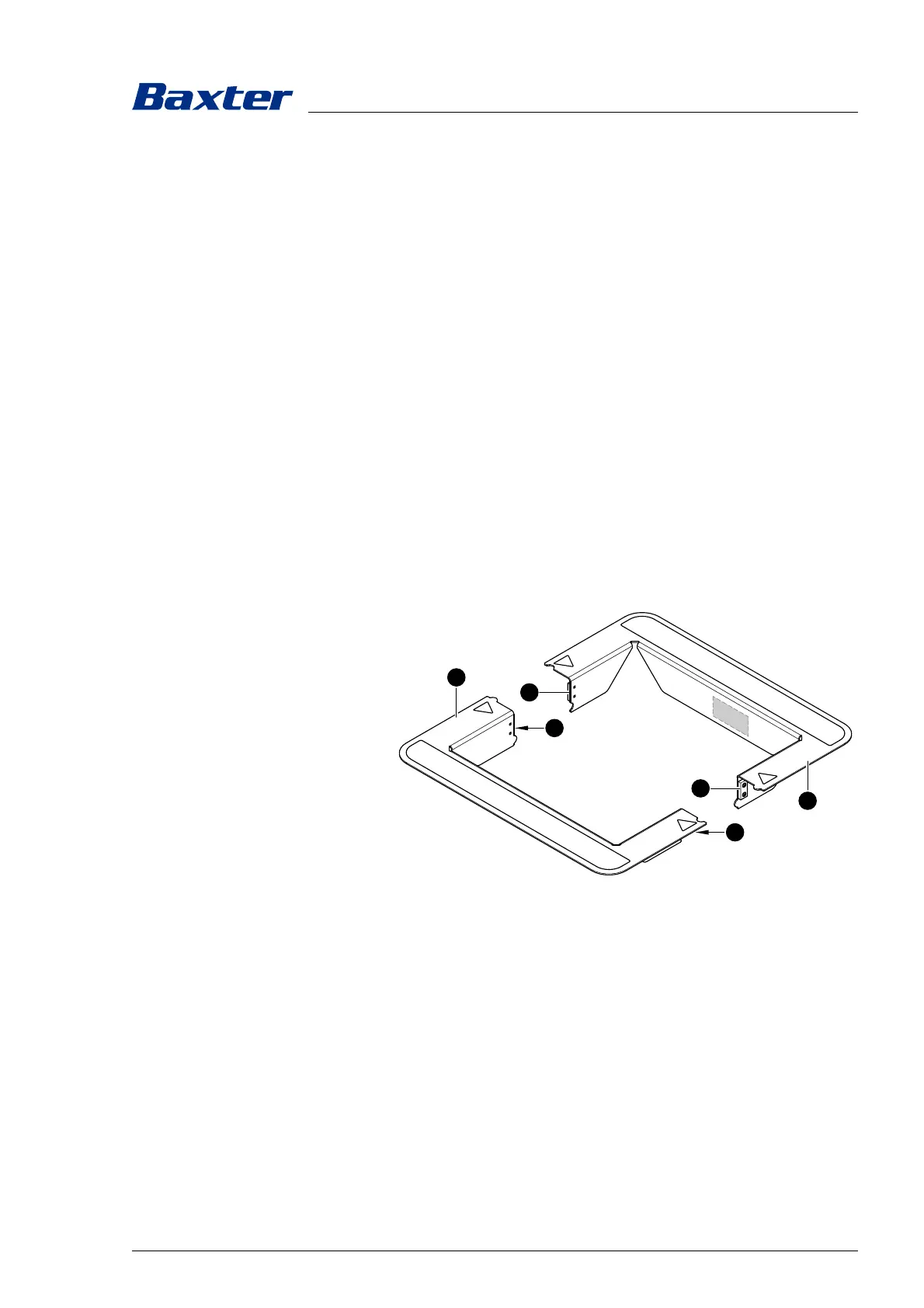

3.2 Column protection (Cladding Protection TS7000, #2069528)
The column protection prevents objects on the running gear being
placed too close to the column cladding. Objects which are in
contact with the column cladding may block the travel path during
the lift function on the operating table. The cladding parts may
bump into the objects and be damaged by the collision.
[14] Equipotential bonding cable connector pin
[15] Connector socket for power cable
[16] Wheel
[17] Fifth wheel for running gear assistance (directional travel/
drive mode)
[18] Running gear emergency release button (under the label)
[19] Mains power cable
[20] Equipotential bonding cable
[21] Head end of the operating table
[22] Foot end of the operating table
[23] Reset button
[24] Cover cap
[25] Leg section joint side rail (not operating table version U)
[26] Jack props
[27] 2-part cladding protection
[28] Side rail for back section joint
[27] 2-part cladding protection
[29] Magnet
