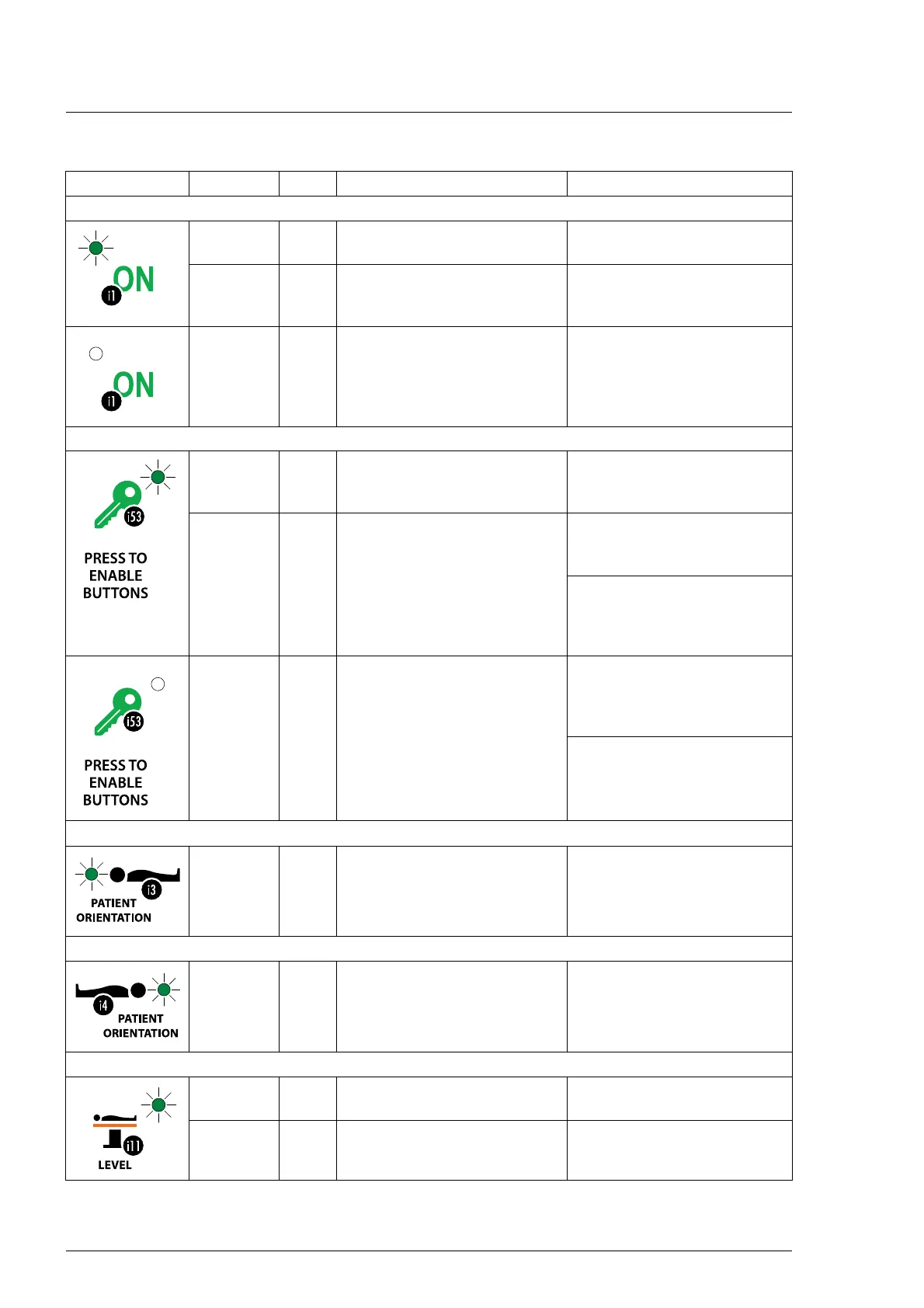

3.8 Visual displays and indicators
Display Status Color Meaning Action
Ready [i1]
Illuminated green Operating table is switched on
and ready to use.
–
Flashing green In addition to indicator [i1], the
emergency mode indicator is
illuminated.
See indicator [i20]
Not
illuminated
– Operating table is switched off. Switch on the operating table
if necessary.
Key release [i53]
Illuminated green Column keypad is released. The
keypad locks 10 seconds after
the last key is pressed.
–
Flashing green In addition, a shrill single tone
(warning tone) sounds.
Column keypad locked.
A locked key was pressed on
the keypad. Direct operation of
the operating table using the
column keypad is not possible.
Press key [i53]. The keypad is
released for operation for 10
seconds.
Select functions on the
column keypad using the two-
key control.
Not
illuminated
– Column keypad locked.
Direct operation of the
operating table using the
column keypad is not possible.
The OFF key is an exception.
The operating table can be
turned off at any time using the
OFF key on the column keypad.
Press key [i53]. The keypad is
released for operation for 10
seconds and the indicator is
constantly illuminated.
Select functions on the
column keypad using the two-
key control.
Head position left [i3]
Illuminated green Indicator corresponds to the
head position of the patient on
the operating table.
–
Head position right [i4]
Illuminated green Indicator corresponds to the
head position of the patient on
the operating table.
–
Level position [i11]
Illuminated green The operating table is in level
position.
–
Flashing green Leveling of the operating table
is incomplete.
Inform the Technical
Customer Service.
