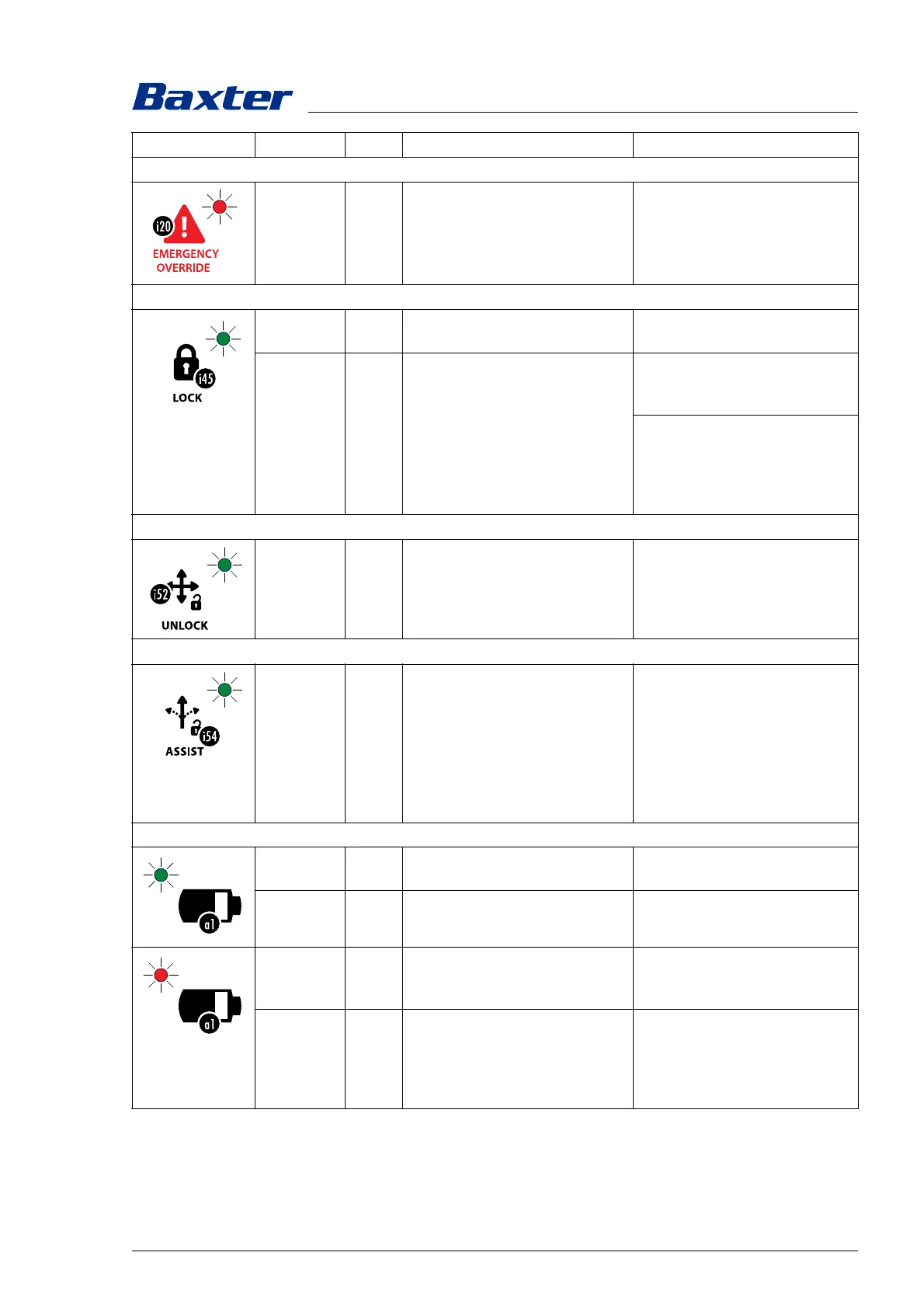

Emergency operation [i20]
Illuminated in red In addition to indicator [i20], the
operational readiness indicator
[i1] flashes.
The operating table emergency
mode was activated manually.
Block the defective operating
table from use for subsequent
operations.
Inform the Technical
Customer Service.
Locking (jacking up) [i45]
Illuminated green The operating table is jacked
up.
–
Flashing green In addition, a shrill single tone
(warning tone) sounds.
The operating table is free to
move or running gear
assistance is active. A function
has been selected which is
locked for this status (operating
table unlocked).
Press key [i45]. The operating
table is being jacked up; the
indicator light goes out.
The indicator is constantly
illuminated if a locked key is
pressed when 10 seconds have
passed since the last key was
pressed.
Freewheel [i52]
Illuminated green The operating table is activated
for free movement.
–
Running gear assistance [i54]
Illuminated green Operating table movement is
assisted by an additional wheel
in the center under the running
gear.
The operating table can be
rotated about its center,
shifted into direction travel, or
moved with the drive mode
*1
.
–
Battery status [a1]
Illuminated green Operating table is fully
charged.
–
Flashing green Operating table is charging. –
Illuminated in red Operating table requires
charging.
Establish an external power
supply connection for the
operating table.
Flashing in red Operating table battery is
discharged. Electrical
functions are severely limited.
Operating table shutdown is
imminent.
Establish an external power
supply connection for the
operating table.
