Chapter 9 Photo-Eyes

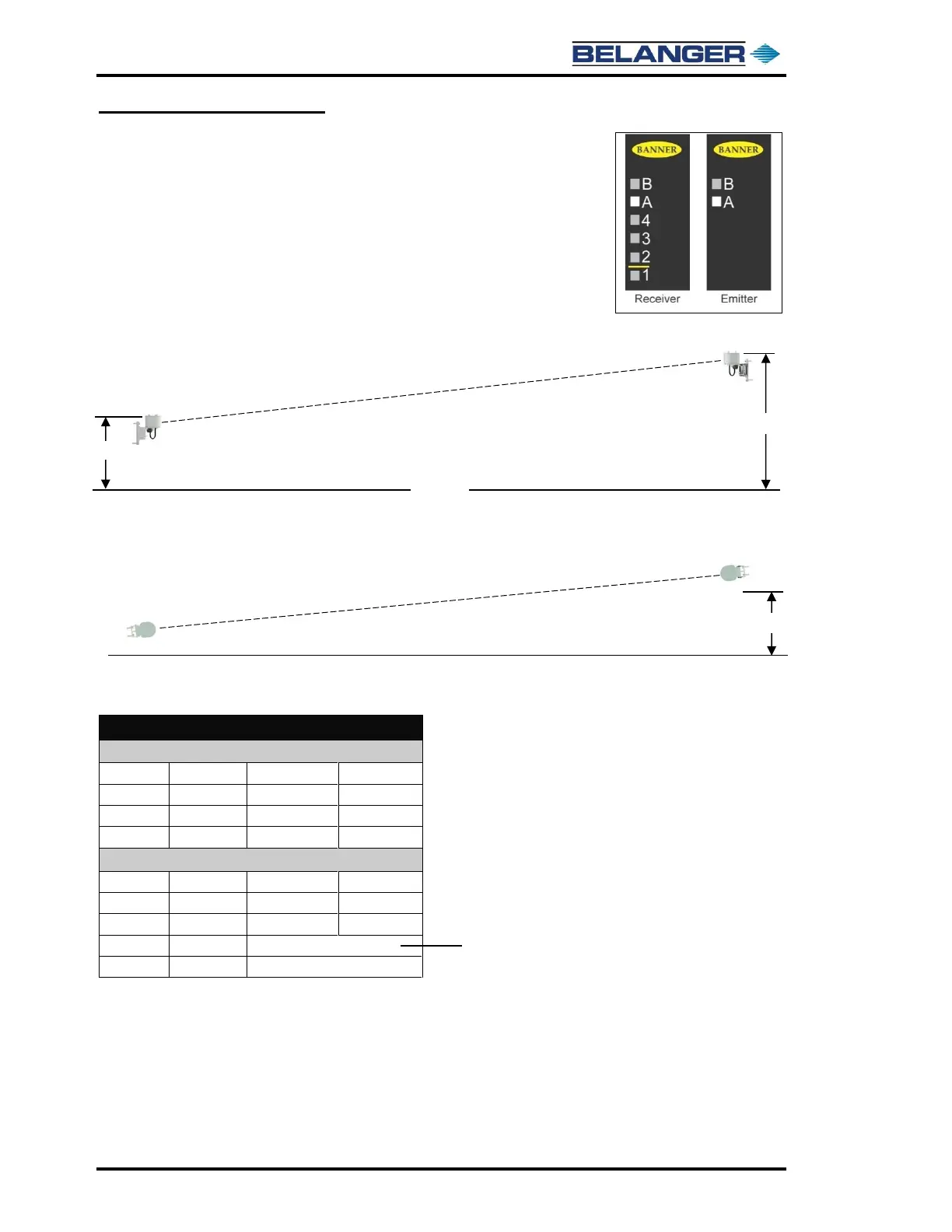

Photo-Eye: General Setup
Modulation Frequency
The standard configuration for Photo-Eyes is to utilize Frequency A
(shown in the image to right). However, if a system installation has
the possibility for “Photo-Eye Cross-Talk”, the affected Photo-Eye set
may be configured to utilize Frequency B. In the case of “Photo-Eye
Crosstalk” both Emitter and Receiver must be wired for Frequency B.
View from Bay Entrance
View from Overhead
Photo-Eye: Wiring
Wiring for the Vector QS30
Emitter
Brown
706
24VDC
Blue
705
0VDC
Gray
706
24VDC
White
No Connection
Receiver
Brown
706
24VDC
Blue
705
0VDC
Gray
706
24VDC
White
Cube® Input X4 – X12
Black
No Connection
If the Wall Mounted configuration is used, mount the Photo-Eyes at the heights indicated.
Mount the Photo-Eyes with a minimum of 6” offset.
6”
Receiver on PS
Emitter on DS
Emitter on DS
Receiver on PS
33”
16”
Floor
Reference Sheet 7 of the Electrical Schematics.
Actual input wire numbers can vary by site.
