Chapter 18 Pneumatic Connections

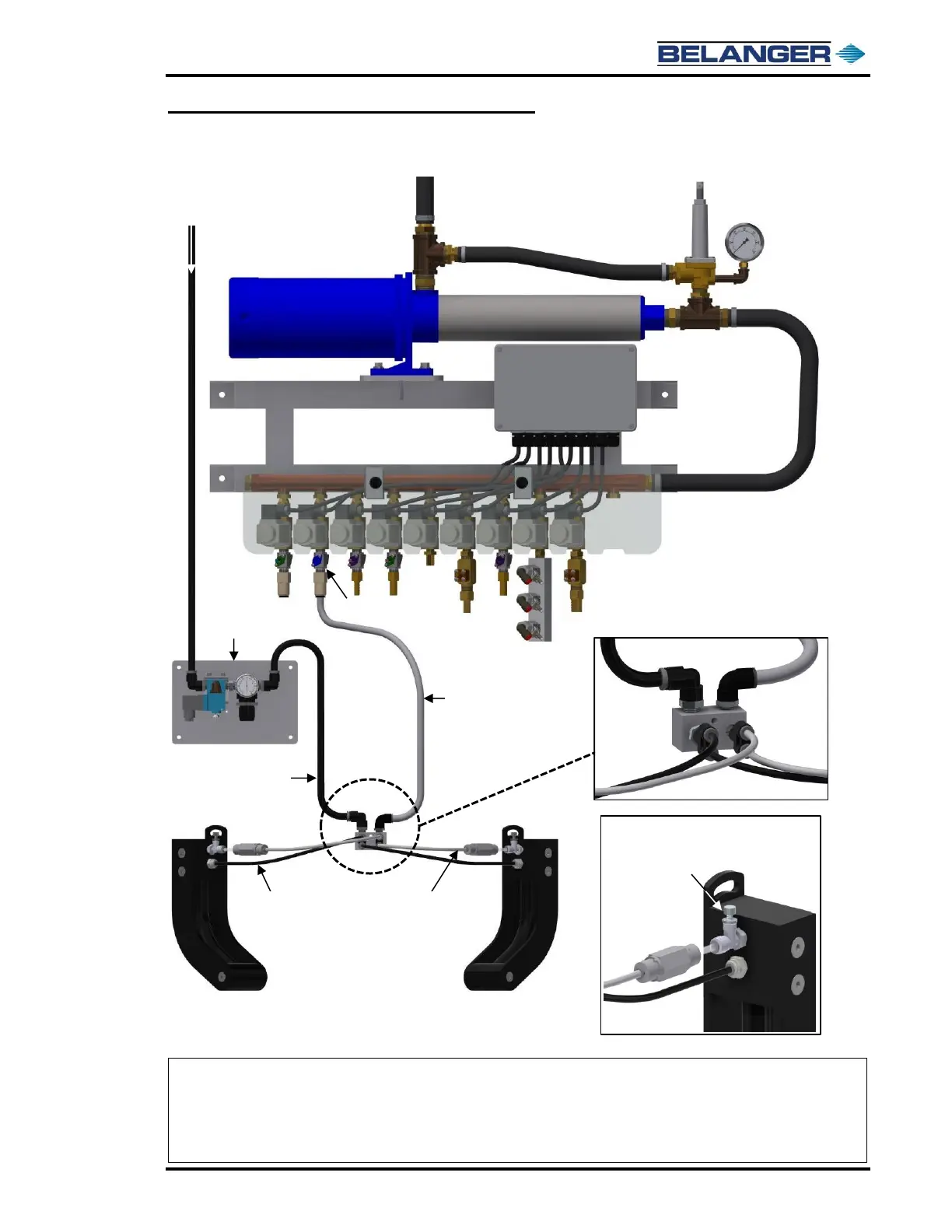

Single Foam Pneumatic & Chemical Solution Overview
Single Foam Pod
Assembly
(Passenger Side)
Single Foam Pod
Assembly
(Driver Side)
Single
Foam Air
Regulator
Panel
Airline to Single
Foam Feed Block
(1/2” Black Airline)
Air In From
Air Compressor
(1/2” Airline)
Chemical Solution to
Single Foam Feed Block
(3/8” Clear Airline)
Single Foam
Feed Block
ICS Assembly
Single Foam Chemical
Solution Injector Asy
.
Chem. Solution
from Feed Block
(1/4” Clear Line)
Airline from
Feed Block
(1/4” Black Airline)
Note: Air is supplied to the left side of the Feed Block and Chemical Solution is supplied to the right side
of the Feed Block.
Note: The air and chemical solution lines from the top of the ports always go to the driver side Foam Pod
and the air and chemical solution lines from the bottom of the ports go to the passenger side Foam
Pod.
Flow Control Valve to adjust for
proper balance of Chemical
Solution and Air
