Chapter 11 Air Panels
Air Panels: Overview
The Cube® will have up to three (3) Air Panels to be mounted in the Equipment Room. The three air
panels that will be provided are the Main System Regulator Panel which comes standard with the
Cube®, and the Triple Foam (TF) Air Panel and Single Foam (SF) Air Panel will be included if these
foaming options are selected.
The airline required to connect the Air Panel(s) to the Cube® system are to be field supplied. The
airline can be purchased through Belanger® or another source. If ordering through the Belanger®
Aftermarket group reference the part number in the chart below. Cable Ties are also suggested to
secure utility lines in place and are listed in the chart below.
For the electrical connections, it is recommended, you refer to the electrical schematic drawings
provided and contract a licensed electrician. All the electrical wires, conduit, and conduit fittings are
to be field supplied.
Part Number
Qty.
Description
Wash Application(s)
1AIRLN839
1
1/2" black poly x 100-foot bag
Main Air, Triple Foam Air, Single Foam Air
1TIE800
2
Cable Ties heavy duty bag of 100
For all airlines and hoses as needed
Utility Manifold
located in Bay

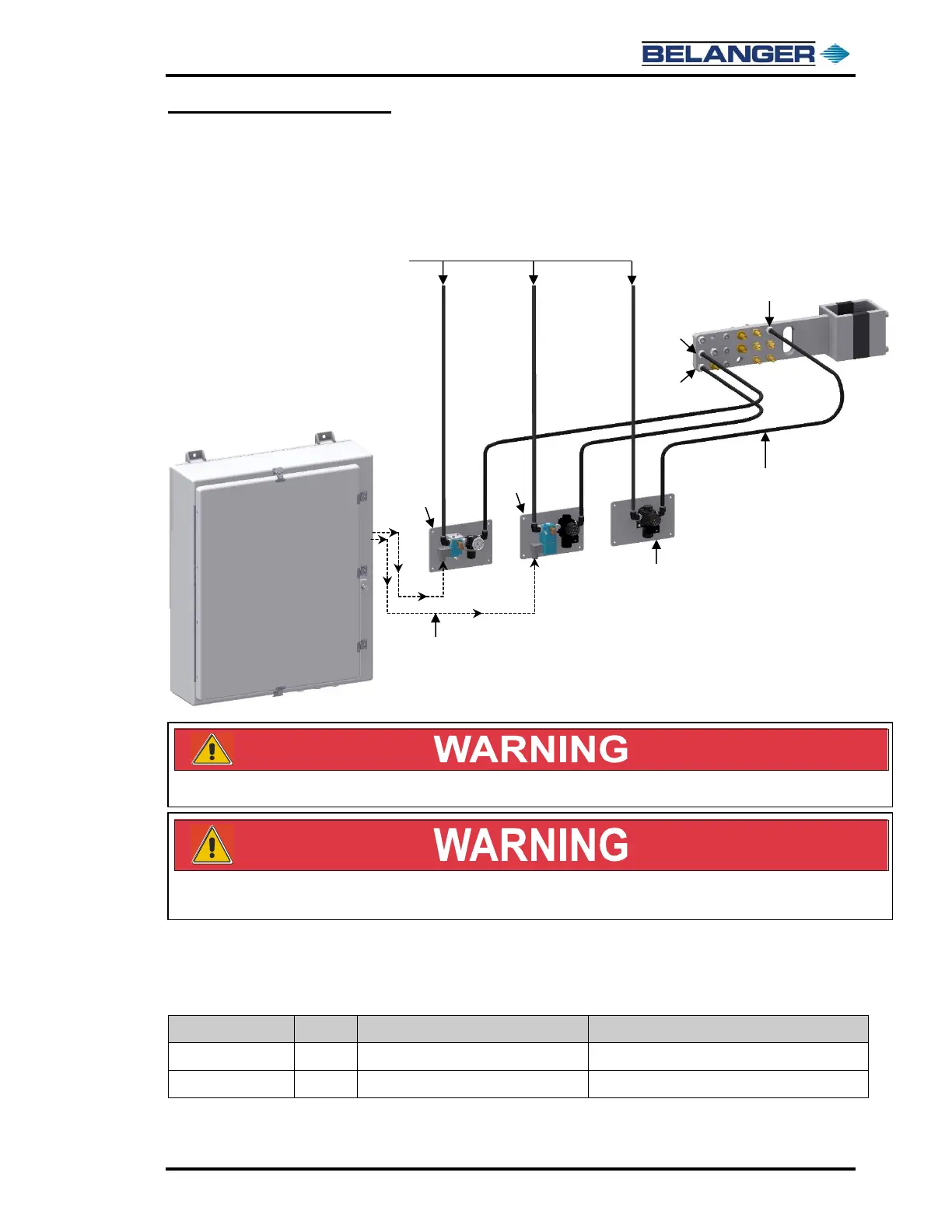

Airlines “Out” to Utility Manifold
Three (3) 1/2" black airlines
field supplied
TF Air
Fitting
Building Panel
110/120VAC from
Building Panel
field supplied
All Conduit and Cables to
and from Building Panel
are to be field supplied.
TF Air
Panel
SF Air
Panel
Main System
Regulator Panel
Main Air Supply “In”
1/2” black airline
field supplied
DISCONNECT AND LOCKOUT ELECTRICAL POWER BEFORE SERVICING ANY EQUIPMENT!
It is recommended that a Licensed Electrician is contracted to perform all electrical installations.
Be sure to follow local electrical codes when choosing wiring material and when routing electrical wires.
SF Air
Fitting
Main Air
Fitting
