Cube
®
Installation & Startup
1MANUL963 Belanger, Inc. * PO BOX 5470. * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 18-5

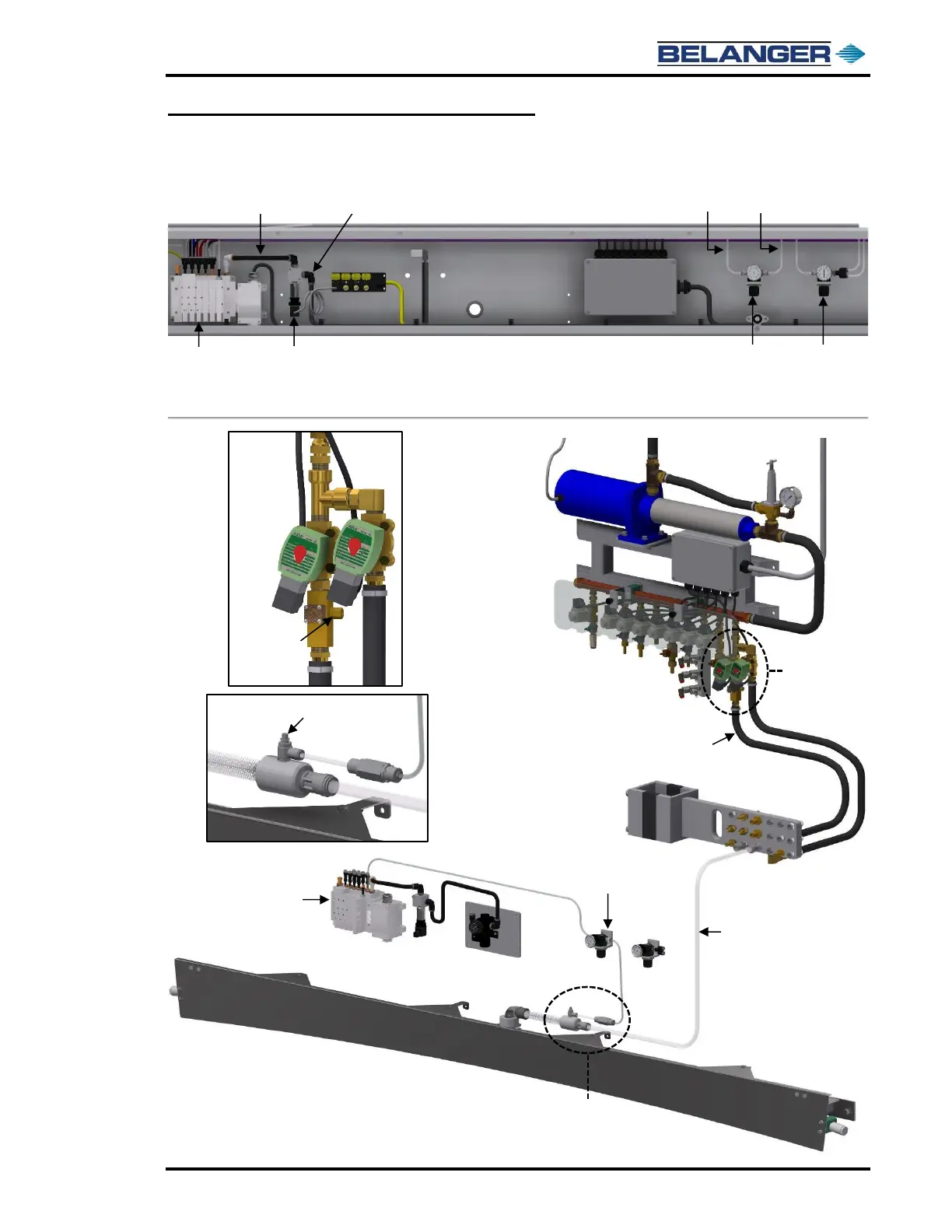

Chapter 18 Pneumatic Connections
OverGlow™ Pneumatic & Chemical Solution Overview
Pneumatic Manifold
Assembly
Low Air Pressure
Switch Assembly
Air to Pneumatic
Manifold Assembly
(1/2” black airline)
Air “IN” from Main
System Regulator Panel
(1/2” black airline)
Carriage Front Utility Channel
All lines connected
to the Regulators are
1/4" Clear Airlines
“IN” from
Pneumatic
Manifold
“OUT” to Air
Valve on
OverGlow™
Regulator for
OverGlow™
(Set to 90PSI)
Regulator for
Foam Rain
(See next page)
OverGlow™ Assembly
with Flow Control Needle Valve
ICS 2HP
Assembly
OverGlow™
Air Regulator
(Set to 90PSI)
Main Air Panel
(Equipment Room)
Needle
Valve
See Enlarged
OverGlow™
Injector
Flow Control
OverGlow™
Injector &
Rinse Valves
See Enlarged
All lines connected
to the Regulator are
1/4" Clear Airlines
3/4” Black Chemical
Solution Hoses (2)
(Field Supplied)
5/8” Clear Chemical
Solution Line
Air Manifold
